Weider PRO 345 - Fit Leg Lever Pads; Attach Leg Lever; Adjust Upper Front Leg Height

8
6

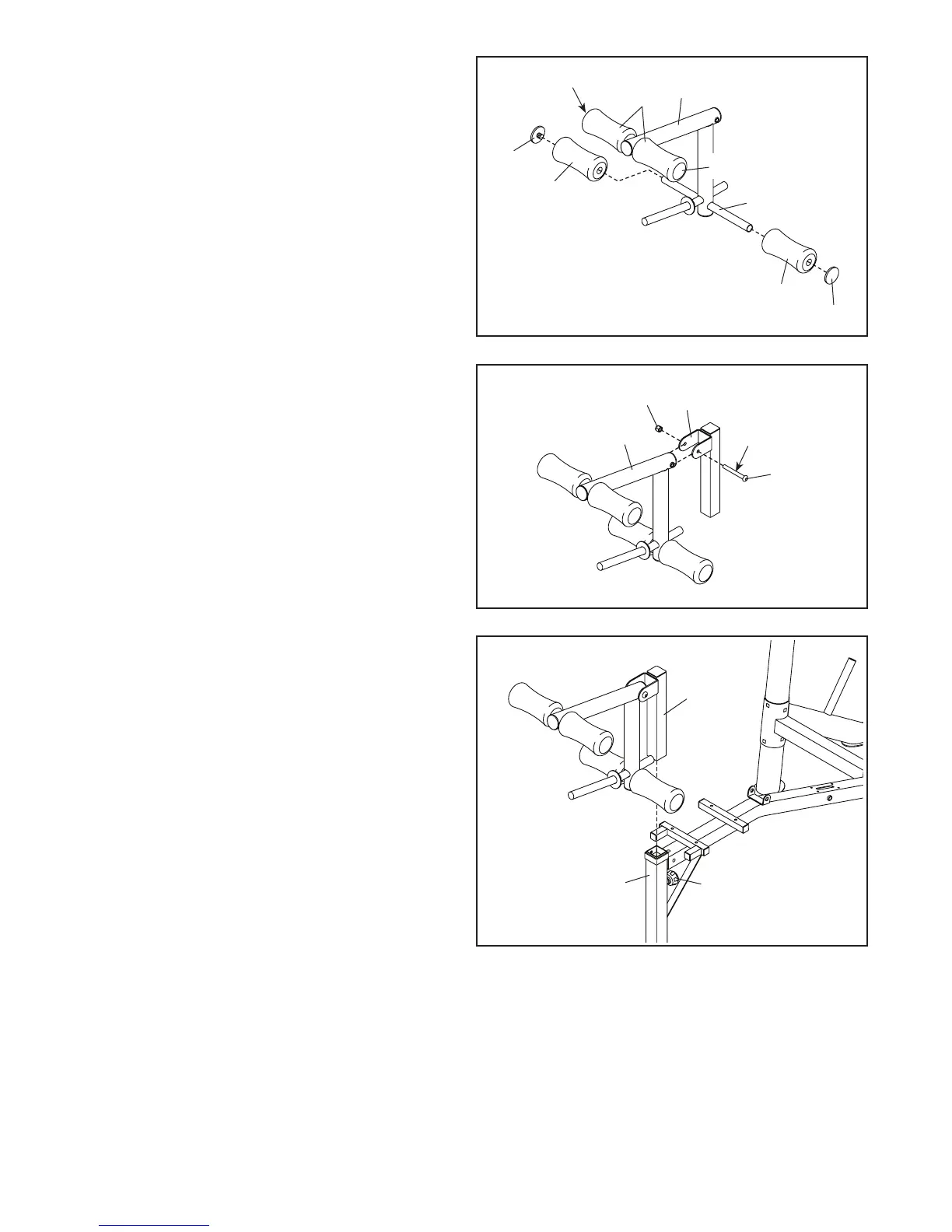

6. Insert a Pad Tube (10) into a hole in the Leg
Lever (4). Slide a Foam Pad (23) onto each side
of the Pad Tube.
Then, press a Foam Pad Cap (41) into each
Foam Pad (23).
Attach the other Pad Tube (not shown), Foam
Pads (23), and Foam Pad Caps (41) in the
same way.
33
32
31
7
7. Using a plastic bag to keep your fingers clean,
apply a generous amount of the included grease
to an M10 x 75mm Bolt (32).
Attach the Leg Lever (4) to the Upper Front Leg
(27) with the M10 x 75mm Bolt (32) and an M10
Locknut (33). Do not overtighten the Locknut;
the Leg Lever must pivot easily.
Grease
8. Loosen and pull the Adjustment Knob (31) out-
ward and insert the Upper Front Leg (27) into the
Lower Front Leg (8).
Move the Upper Front Leg (27) to the desired
position, release the Adjustment Knob (31) into
an adjustment hole in the Upper Front Leg, and
then tighten the Adjustment Knob.
8
27
27
4
8
10
41
41
41
41
4
23
23
23
