Weider PRO 4250 - Page 18

18

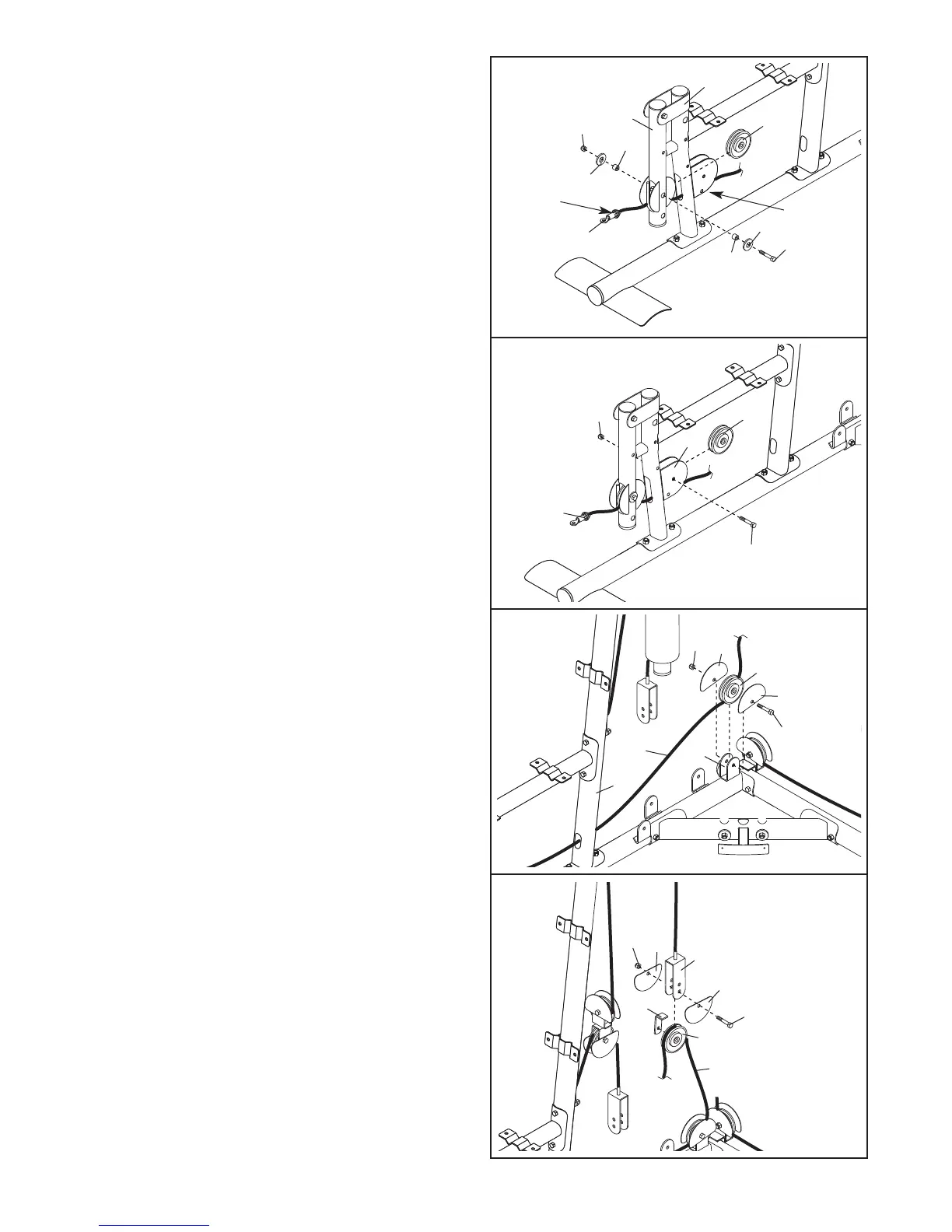

46. Locate the Ab Cable (107). Route the small ball
on the Cable through the Leg Lever (4) and the
R
ight Seat Frame (3). M
ake sure the Cable is
over the rod in the Seat Frame.
Attach a 90mm Pulley (63) inside the Leg Lever
(4), over the Ab Cable (107), with an M10 x
65mm Bolt (77), two M10 Washers (99), two M10
x 12mm Spacers (101), and an M10 Nylon
Locknut (90).
48. Route the Ab Cable (107) through the Right
Upright (2) and under a 90mm Pulley (63). Attach
the Pulley and two Half Finger Guards (66) to the
Right Base (1) with an M10 x 48mm Bolt (64) and
an M10 Nylon Locknut (90). Make sure the
Finger Guards are oriented as shown.
49. Wrap the Ab Cable (107) over a 90mm Pulley
(63). Attach the Pulley, a Cable Trap (68), and
two Half Finger Guards (66) to the lower hole in
the indicated “U”-bracket (50) with an M10 x
48mm Bolt (64) and an M10 Nylon Locknut (90).
Make sure the Cable Trap and Finger Guards
are oriented as shown.
47. Attach a 90mm Pulley (63) inside the Right Seat
Frame (3), over the Ab Cable (107), with an M10
x 43mm Bolt (80) and an M10 Nylon Locknut
(90).
46
47
48
49
63
99
99
77
90
4
3
101
107
L
arge
Ball
Rod
101
3
107
107
63
80
90
64
90
66
66
1
2
63
107
50
63
66
66
90
64
68
