Weider Pro 4900 Weight Exerciser - Seat Assembly

21

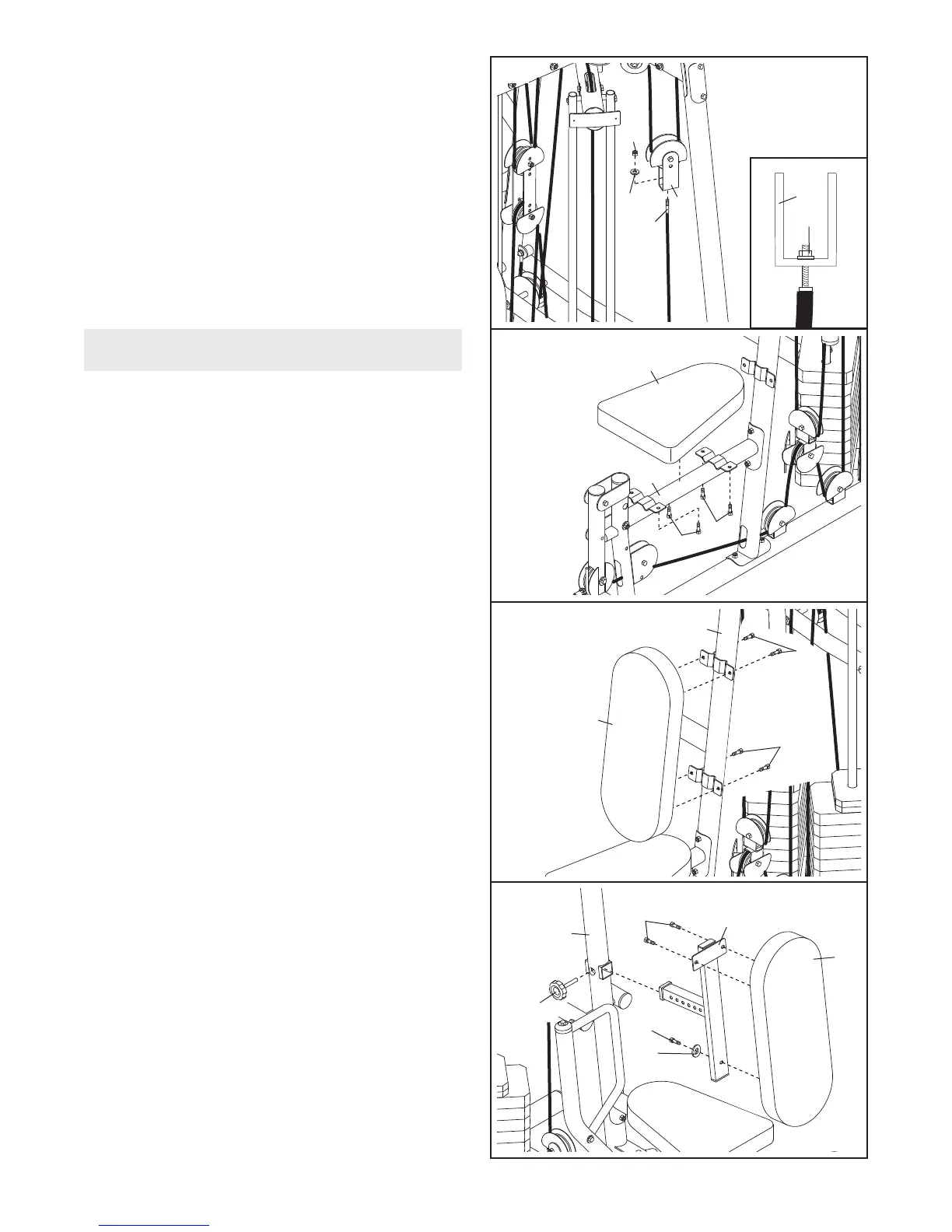

61. Attach the end of the Leg Press Cable (69) to the
“U”-bracket (50) with an M8 Washer (117) and an
M
8 Nylon Locknut (115). S
ee the inset drawing.
Do not completely tighten the Locknut; it
s
hould be tightened so that only two threads
of the Cable show past the Locknut.
63. Attach the Right Backrest (28) to the Right
Upright (4) with four M6 x 16mm Screws (85).
64. Attach the Left Backrest (33) to the Backrest
Frame (27) with two M6 x 16mm Screws (85), an
M6 x 35mm Screw (87), and an M6 Washer
(132).
Slide the Backrest Frame (27) into the Left
Upright (5). Engage the Knob (121) into the
Upright and Backrest Frame, and turn it clockwise
until it is tight.
62. Attach the Seat (29) with the serial number decal
on the bottom to the Right Seat Frame (9) with
four M6 x 16mm Screws (85).
Repeat this step with the other Seat (29) and
the Left Seat Frame (not shown).
61
69
50
29
85
9
85
115
1
17
62
63
64
4
85
28
33
85
85
5
27
121
87
132
50
115
Seat Assembly
