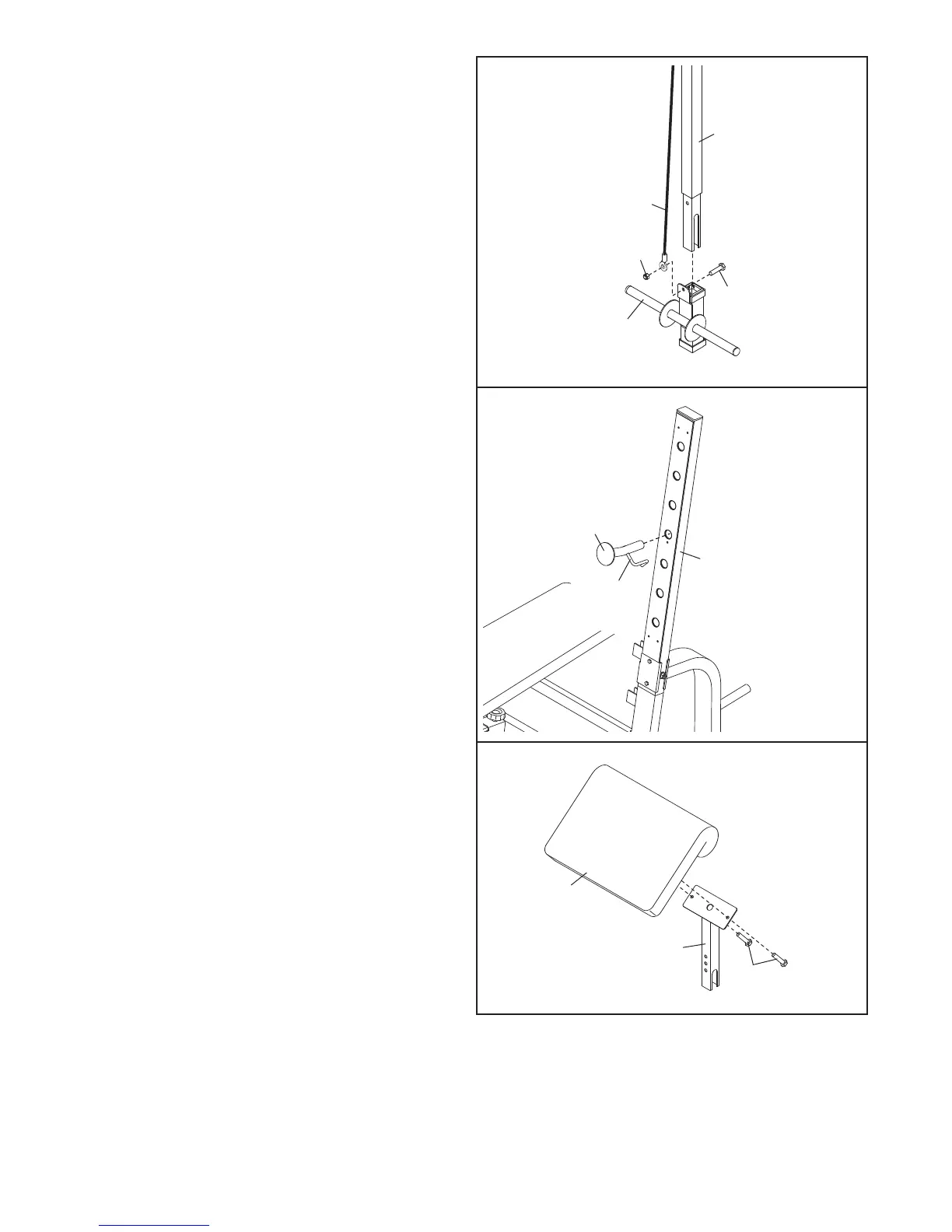

17. Attach the Curl Pad (20) to the Curl Post (13)
with two M6 x 16mm Screws (41).
18. Make sure that all parts are properly tight
-
ened before you use the weight bench. The
use of all remaining parts will be explained
in ADJUSTMENTS, starting on the next
page.
20
13
41
1
5
16
73
14
65
39
31
29
58
16. Insert a Weight Rest (39) into one of the holes
in the Left Upright (31) and engage the locking
bar around the Left Upright.
Repeat this step with the other Weight Rest
(not shown) and the Right Upright (not
shown).
15. Insert an M10 x 20mm Bolt (65) through the
Weight Carriage (29). Slide the Weight Carriage
o
nto the Lat Tower (14). Next, attach the Cable
(73) to the Bolt with an M10 Nylon Locknut
(
58).
Locking
Bar
To Next Page
