10

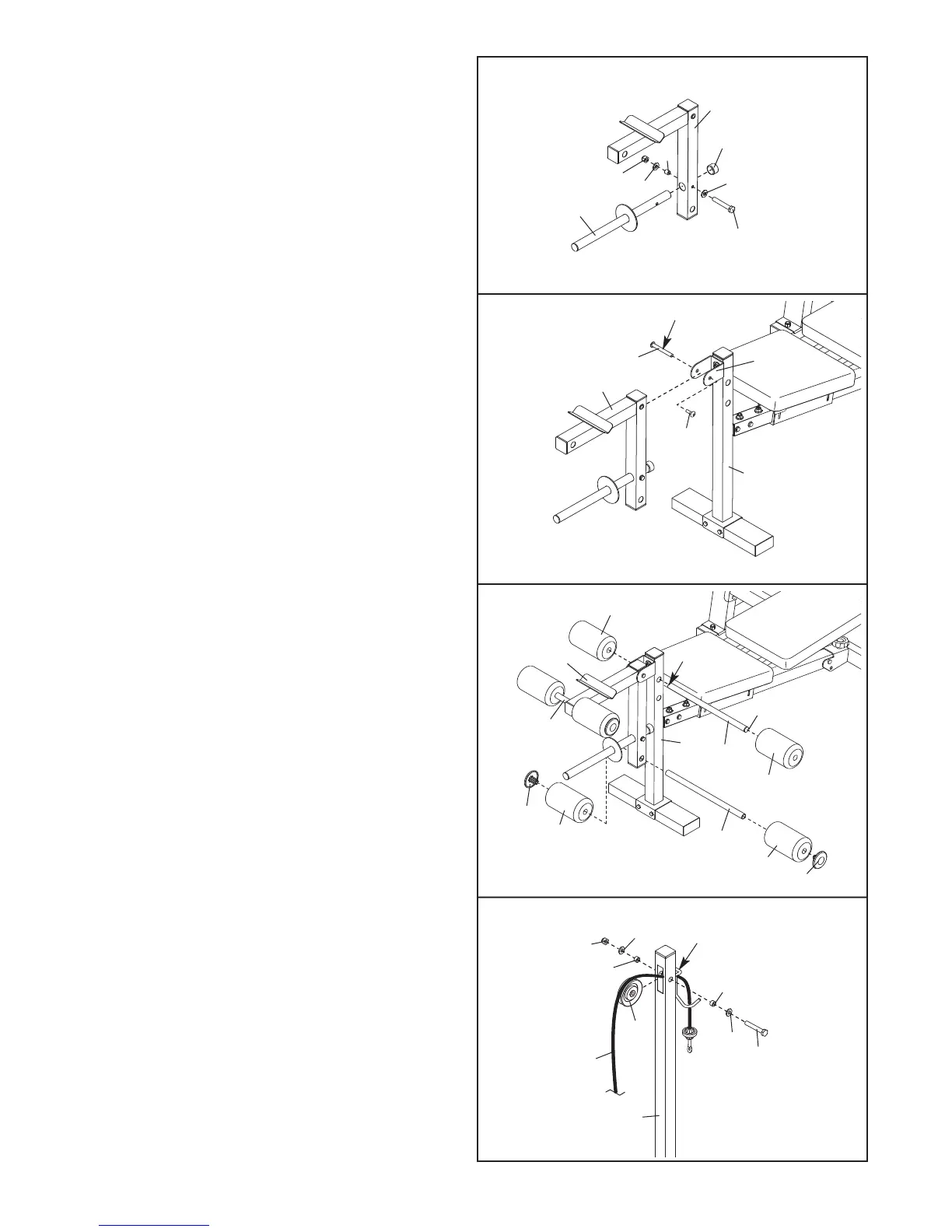

11. Attach the Weight Tube (19) to the Leg Lever
(18) with an M8 x 58mm Bolt (46), two M8
W
ashers (50), a 12mm x 10mm Spacer (61),
and an M8 Nylon Locknut (49).
Press the 25mm Round Outer Cap (62) onto
the end of the Weight Tube (19).
12. Apply grease to the barrel of an M10 x 57mm
Bolt Set (64). Attach the Leg Lever (18) to the
Front Leg (12) with the Bolt Set. Make sure the
barrel of the Bolt Set passes completely
through the bracket. Do not overtighten the
Bolt Set; the Leg Lever must pivot easily.
11
23
23
23
18
18
12
24
71
71
12
24
24
25
12
23
25
50
1
9
18
6
2
46
6
1
50
49
64
64
Grease
Bracket
13. Locate the Pad Tube (24) that has a 19mm
Round Inner Cap (71) in each end. Insert the
Pad Tube into either hole in the Front Leg (12).
Slide two Foam Pads (23) onto the Pad Tube.
Insert a Pad Tube (24) into one of the holes in
the Leg Lever (18). Slide two Foam Pads (23)
onto the Pad Tube, and press a Pad Cap (25)
into the end of each Foam Pad. Repeat with
the other Pad Tube (24).
14. Route the Cable (73) under the indicated weld-
ed rod, through the Lat Tower (14), and over
the the Pulley (69).
Attach the Pulley to the Lat
T
ower with an M10 x 60mm Bolt (68), two M10
Washers (43), two 15mm x 10mm Spacers
(70), and an M10 Nylon Locknut (58). Do not
overtighten the Nylon Locknut; the Pulley
must turn easily.
13
14
69
73
70
70
43
43
58
68
Welded Rod
14
To Next Page
