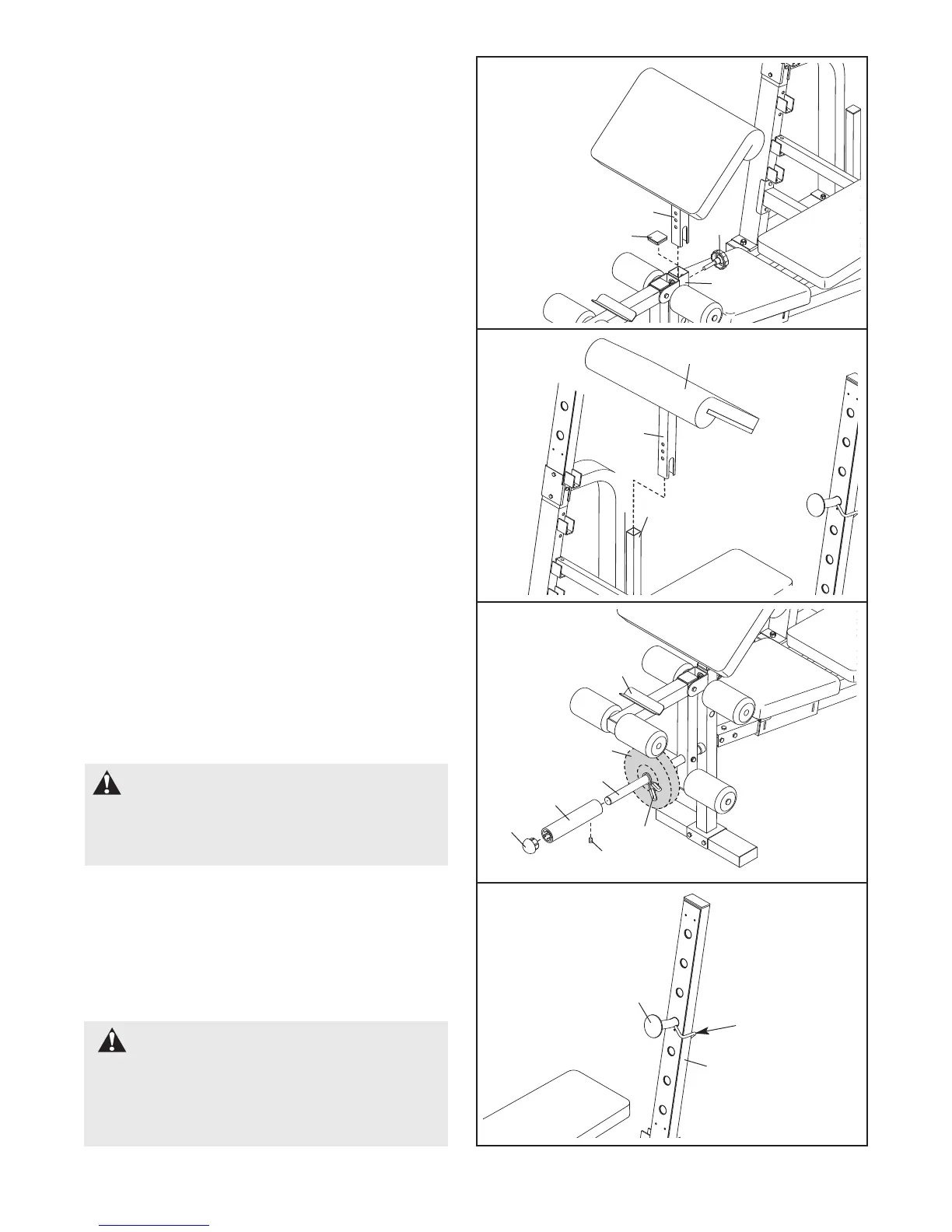

ADDING WEIGHT TO THE LEG LEVER
To use the Leg Lever (18), slide the desired amount
of weight (not included) onto the Weight Tube (19).
Secure your weights with a Small Spring Clip (51).
To use Olympic weights, press a 48mm Round
Inner Cap (38) into the Olympic Adapter (47).
Attach the Olympic Adapter to the Weight Tube (19)
with the M8 x 10mm Set Screw (60).
Make sure
the Set Screw is on the bottom of the Adapter.
Secure your weights with the Large Spring Clip (not
shown).
WARNING: Do not place more
than 150 lbs. (68 kg) on the Weight Tube (19).
Secure your weights with Spring Clips (51, 52
not shown).
5
6
2
ATTACHING THE CURL POST
Remove the 45mm Square Inner Cap (34) from the
Front Leg (12). Insert the Curl Post (13) into the
Front Leg and align the holes in the Front Leg and
the Curl Post. Secure the Curl Post with the
Adjustment Knob (56). Fully tighten the
A
djustment Knob.
STORING THE CURL POST
When performing exercises that do not require the
Curl Pad (20), remove the Curl Post (13) from the
Front Leg (12, see ATTACHING THE CURL POST
above) and set it over the storage tube on the Right
Stabilizer (2). Press the 45mm Square Inner Cap
(not shown) into the Front Leg (not shown).
13
20
34
12
13
51
19
18
Weight
WEIGHT RESTS
To use a barbell (not included) with the weight
bench, first move the W
eight Rests (39) to the cor
-
rect height for the exercise to be performed. Engage
the locking bars around the Uprights (28, 31).
WARNING: Always place both
W
eight Rests (39) at the same height. Make
sure the locking bars are securely wrapped
around the Uprights (28, 31) before setting a
barbell on them.
31
39
Locking
Bar
60
47
38
