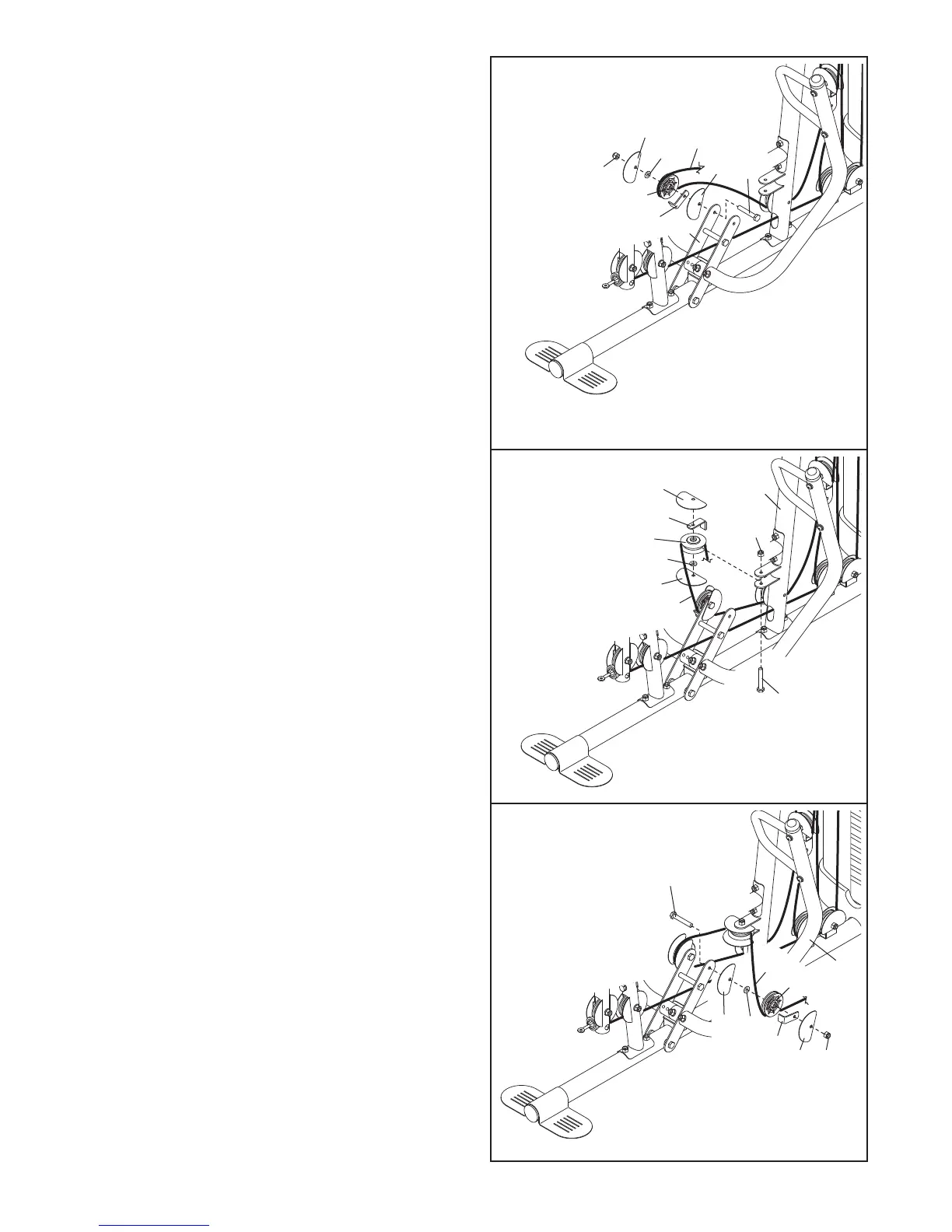

36. Wrap the Leg Lever Cable (51) under a 90mm
Pulley (48). Attach the Pulley to the Right Press
Arm (16) with an M10 x 50mm Bolt (97), two Half
G
uards (55), a Cable Trap (56), an M10 Washer
(80), and an M10 Nylon Locknut (77). Make sure
the Cable Trap and Half Guards are oriented
as shown.
37. Wrap the Leg Lever Cable (51) around a “V”-pul-
ley (47). Attach the Pulley to the Upright (2) with
an M10 x 70mm Bolt (113), two Half Guards (55),
an M10 Washer (80), a Long Cable Trap (57),
and an M10 Nylon Locknut (77). Make sure the
Cable Trap and Half Guards are oriented as
shown.
38. Wrap the Leg Lever Cable (51) under a 90mm
Pulley (48). Attach the Pulley to the Left Press
Arm (15) with an M10 x 50mm Bolt (97), two Half
Guards (55), an M10 Washer (80), a Cable Trap
(56) and an M10 Nylon Locknut (77). Make sure
the Cable Trap and Half Guards are oriented
as shown.
