28

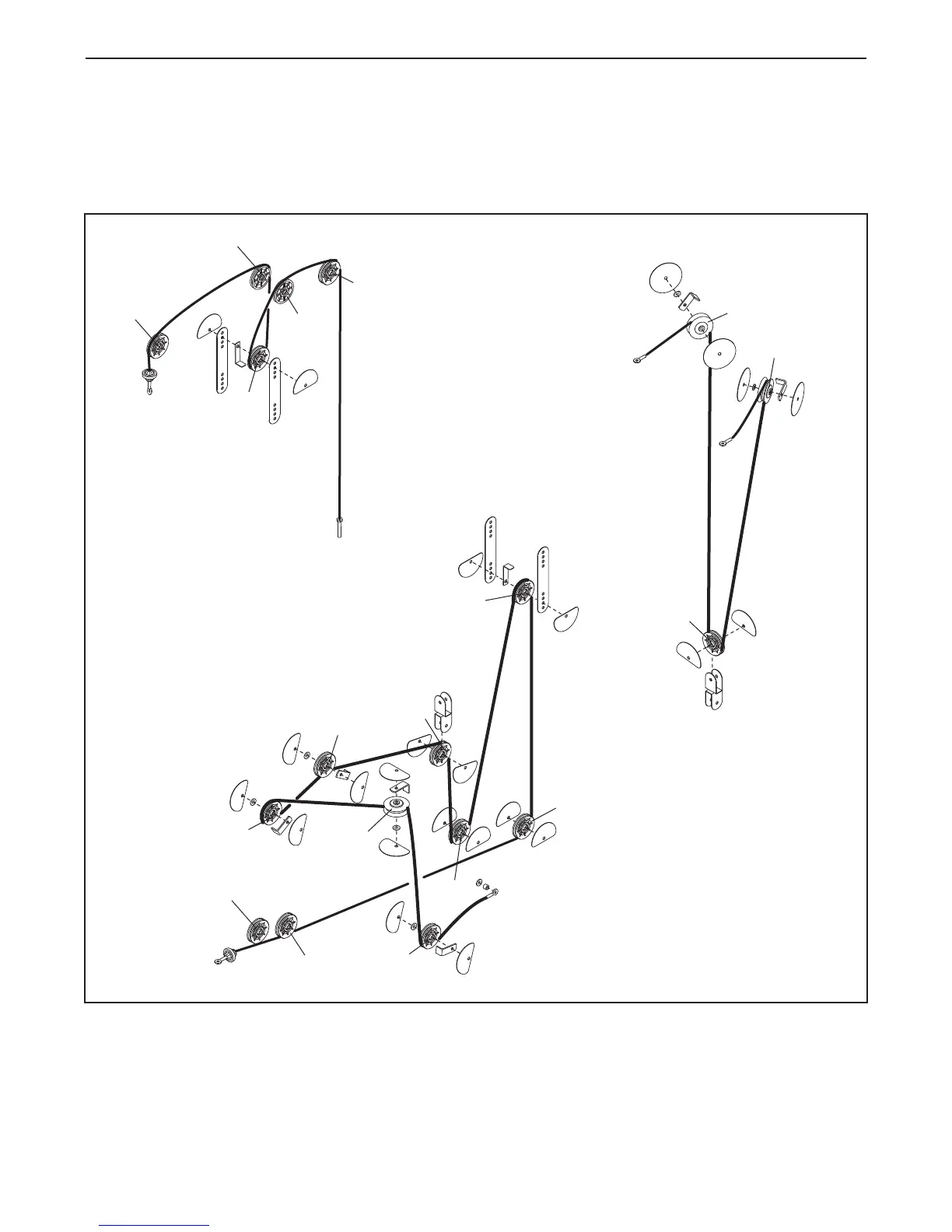

CABLE DIAGRAM
T
he cable diagram shows the proper routing of the cables (49, 50, 51). Use the diagram to make sure that the
cable and the cable traps have been assembled correctly. If the cable has not been correctly routed, the weight
system will not function properly and damage may occur. The numbers show the correct route for the cable.
Make sure that the cable traps do not touch or bind the cable.
10
6
5
7
8
9
1
2
3
4
Lat Cable (49)
Length 140" / 355cm
Butterfly Cable (50)
Length 114" / 289cm
Leg Lever Cable (51)
Length 221" / 563cm
1
1
2
3
2
3
4
5
