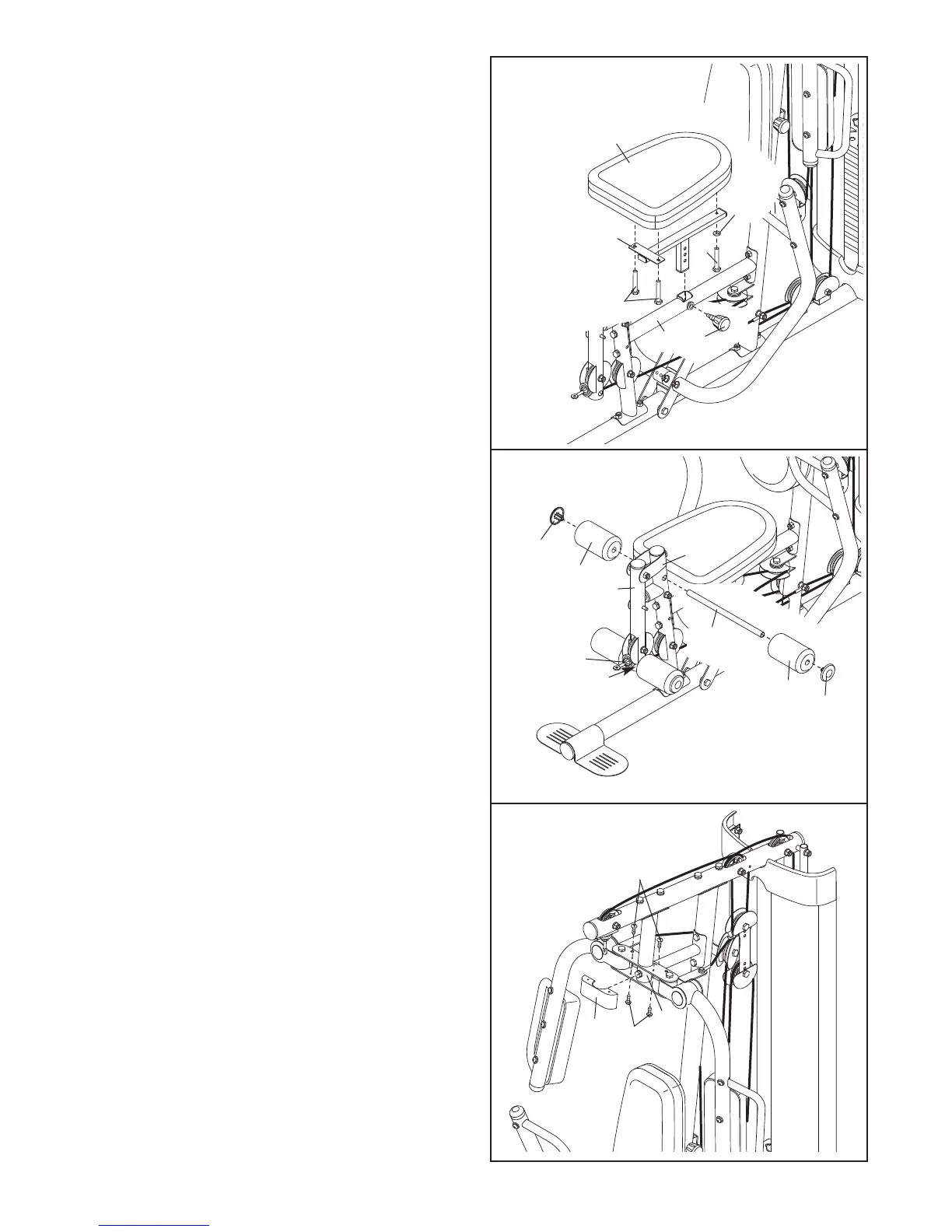

42. Attach the Seat (32) to the Seat Frame (8) with
two M6 x 16mm Screws (88), an M6 x 32mm
Screw (89), and an M6 Washer (114).
Insert the Seat Frame (8) into the Frame (9).
T
ighten the Seat Adjustment Knob (52) into the
Frame and the Seat Frame. Make sure the
Adjustment Knob passes through one of the
holes in the Seat Frame.
43. Insert a Pad Tube (13) into the indicated hole in
the Front Leg (10). Slide a Foam Pad (36) onto
each end of the Pad Tube.
Press a Pad Cap (37) into each Foam Pad (36).
Repeat this step for the other Pad Tube (13)
and the Leg Lever (12). Note: Lift the Leg
Lever Cable (51) when inserting a Pad Tube
into the hole in the bottom of the Leg Lever.
44. Attach the Butterfly Cover (30) to the Butterfly
Frame (5) with four M4 x 12mm Self-tapping
Screws (102).
