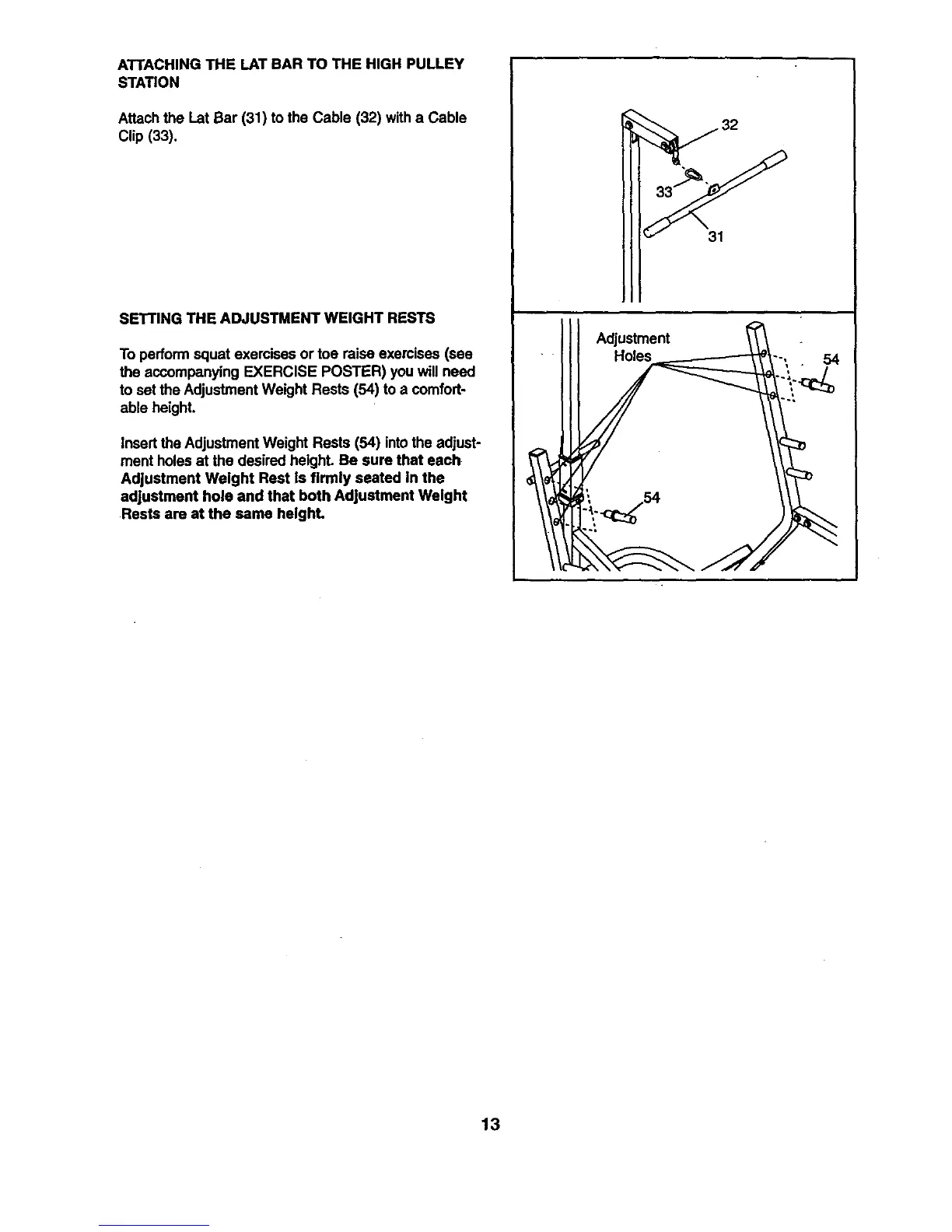

ATTACHING THE LAT BAR TO THE HIGH PULLEY
STATION
Attach the Lat Bar (31) to the Cable (32) with a Cable
Clip (33),
SE'I-FING THE ADJUSTMENT WEIGHT RESTS
To perform squat exercises or toe raise exercises (see
the accompanying EXERCISE POSTER) you will need
to set the Adjustment Weight Rests (54) to a comfort-
able height.
Insert the Adjustment Weight Rests (54) intothe adjust-
ment holes at the desired helghL Be sure that each
Adjustment Weight Rest Is firmly seated In the
adjustment hole and that both Adjustment Weight
Rests are at the same helghL
Adjustment
Holes
<_54
31
54
13
