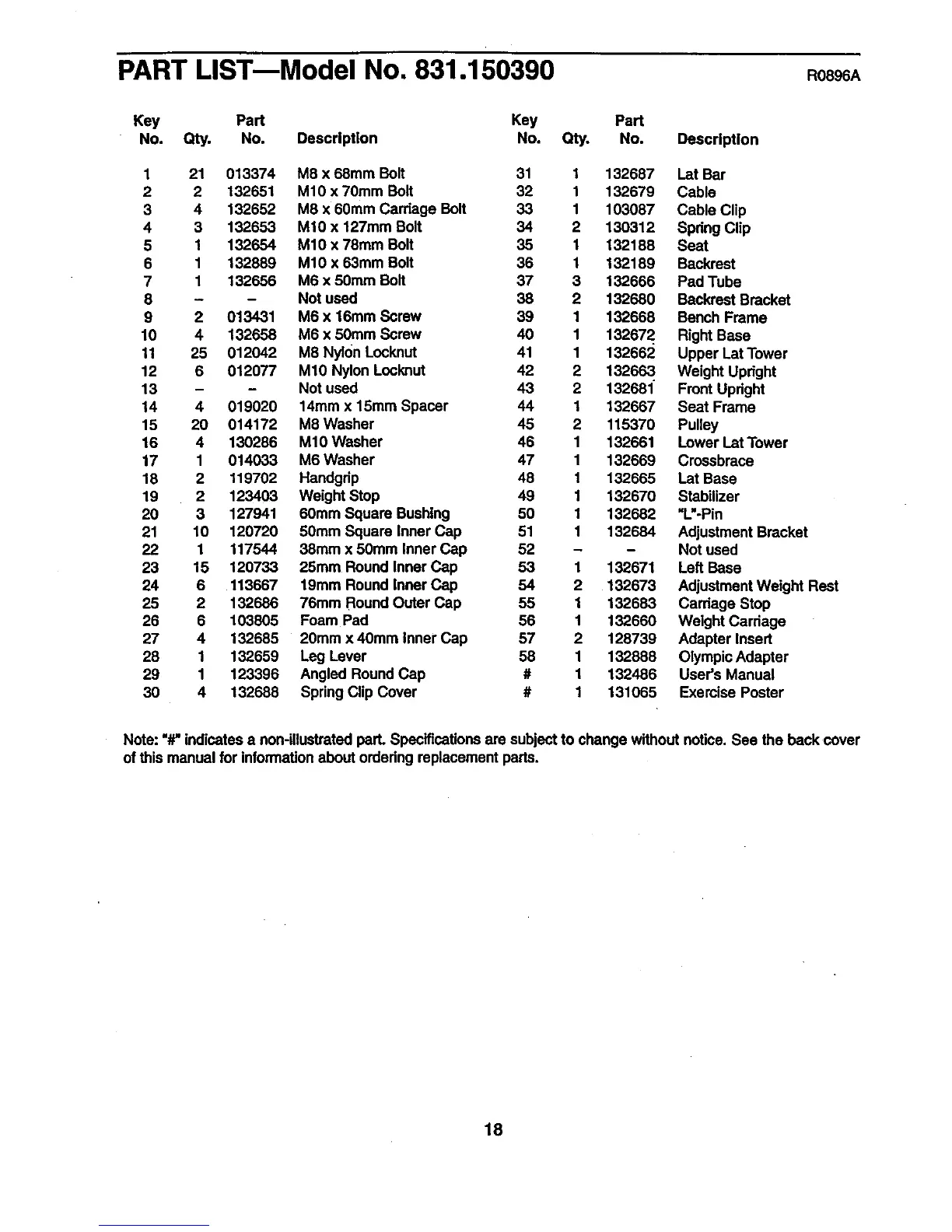

PART LISTmModel No. 831.150390 Ro896A
Key Part Key Part
No. Qty. No. Description No. Qty. No. Description
1 21 013374 M8 x 68mm Bolt 31 1 132687 Lat Bar
2 2 132651 M10 x 70mm Bolt 32 1 132679 Cable
3 4 132652 M8 x 60mm Carriage Bolt 33 1 103087 Cable Clip
4 3 132653 M10 x 127mm Bolt 34 2 130312 Spdng Clip
5 1 132654 M10 x 78mrc Bolt 35 1 132188 Seat
6 1 132889 M10 x 63mm Bolt 36 1 132189 Backrest
7 1 132656 M6 x 50tore Bolt 37 3 132666 Pad Tube
8 - - Not used 38 2 132680 Backrest Bracket
9 2 013431 M6 x 16mm Screw 39 1 132668 Bench Frame
10 4 132658 M6 x 50mm Screw 40 1 132672 Right Base
11 25 012042 M8 Nylon Locknut 41 1 132662 Upper Lat Tower
12 6 012077 M10 Nylon Locknut 42 2 132663 Weight Upright
13 - - Not used 43 2 132681 Front Upright
14 4 019020 14mm x 15rcm Spacer 44 1 132667 Seat Frame
15 20 014172 M8 Washer 45 2 115370 Pulley
16 4 130286 M10 Washer 46 1 132661 Lower tat Tower
17 1 014033 M6 Washer 47 1 132669 Crossbrace
18 2 119702 Handgrip 48 1 132665 Lat Base
19 2 123403 Weight Stop 49 1 132670 Stabilizer
20 3 127941 60mm Square Bushing 50 1 132682 "L"-Pin
21 10 120720 50mm Square Inner Cap 51 1 132684 Adjustment Bracket
22 1 117544 38rcm x 50mm Inner Cap 52 - Not used
23 15 120733 25mm Round Inner Cap 53 1 132671 Left Base
24 6 113667 19mm Round Inner Cap 54 2 132673 Adjustment Weight Rest
25 2 132686 76mm Round Outer Cap 55 1 132683 Cardage Stop
26 6 103805 Foam Pad 56 1 132660 Weight Carriage
27 4 132685 20mm x 40mm Inner Cap 57 2 128739 Adapter Insert
28 1 132659 Leg Lever 58 1 132688 Olympic Adapter
29 1 123396 Angled Round Cap # 1 132486 User's Manual
30 4 132688 Spring Clip Cover # 1 131065 Exercise Poster
Note: "_ indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
