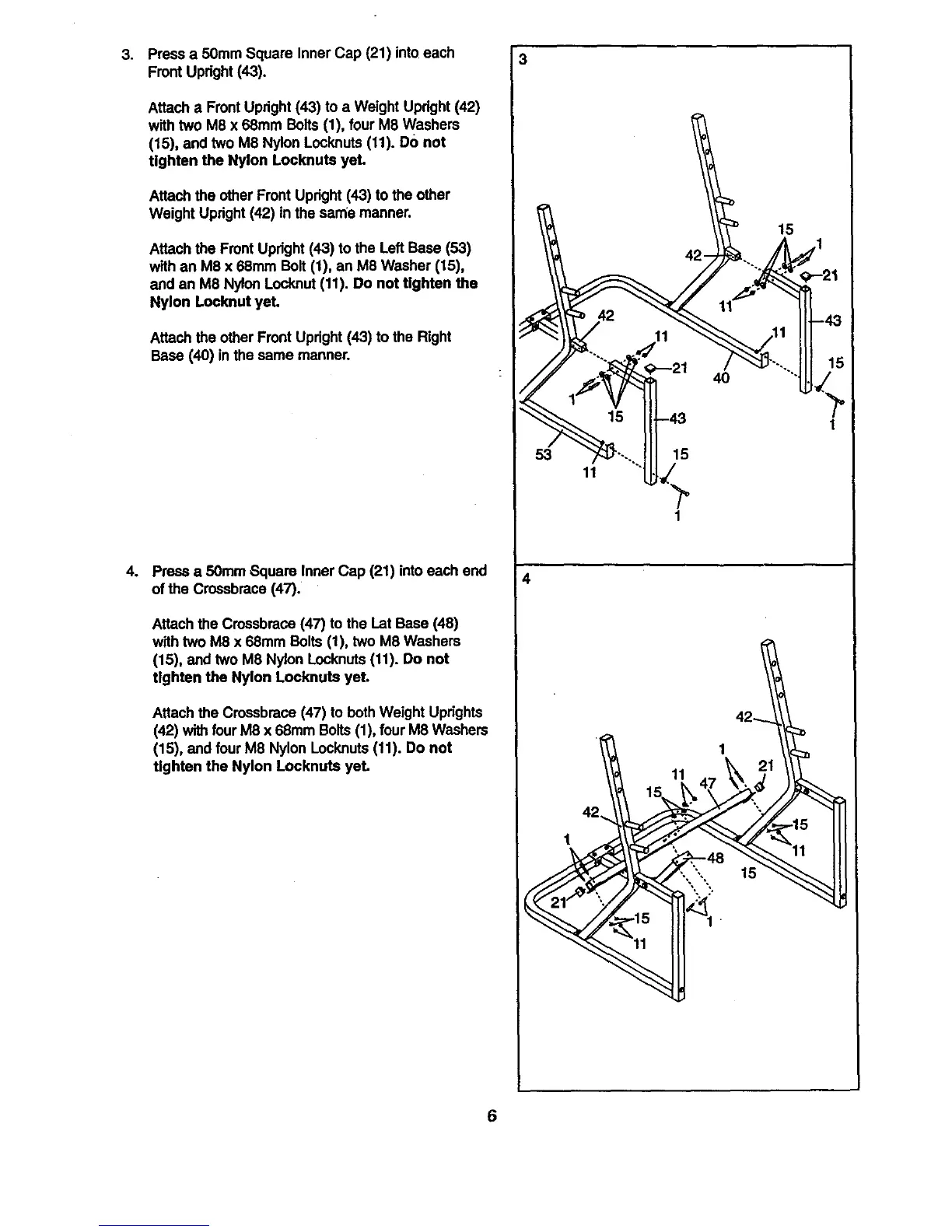

Weider PRO 635 - Page 6

= Press a 50mm Square Inner Cap (21) into each
Front Upright (43).
Attach a Front Upright (43) to a Weight Upright (42)
with two M8 x 68mm Bolts (1), four M8 Washers
(15), and two M8 Nylon Locknuts (11). DO not
tighten the Nylon Locknuts yeL
Attach the other Front Upright (43) to the other
Weight Upright (42) in the same manner.
Attach the Front Upright (43) to the Left Base (53)
with an M8 x 68mm Bolt (1), an M8 Washer (15),
and an M8 Nylon Locknut (11)• Do not tighten the
Nylon Locknut yet.
Attach the other Front Updght (43) to the Right
Bass (40) in the same manner.
4. Press a 50mm Square Inner Cap (21) into each end
of the Crossbrace (47).
Attach the Crossbrace (47) to the Lat Base (48)
with two M8 x 68mm Bolts (1), two M8 Washers
(15), and two M8 Nylon Locknuts (11). Do not
tighten the Nylon Locknuts yet.
Attach the Crossbrace (47) to both Weight Uprights
(42) with four M8 x 68ram Bolts(1), four M8 Washers
(15), and four M8 Nylon Locknuts (11)• Do not
tighten the Nylon Locknuts yet.
3
15
42-
15
53 15
11
4
• '•%
6
