17

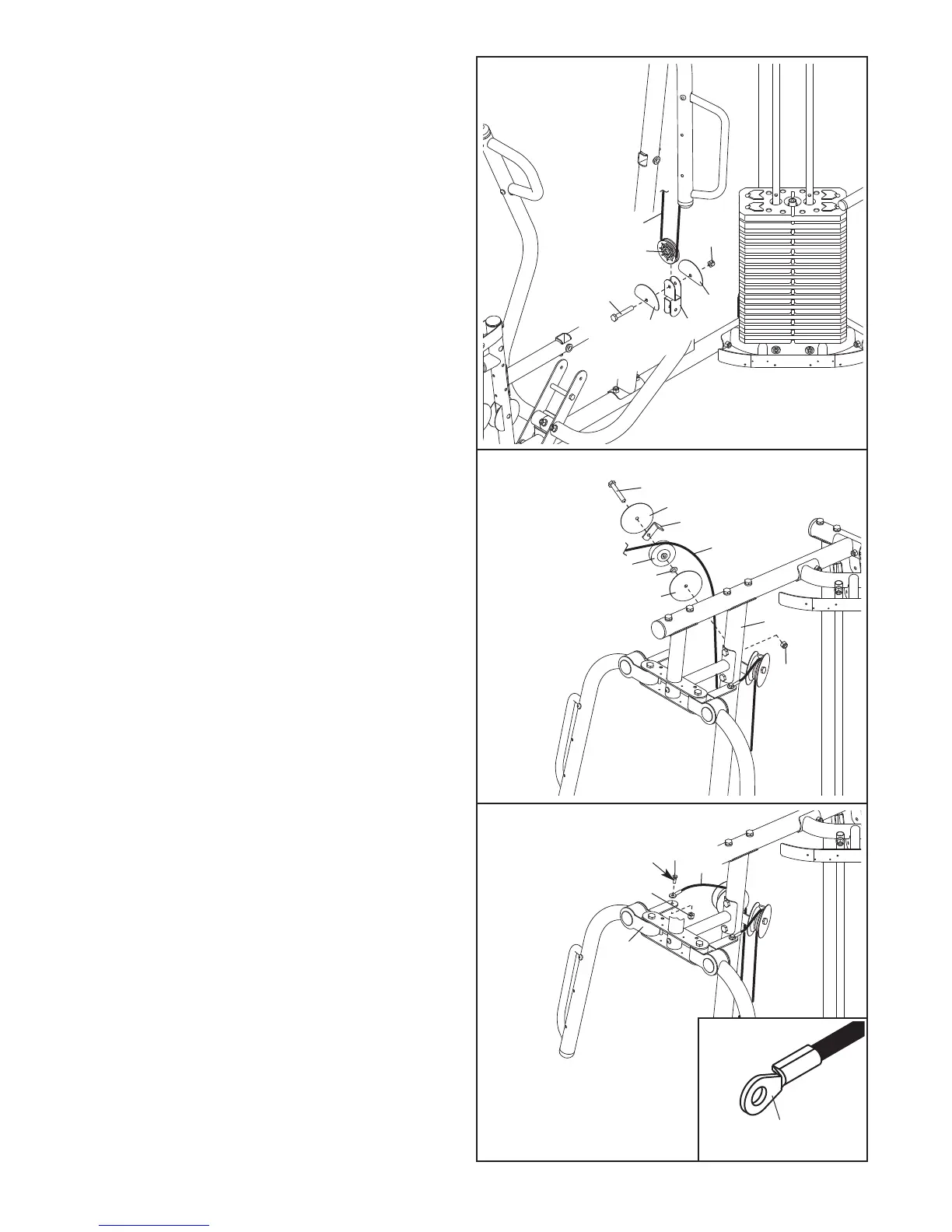

27. Wrap the Butterfly Cable (50) under a 90mm
P
ulley (48). Attach the Pulley and two Half
Guards (55) to the Double “U”-bracket (61) with
an M10 x 50mm Bolt (97) and an M10 Nylon
Locknut (77). Make sure the Half Guards are
oriented as shown.
28. Wrap the Butterfly Cable (50) over a “V”-pulley
(47). Attach the “V”-pulley, a Long Cable Trap
(57), an M10 Washer (80), and two Guards (54)
to the Right Upright (2) with an M10 x 63mm
Bolt (79) and an M10 Nylon Locknut (77).
29. Grease an M8 x 22mm Shoulder Bolt (90).
Attach the Butterfly Cable (50) to the Right
Butterfly Bracket (29) with the Shoulder Bolt
and an M8 Nylon Locknut (78). Make sure the
flat edge of the Cable is against the Butterfly
Bracket.
2
7
28
54
54
77
2
79
50
48
97
77
61
55
55
57
50
80
47
29
90
Grease
50
78
29
Flat Edge
