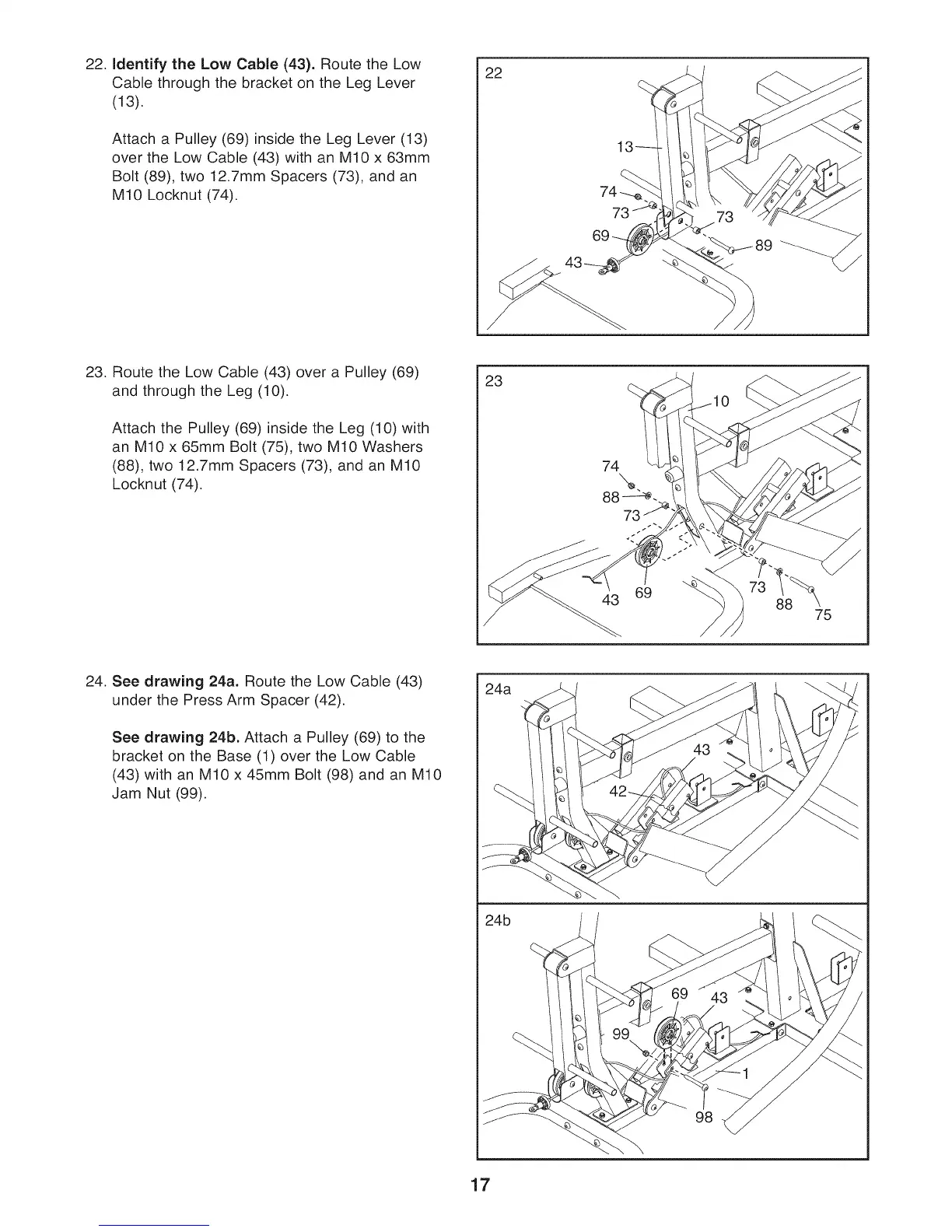

22. identify the Low Cable (43). Route the Low
Cable through the bracket on the Leg Lever
(13).
Attach a Pulley (69) inside the Leg Lever (13)
over the Low Cable (43) with an M10 x 63mm
Bolt (89), two 12.7mm Spacers (73), and an
M10 Locknut (74).
22
23. Route the Low Cable (43) over a Pulley (69)
and through the Leg (10).
Attach the Pulley (69) inside the Leg (10) with
an M10 x 65mm Bolt (75), two M10 Washers
(88), two 12,7mm Spacers (73), and an M10
Locknut (74).
23
69
24. See drawing 24a. Route the Low Cable (43)
under the Press Arm Spacer (42).
See drawing 24b. Attach a Pulley (69) to the
bracket on the Base (1) over the Low Cable
(43) with an M10 x 45mm Bolt (98) and an M10
Jam Nut (99).
24a
24b
98
17
