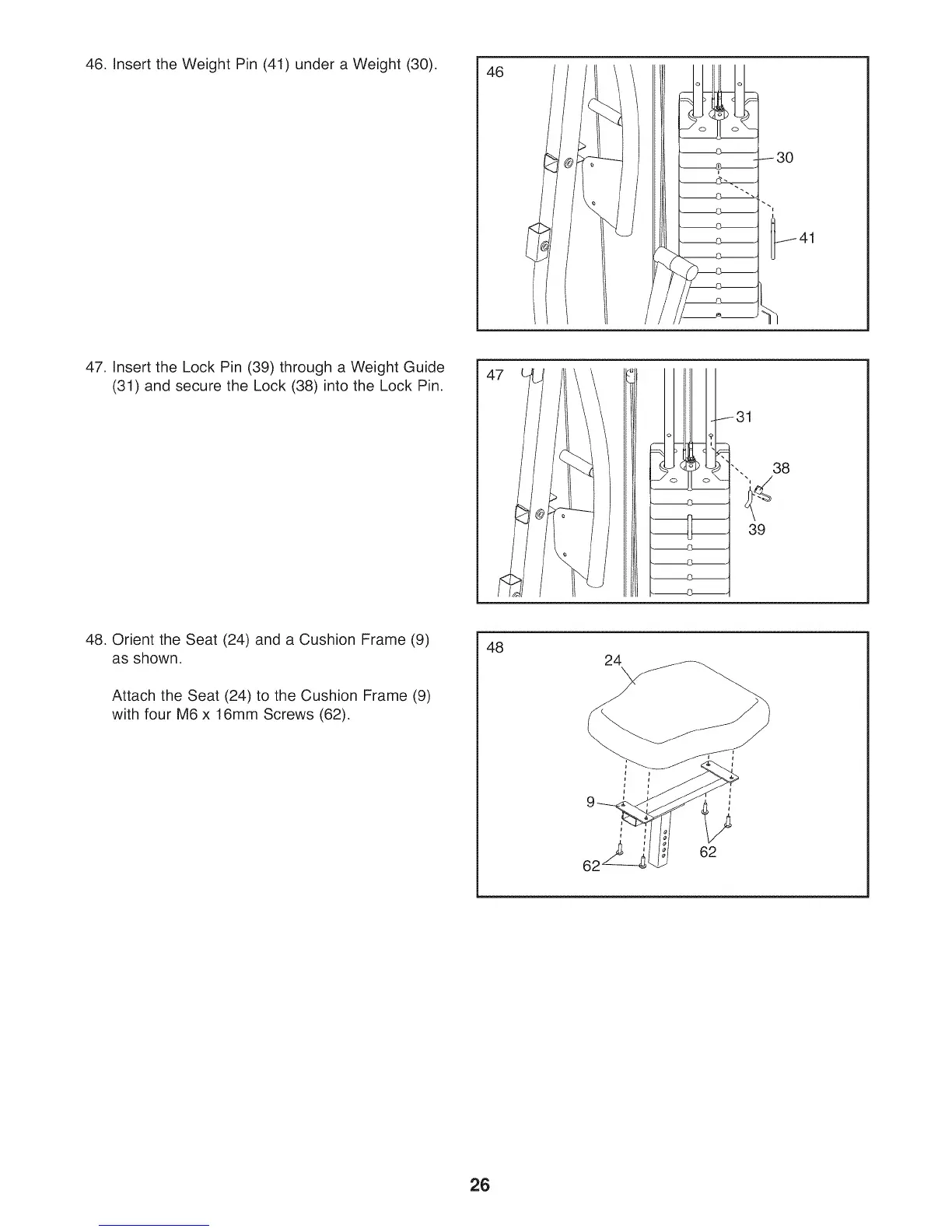

46. Insert the Weight Pin (41) under a Weight (30).
46
47. Insert the Lock Pin (39) through a Weight Guide
(31) and secure the Lock (38) into the Lock Pin.
48. Orient the Seat (24) and a Cushion Frame (9)
as shown.
Attach the Seat (24) to the Cushion Frame (9)
with four M6 x 16mm Screws (62).
48
24
62
26
