Weider Pro 8900 - Page 25

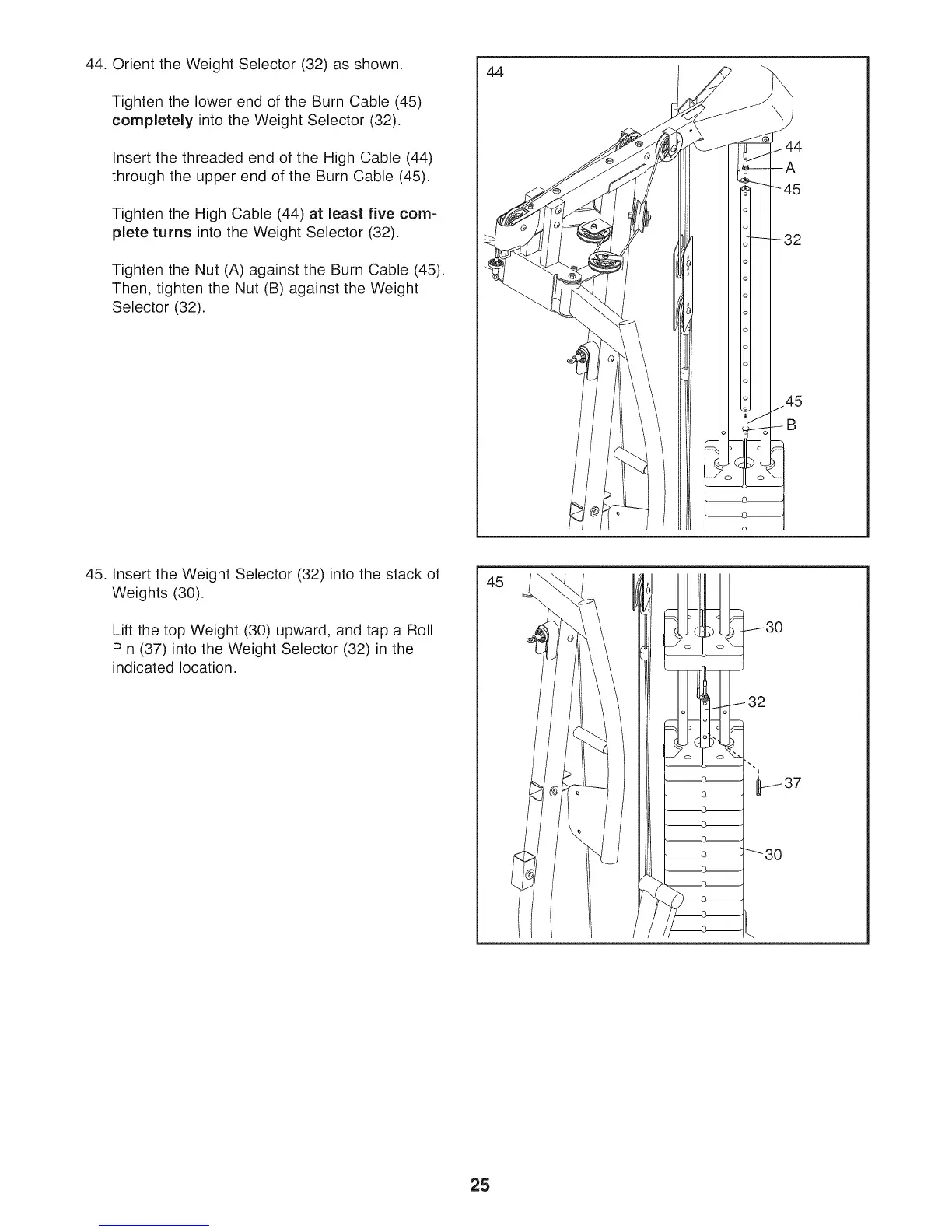

44. Orient the Weight Selector (32) as shown.
Tighten the lower end of the Burn Cable (45)
completely into the Weight Selector (32).
Insert the threaded end of the High Cable (44)
through the upper end of the Burn Cable (45).
Tighten the High Cable (44) at least five com-
plete turns into the Weight Selector (32).
Tighten the Nut (A) against the Burn Cable (45).
Then, tighten the Nut (B) against the Weight
Selector (32).
44
B
45. Insert the Weight Selector (32) into the stack of
Weights (30).
Lift the top Weight (30) upward, and tap a Roll
Pin (37) into the Weight Selector (32) in the
indicated location.
45
25
