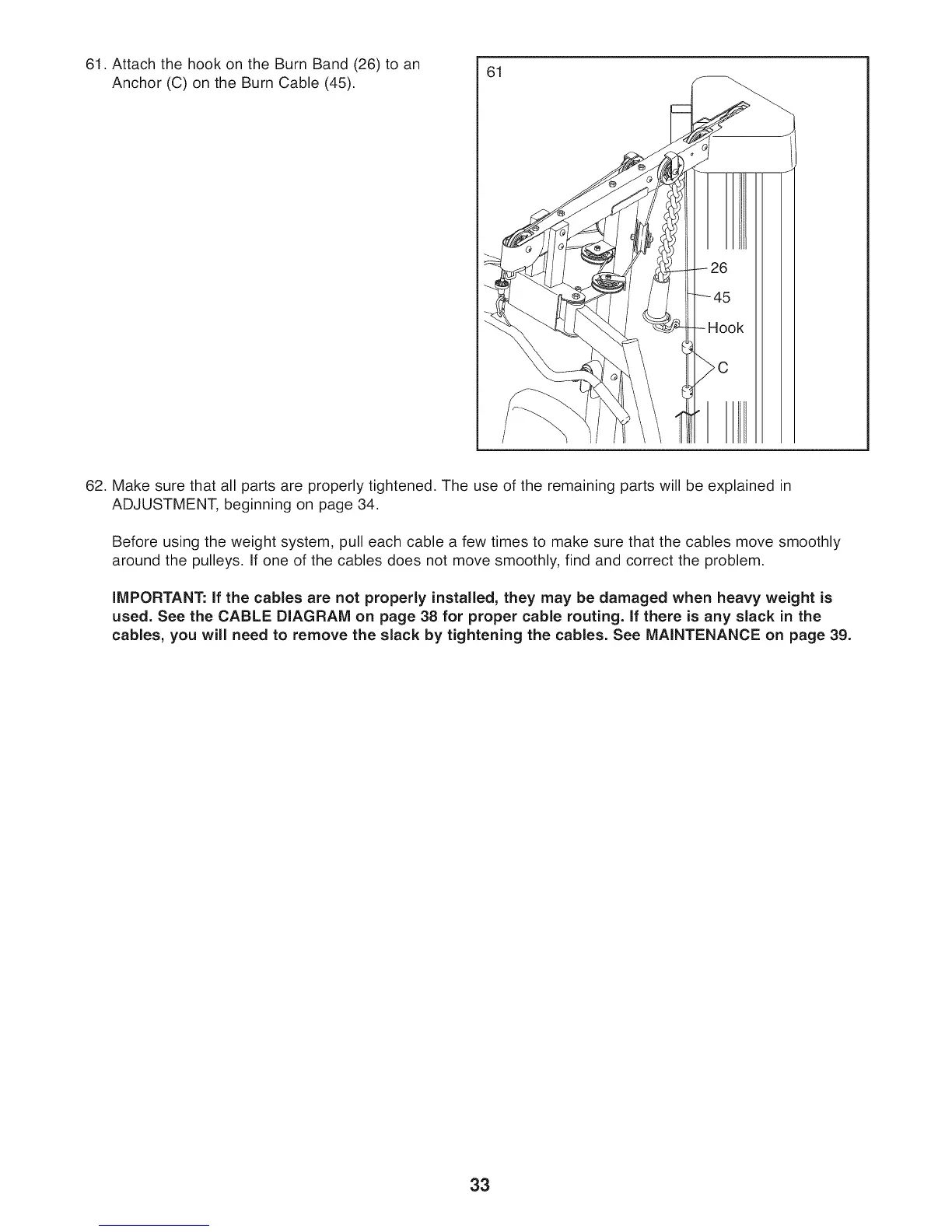

61. Attach the hook on the Burn Band (26) to an
Anchor (C) on the Burn Cable (45).
61
62. Make sure that all parts are properly tightened. The use of the remaining parts will be explained in
ADJUSTMENT, beginning on page 34.
Before using the weight system, pull each cable a few times to make sure that the cables move smoothly
around the pulleys. If one of the cables does not move smoothly, find and correct the problem.
IMPORTANT: If the cables are not properly installed, they may be damaged when heavy weight is
used. See the CABLE DIAGRAM on page 38 for proper cable routing. If there is any slack in the
cables, you will need to remove the slack by tightening the cables. See MAINTENANCE on page 39.
33
