Note: The assembly process is divided into four stages: 1) frame assem-
bly
, 2) arm assembly
, 3) cable assembly
, 4) seat assembly. The hardware
for each stage is packaged separately. WAIT UNTIL YOU BEGIN EACH
ASSEMBLY STAGE TO OPEN THE PARTS BAG LABELLED FOR THAT
ASSEMBLY STAGE.
T

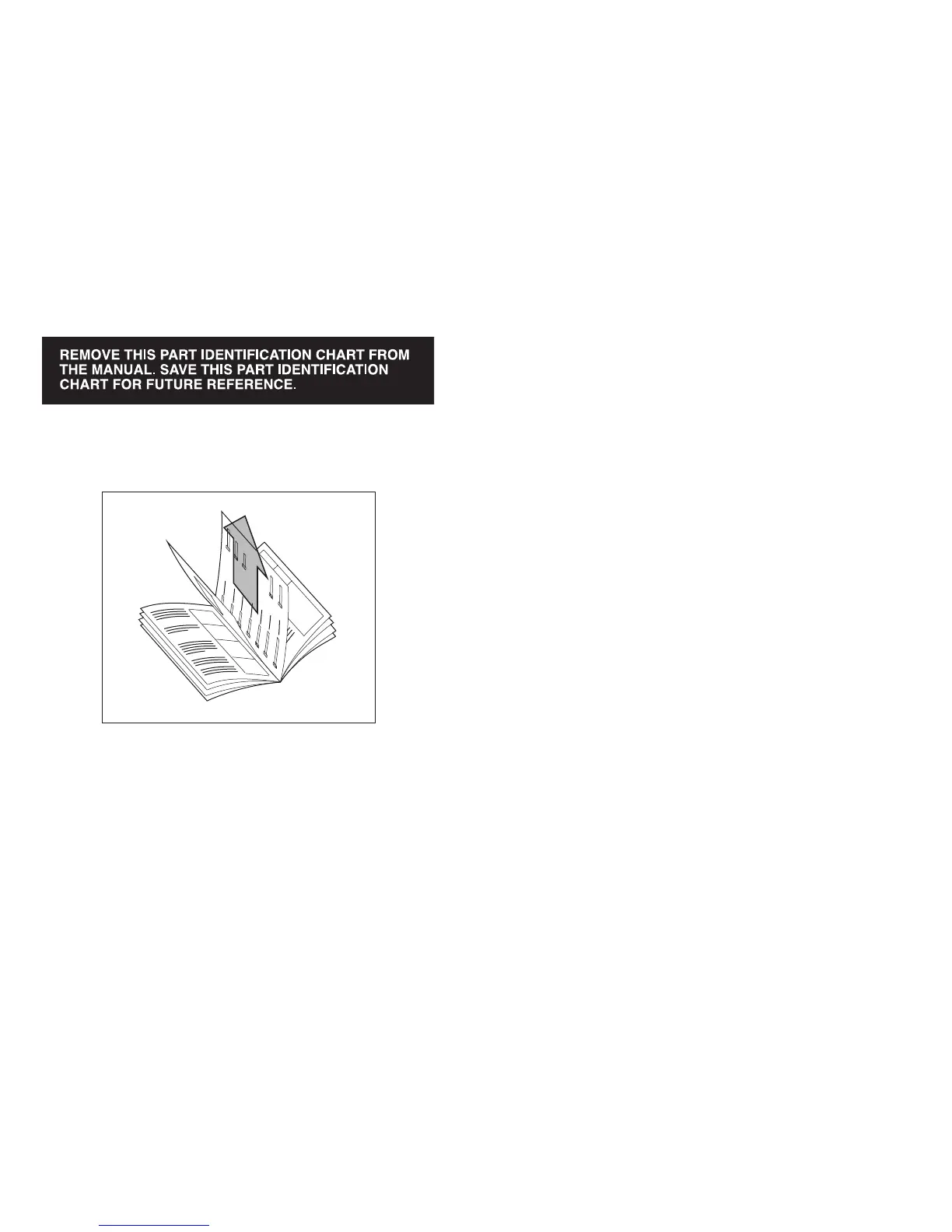

his chart is provided to help you identify the small parts used in assembly. The number in parenthesis below
each part refers to the key number of the part from the PART LIST in the centre of this manual. Important:
Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts
bags, check to see if it has been pre-assembled.
