Weider Pro 9450 - Seat and Leg Lever Adjustments; Leg Lever Attachment and Eyebolt Insertion; Seat Frame to Upright Attachment; Pad Tube and Foam Pad Installation

19

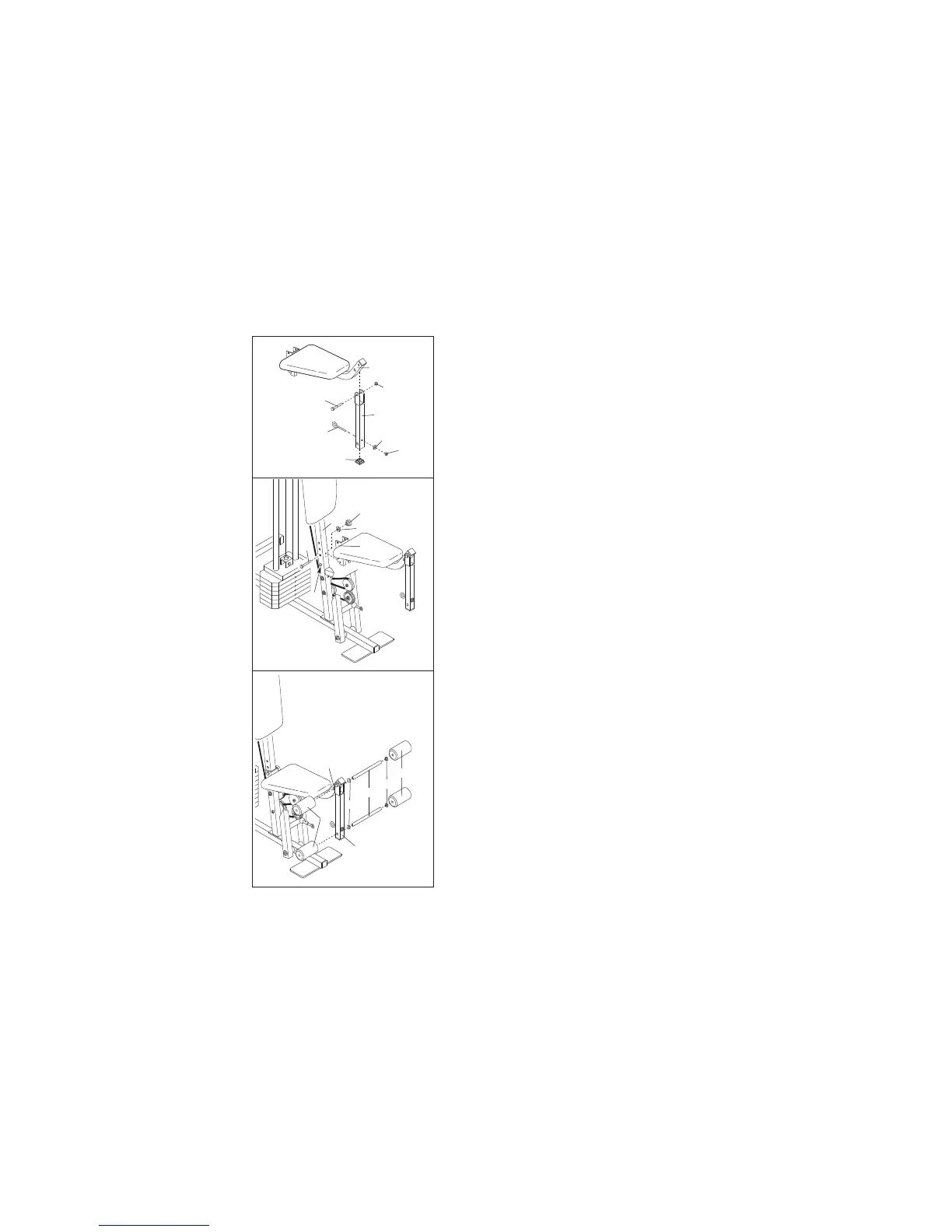

43. Press two 3/4” Round Inner Caps (34) into each
Pad Tube (28).
Insert a Pad Tube (28) into the Front Seat Frame
(36). Slide a Foam Pad (30) onto each end of the
Pad Tube.
Insert the other Pad Tube (28) into the Leg Lever
(29). Slide a Foam Pad (30) onto each end of the
Pad Tube.
41. Press a 1 1/2” Square Inner Cap (32) into the Leg
Lever (29).
Lubricate the 5/16” x 2 1/4” Bolt (33). Attach the
Leg Lever (29) to the Front Seat Frame (36) with
the Bolt and a 5/16” Nylon Locknut (3).
Insert the 3/8” x 2” Eyebolt (35) into the Leg Lever
(
29) from the direction shown. Tighten a 3/8”
Washer (9) and a 3/8” Nylon Locknut (21) onto the
Eyebolt.
42. Slide one of the three slots in the bracket on the
Front Seat Frame (36) onto the indicated pin on the
Front Upright (42). Attach the Front Seat Frame to
the Front Upright with a 5/16” x 2 3/4” Carriage Bolt
(14), a 5/16” Washer (8), and the Seat Knob (40).
Note: The Seat can be attached at three differ-
ent heights.
42
4
1
3
12
21
2
9
33
35
32
3
6
36
42
40
8
14
Pin
43
30
30
29
34
36
34
28
