Weider Pro 9450 - Frame Assembly Continued; Frame Assembly - Upright Attachment

6

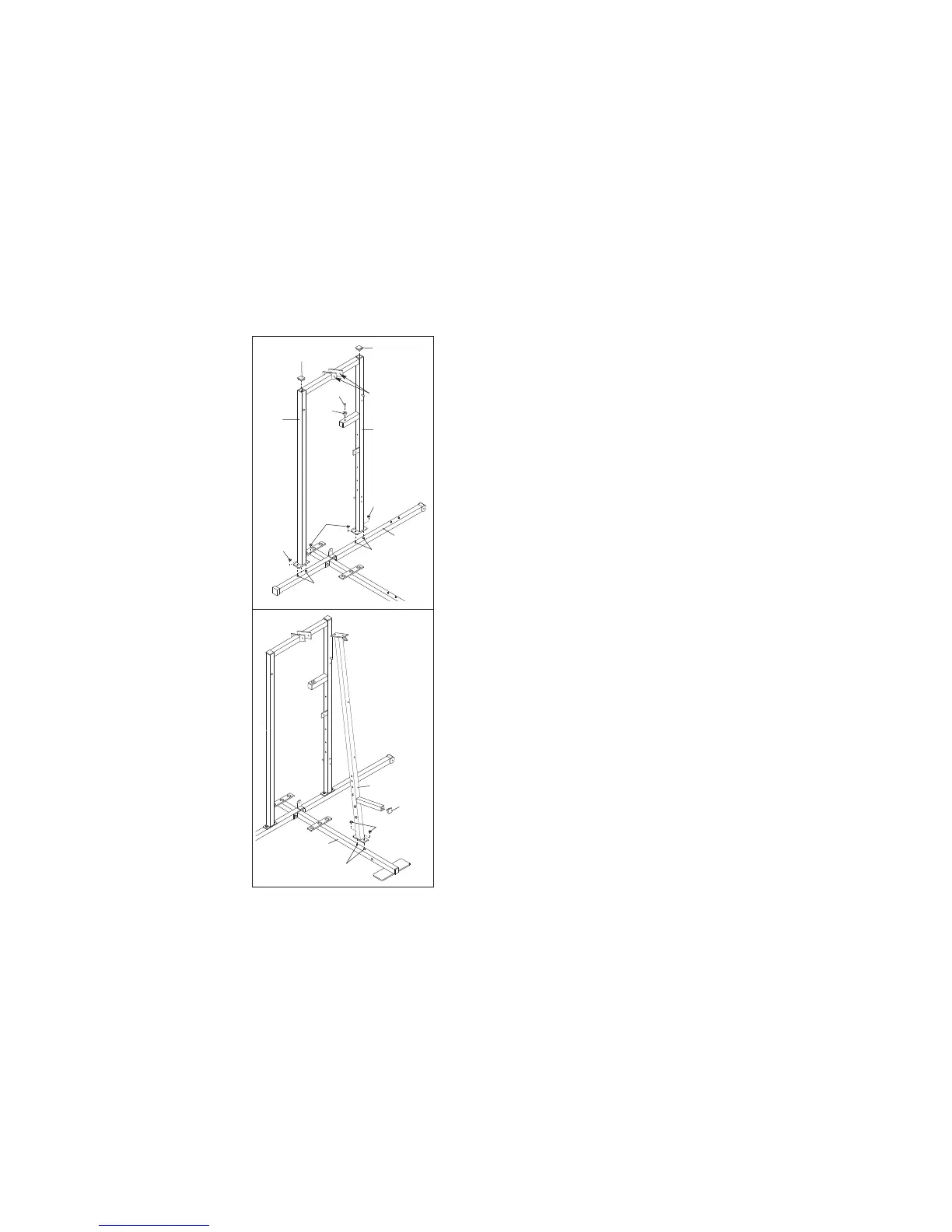

2. Slide the Rear Upright (74) and the Leg Press
Upright (56) onto the indicated 5/16” x 2 1/2”
C
arriage Bolts (1) in the Stabiliser (5). T
he high
side of the brackets on the Rear Upright and
L
eg Press Upright should be on the side shown.
Hand tighten four 5/16” Nylon Locknuts (3) onto the
Carriage Bolts. Do not tighten the Nylon
Locknuts yet.
Press a 2” Square Inner Cap (27) into the Leg
Press Upright (56). Press a 2” Square Inner Cap
into the Rear Upright (74).
Attach the Rubber Bumper (91) to the Leg Press
Upright (56) with the #8 x 1/2” Self-tapping Screw
(87).
3. Slide the Front Upright (42) onto the 5/16” x 2 1/2”
Carriage Bolts (1) in the Base (4). Hand tighten a
5/16” Nylon Locknut (3) onto each Carriage Bolt.
Do not tighten the Nylon Locknuts yet.
Press a 1” Square Inner Cap (6) into the Front
Upright (42).
