Weider Pro 9450 - Frame Assembly Completion; Frame Assembly - Top Frame and Weight Stacks

7

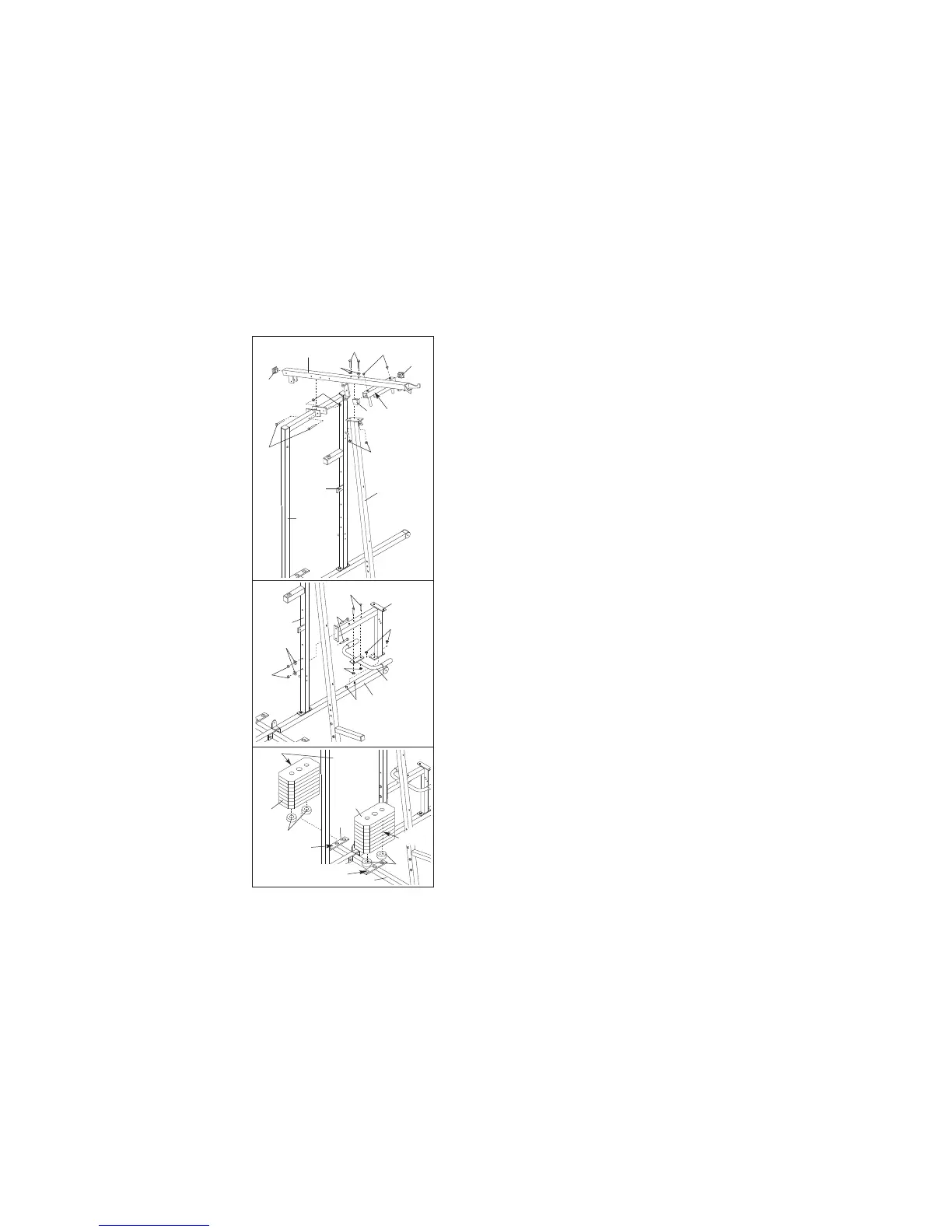

4. Press a 2” Square Inner Cap (27) into the end of
the Top Frame (55). Press a 1 3/4” Square Inner
C
ap (44) into each end of the crossbar on the Top
Frame. Press two Round Inner Caps (75) into the
t
op of the crossbar.
Attach the Top Frame (55) to the Rear Upright (74)
and the Leg Press Upright (56) with two 5/16” x
2 3/4” Bolts (11) and two 5/16” Nylon Locknuts (3).
Attach the Top Frame (55) to the Front Upright (42)
with two 5/16” x 2 3/4” Bolts (11), two 5/16”
Washers (8), and two 5/16” Nylon Locknuts (3).
5. Slide the Leg Press Seat Frame (79) onto the indi-
cated 5/16” x 2 1/2” Carriage Bolts (1) in the
Stabiliser (5). Hand tighten two 5/16” Nylon
Locknuts (3) onto the Carriage Bolts.
Attach the other end of the Leg Press Seat Frame
(79) to the Leg Press Upright (56) with two 5/16” x
2 3/4” Bolts (11), two 5/16” Washers (8), and two
5/16” Nylon Locknuts (3).
Attach the Handle (82) to the Leg Press Seat
Frame (79) with two 5/16” x 2 1/2” Carriage Bolts
(1) and two 5/16” Nylon Locknuts (3).
Tighten all 5/16” Nylon Locknuts (3) used in
steps 1–5.
6. Set two Weight Bumpers (19) on the bracket on the
Base (4) as shown. Set two W
eight Bumpers on the
bracket on the Stabiliser (5).
Stack eight Weights (25) onto each set of Weight
Bumpers (19).
Be sure that the pin grooves are
on the indicated side of each stack of Weights.
Be careful not to tip either stack of Weights (25)
until step 8 is complete.
