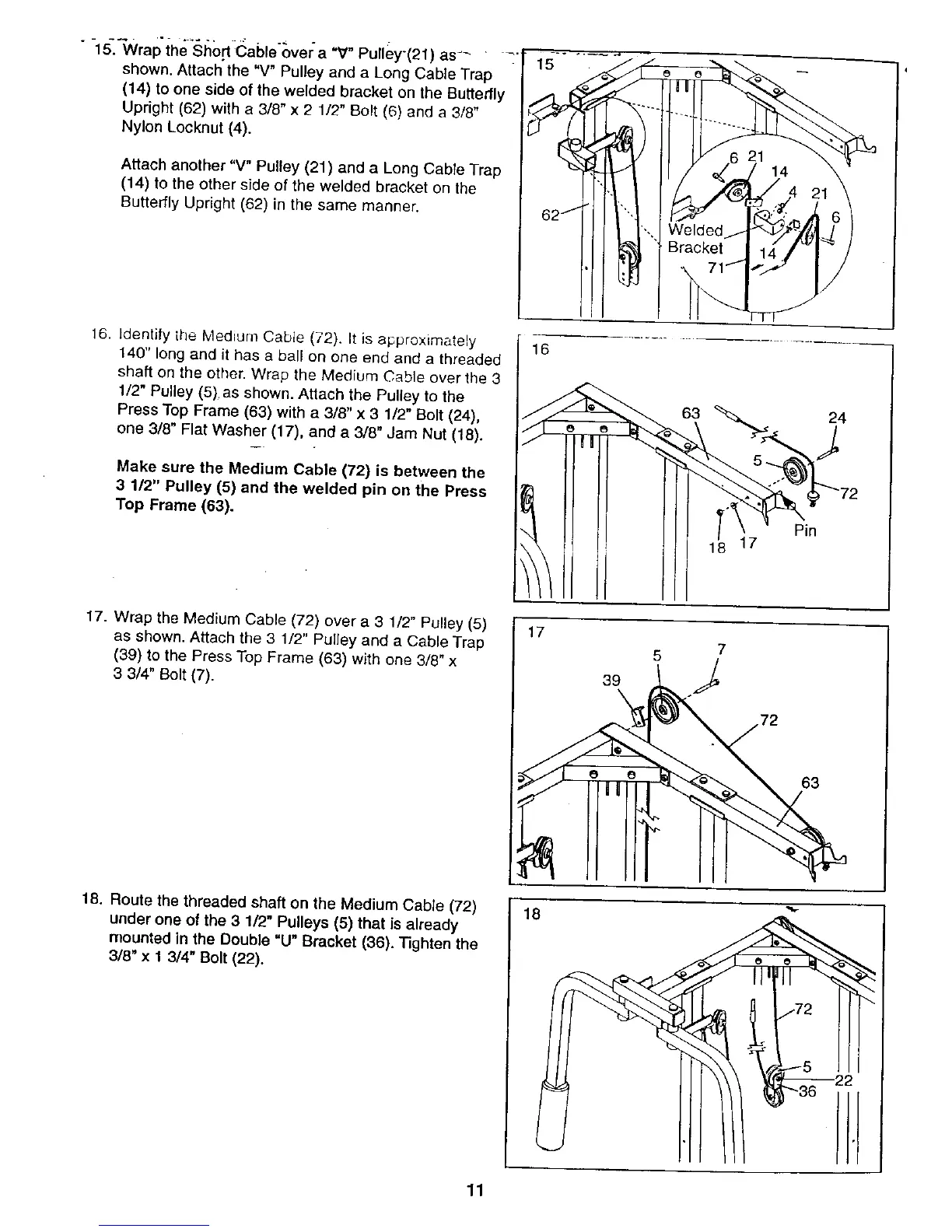

15. Wrap the Short Cable over a "V" Pulley'(21) as_-,
shown. Attach the "V" Pulley and a Long Cable Trap
(14) to one side of the welded bracket on the Butterfly
Upright (62) with a 3/8" x 2 1/2" Bolt (6) and a 3/8"
Nylon Locknut (4).
Attach another "V_ Pulley (21) and a Long Cabte Trap
(14) to the other side of the welded bracket on the
Butterfly Upright (62) in the same manner.
16. Identify the Medium Cable (72). It is approximately
140" long and it has a ball on one end and a threaded
shaft on the other. Wrap the Medium Cable over the 3
1/2" Pulley (5),as shown. Attach the Pulley to the
Press Top Frame (63) with a 3/8" x 3 1/2" Bolt (24),
one 3/8" Flat Washer (17), and a 3/8" Jam Nut (18).
Make sure the Medium Cable (72) is between the
3 1/2" Pulley (5) and the welded pin on the Press
Top Frame (63).
15
16
Bracket
63
Pin
17
24
17. Wrap the Medium Cable (72) over a 3 1/2" Pulley (5)
as shown. Attach the 3 1/2" Pulley and a Cable Trap
(39) to the Press Top Frame (63) with one 3/8" x
3 3/4" Bolt (7).
17
5
39
63
18. Route the threaded shaft on the Medium Cable (72)
under one of the 3 1/2" Pulleys (5) that is already
mounted in the Double =U" Bracket (36). Tighten the
3/8" x 1 3/4" Bolt (22).
18
7 22
11
To Next Page
