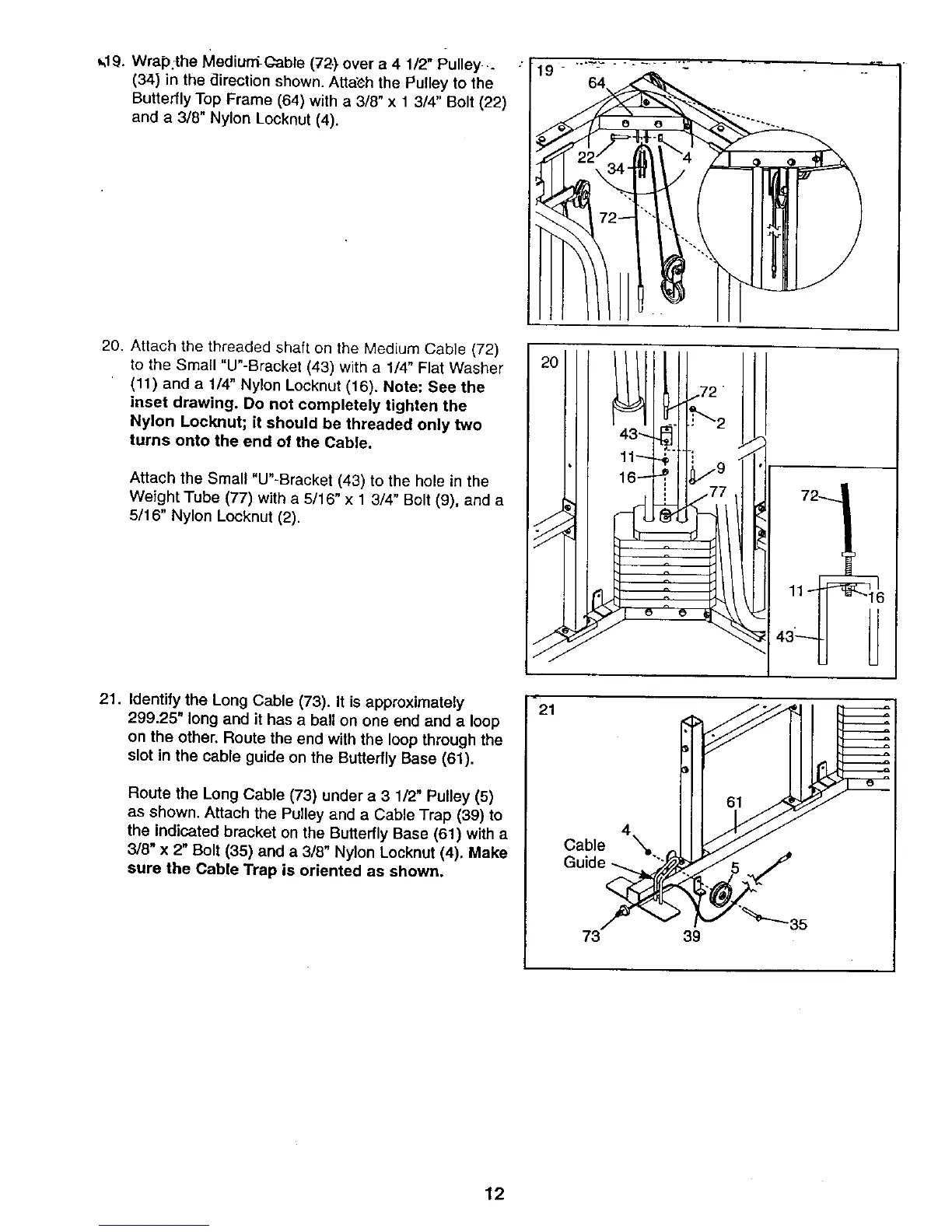

_19. Wra{:):the Mediur_Cable (72)-over a 4 1/2" Pulley -.
(34) in the c]irection shown. Atta'¢h the Pulley to the
Butterfly Top Frame (64) with a 3/8" x 1 3/4" Bolt (22)
and a 3/8" Nylon Locknut (4).
20. Attach the threaded shaft on the Medium Cable (72)
to the Small "U"-Bracket (43) with a 1/4" Flat Washer
(11) and a 1/4" Nylon Locknut (16). Note: See the
inset drawing. Do not completely tighten the
Nylon Locknut; it should be threaded only two
turns onto the end of the Cable.
Attach the Small "U"-Bracket (43) to the hole in the
Weight Tube (77) with a 5/16" x 1 3/4" Bolt (9), and a
5/16" Nylon Locknut (2).
21. Identify the Long Cable (73). It is approximately
299.25" long and it has a ball on one end and a loop
on the other. Route the end with the loop through the
slot in the cable guide on the Butterfly Base (61).
Route the Long Cable (73) under a 3 1/2" Pulley (5)
as shown• Attach the Pulley and a Cable Trap (39) to
the indicated bracket on the Butterfly Base (61) with a
3/8' x 2" Bolt (35) and a 3/6" Nylon Locknut (4). Make
sure the Cable Trap is oriented as shown.
-21
73 39
12
