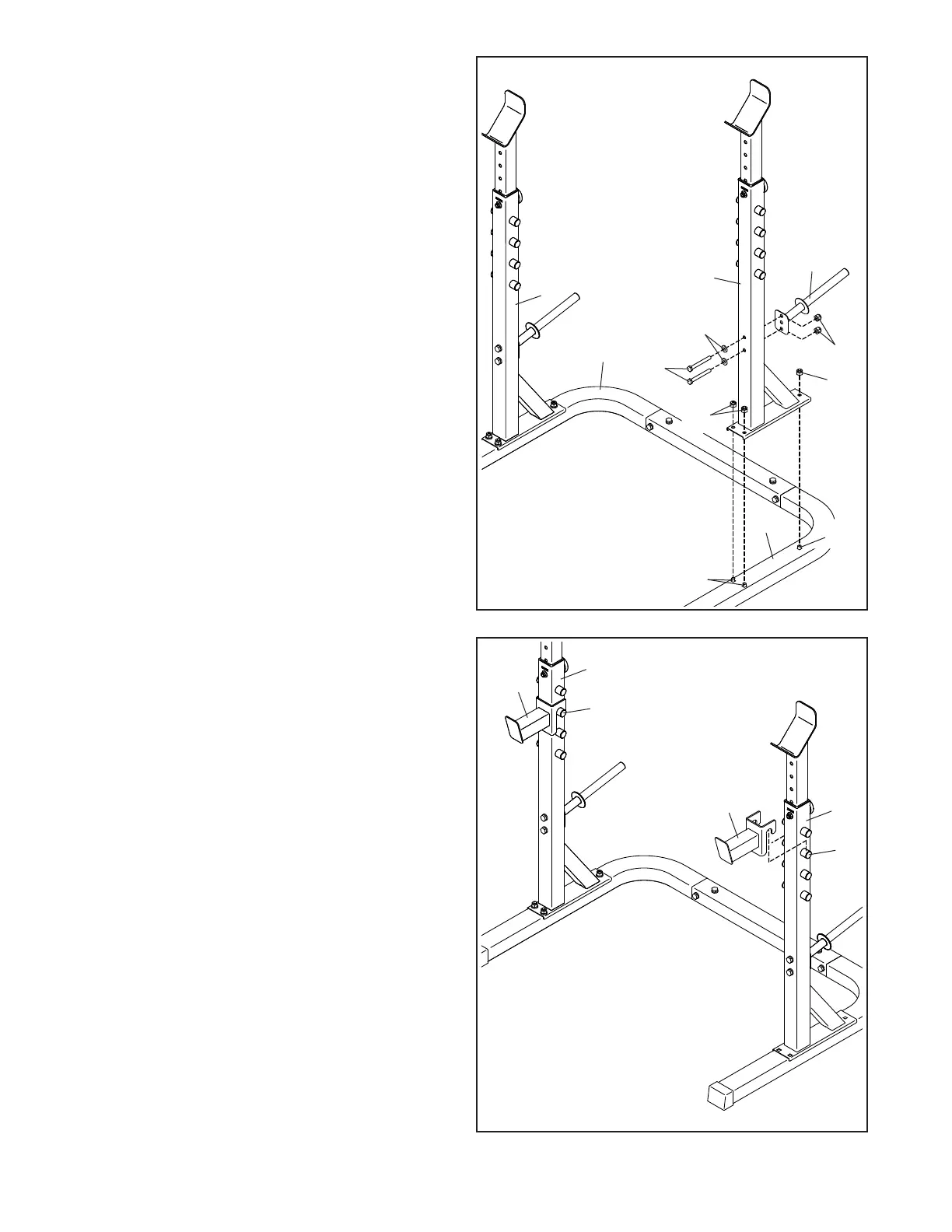

3. Orient one of the Uprights (3) as shown, and set
it over the three M10 x 65mm Carriage Bolts (16)
in the Left Base (2). Attach the Upright with three
M10 Locknuts (17).
Then, attach a Storage Tube (4) to the
Upright (3) with two M10 x 75mm Bolts (20),
two M10 Washers (19), and two M10 Locknuts
(17);
insert both Bolts, and then tighten the
Locknuts.
Repeat this step for the other Upright (3) and
the Right Base (1).
See step 2.
Tighten the six M10 x 20mm
Screws (9).
4. Set a Spotter (6) on a set of pegs (A) on the left
Upright (3).
Set the other Spotter (6) on a set of pegs (A)
on the right Upright (3).
Make sure that both
Spotters are at the same height.
3
4
4
17
16
2
20
19
3
3
1
3
A
6
17
16
17
6
3
A
