8

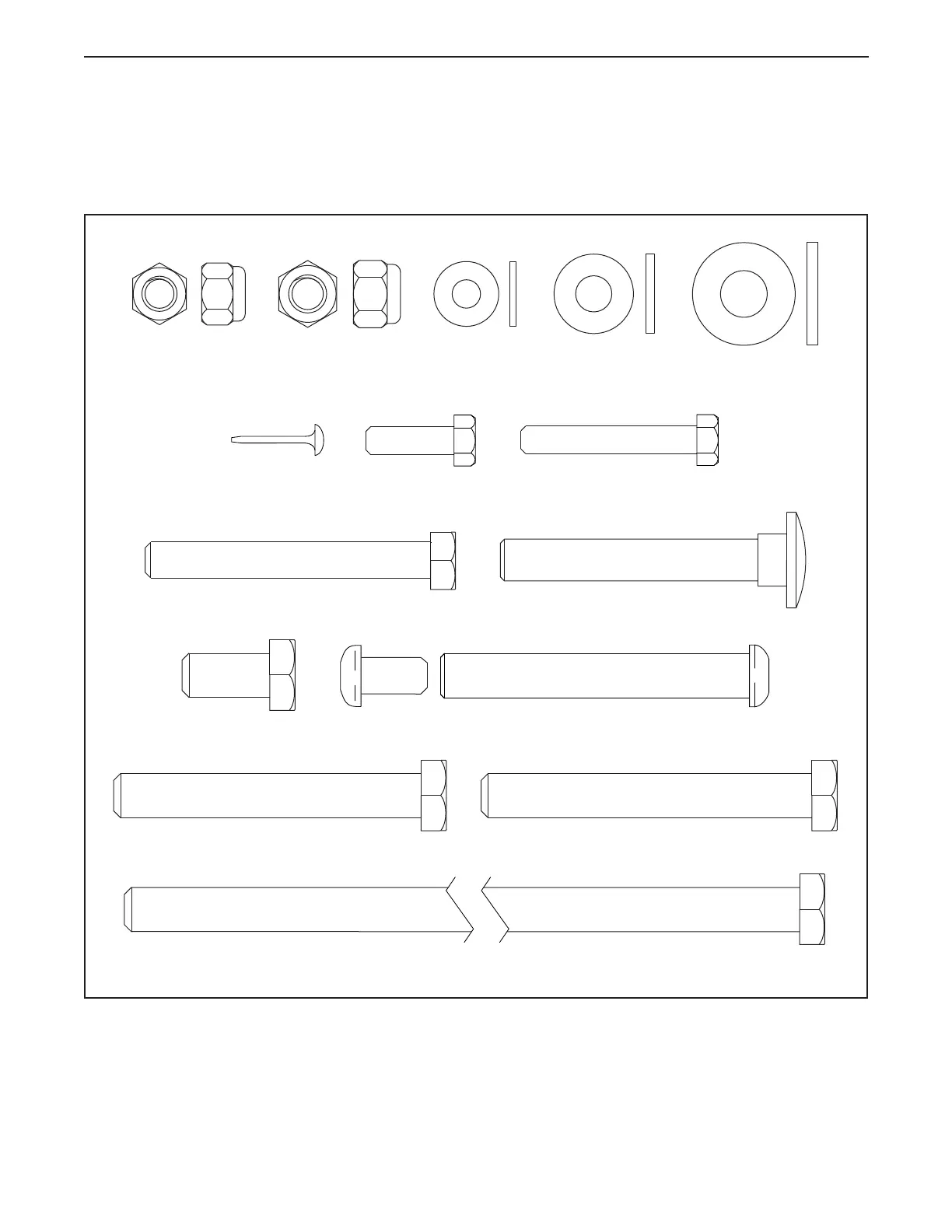

PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly.
Note: If a part is not in the hardware kit, check to see
whether it has been preassembled. Extra parts may be included.
M8 x 65mm Bolt (28)–1
M10 x 65mm Carriage Bolt (16)–8
M10 x 70mm Bolt (29)–4 M10 x 75mm Bolt (20)–4
M10 x 20mm
Screw (9)–6
M6 Washer
(59)–4
M10 Washer
(19)–18
M8 Locknut
(32)–1
M10 Locknut
(17)–17
M8 Washer
(58)–2
M10 x 170mm Bolt (55)–2
M10 x 70mm Bolt Set (60)–1
M4 x 19mm
Screw (18)–3
M6 x 20mm
Screw (33)–6
M6 x 40mm Screw (56)–4
