9

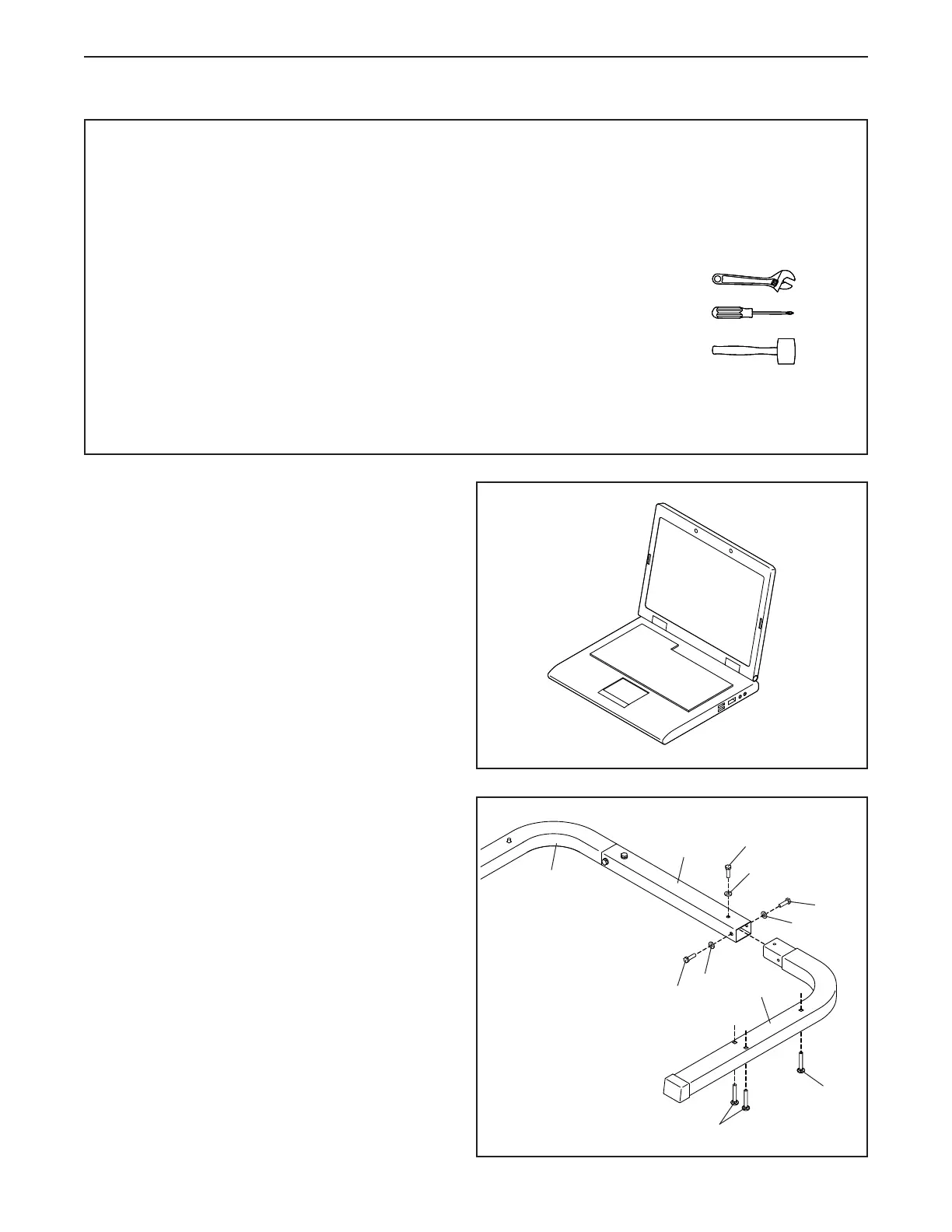

ASSEMBLY
• To hire an authorized service technician to
assemble the weight bench, call 1-800-445-2480.
• Because of its weight and size, assemble the
weight bench in the location where it will be used.
Make sure that there is enough clearance to walk
around it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is finished.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• Assembly requires two persons.
• For help identifying small parts, see page 8.
• In addition to the included tool(s), assembly
requires the following tool(s):
two adjustable wrenches
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
1
2. Insert three M10 x 65mm Carriage Bolts (16)
upward into the Left Base (2).
Next, insert the Left Base (2) into one end of
the Center Base (21). Attach the Left Base with
three M10 x 20mm Screws (9) and three M10
Washers (19);
do not tighten the Screws yet.
Repeat this step for the Right Base (1).
2
2
21
19
9
9
9
16
16
19
19
1
1.
Go to my.weiderfitness.com on your
computer and register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
