13

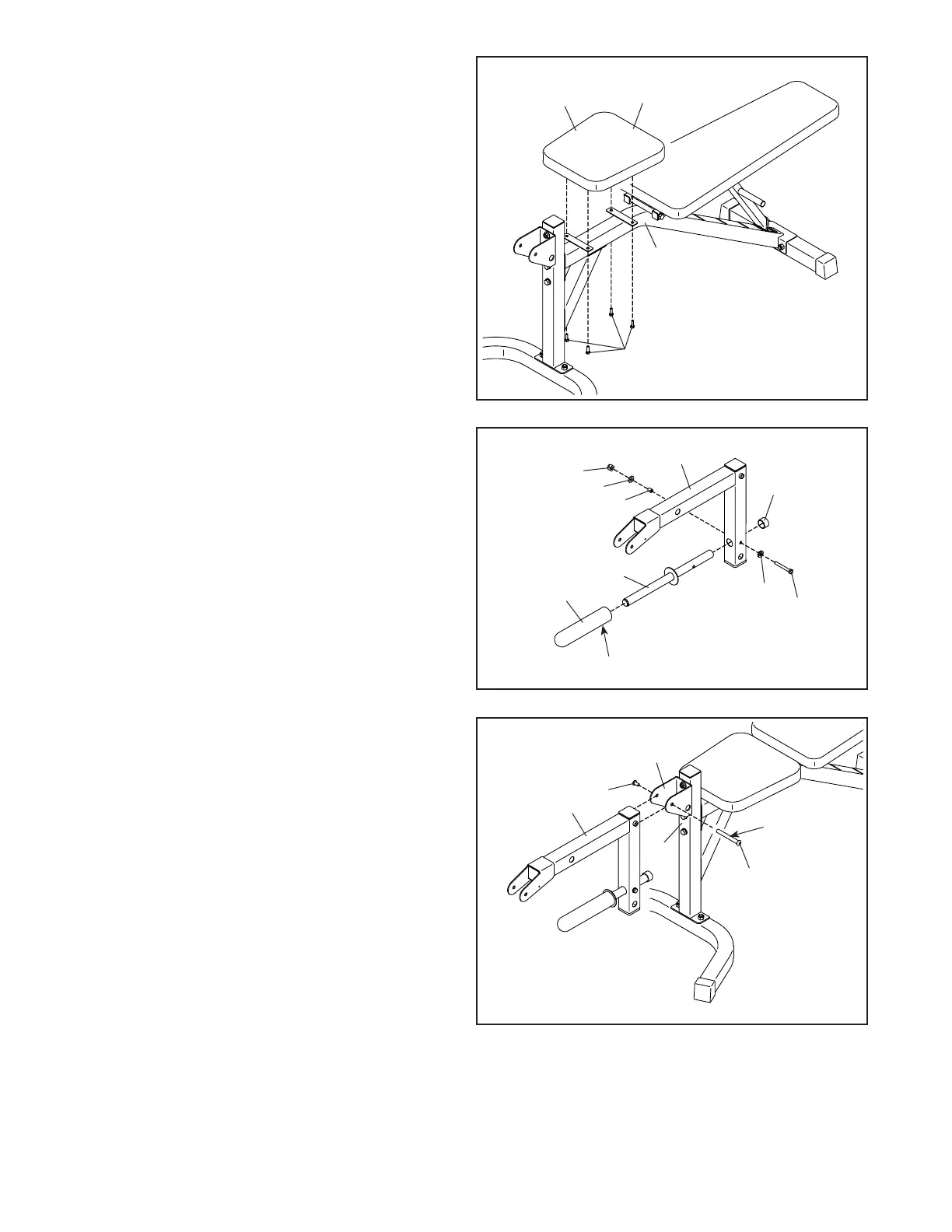

11. Attach the Weight Tube (45) to the Leg Lever
(26) with an M8 x 65mm Bolt (28), two M8
Washers (58), a Spacer (35), and an M8
Locknut (32). Then, press the 25mm Round
Outer Cap (34) onto the Weight Tube.
If you plan to use Olympic weights (not included),
slide the Olympic Adapter (8) onto the Weight
Tube (45). Then, tighten the M8 x 10mm Set
Screw (10) in the Olympic Adapter.
11
26
32
58
35
34
58
28
45
8
10
12. Apply grease to the barrel of an M10 x 70mm
Bolt Set (60).
Attach the Leg Lever (26) to the Front Leg (25)
with the M10 x 70mm Bolt Set (60).
Make sure
that the barrel of the Bolt Set is inserted
through both sides of the bracket (G) on the
Front Leg.
12
25
60
60
Grease
26
G
10
22
F
33
39
10. Orient the Seat (39) so that the wide end (F) is in
the position shown.
Attach the Seat (39) to the Frame (22) with four
M6 x 20mm Screws (33);
start all four Screws,
and then tighten them.
