WeiderPro 490 DC - Page 7

7
2
4
1
37
3
7
35
38
3
4
1
18
39
1
3
Warning
Decals
37
40

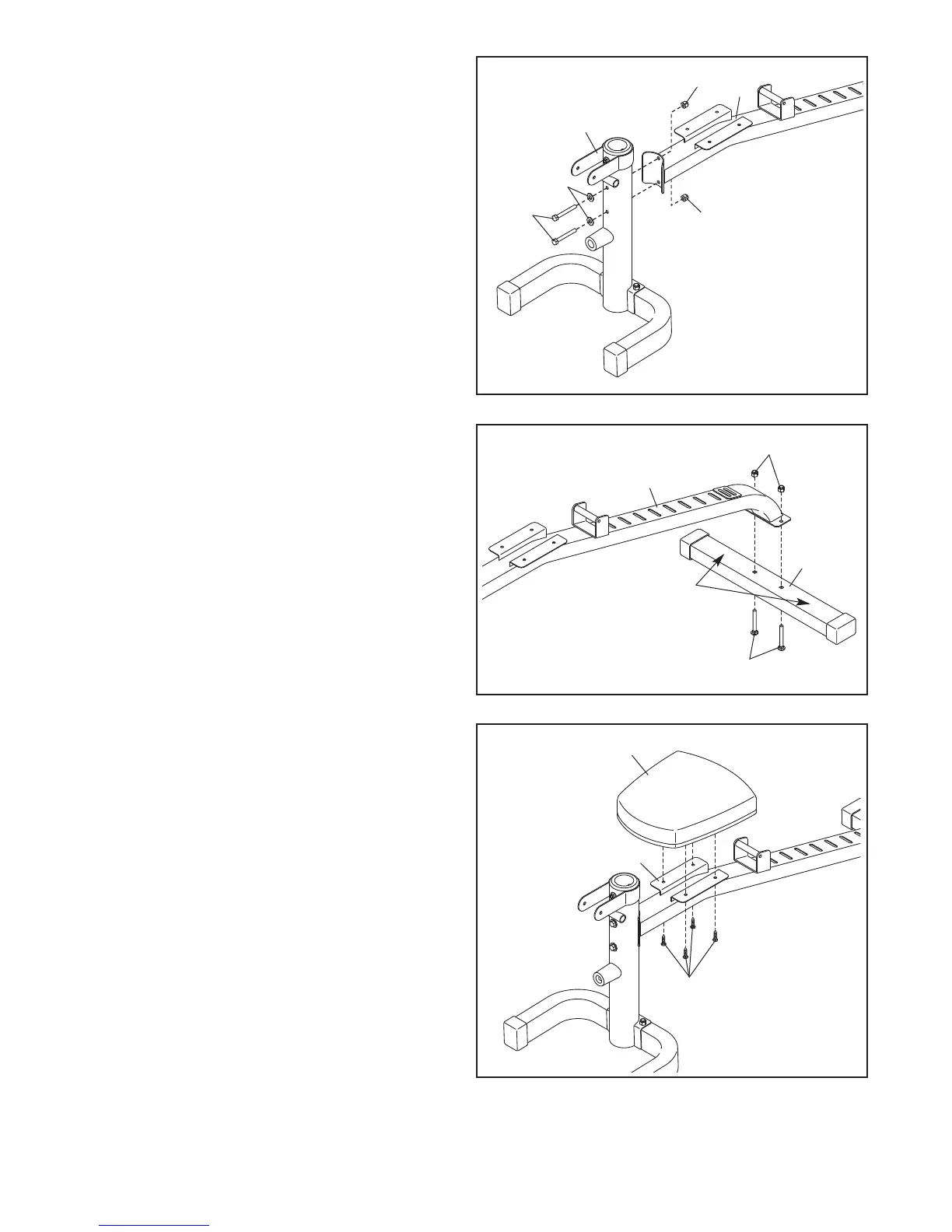

2. Attach the Front Leg (4) to the Frame (1) with
two M10 x 100mm Bolts (38), two M10 Washers
(35), and two M10 Locknuts (37). Do not
t
ighten the Locknuts yet.
4. Orient the Seat (18) as shown.
Attach the Seat (18) to the Frame (1) with four
M6 x 16mm Screws (39).
3. Orient the Rear Stabilizer (3) so that the warn-
ing decals are facing upward.
Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 65mm Carriage Bolts (40) and
two M10 Locknuts (37).
See step 1. Tighten the M10 Locknuts (37)
and the M10 x 65mm Screw (36).
See step 2. Tighten the M10 Locknuts (37).
