19

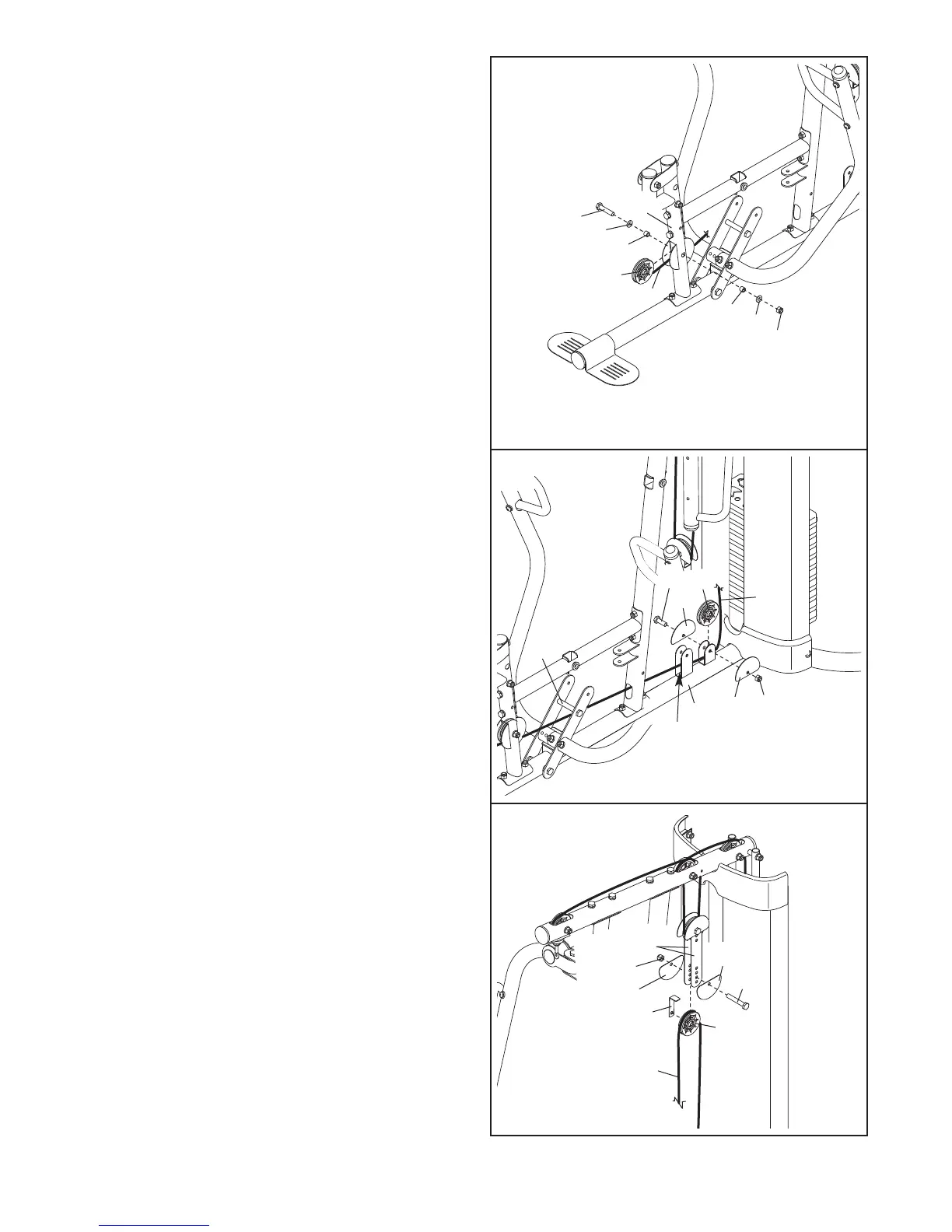

31. Attach a 90mm Pulley (48) to the Front Leg (10)
with an M10 x 65mm Bolt (85), two M10 Washers
(80), two 13mm Steel Spacers (109), and an M10
L
ocknut (77). Make sure that the Leg Lever
Cable (51) is under the Pulley.
32. Route the Leg Lever Cable (51) under the
89.5mm Spacer (59), through the Upright (2), and
under the indicated rod in the Base (1). Wrap the
Leg Lever Cable around a 90mm Pulley (48).
Attach the Pulley to the Base with an M10 x
45mm Bolt (86), two Half Guards (55), and an
M10 Locknut (77).
33. Wrap the Leg Lever Cable (51) over a 90mm
Pulley (48). Attach the Pulley, a Cable Trap (56),
and two Half Guards (55) to the second hole from
the bottom of the Pulley Plates (60) with an M10
x 50mm Bolt (97) and an M10 Locknut (77).
Make sure that the Cable Trap and the Half
Guards are oriented as shown.
3
1
32
55
59
1
77
51
85
80
80
77
10
109
109
48
51
Rod
33
77
55
56
55
97
60
51
48
86
55
48
To Next Page
