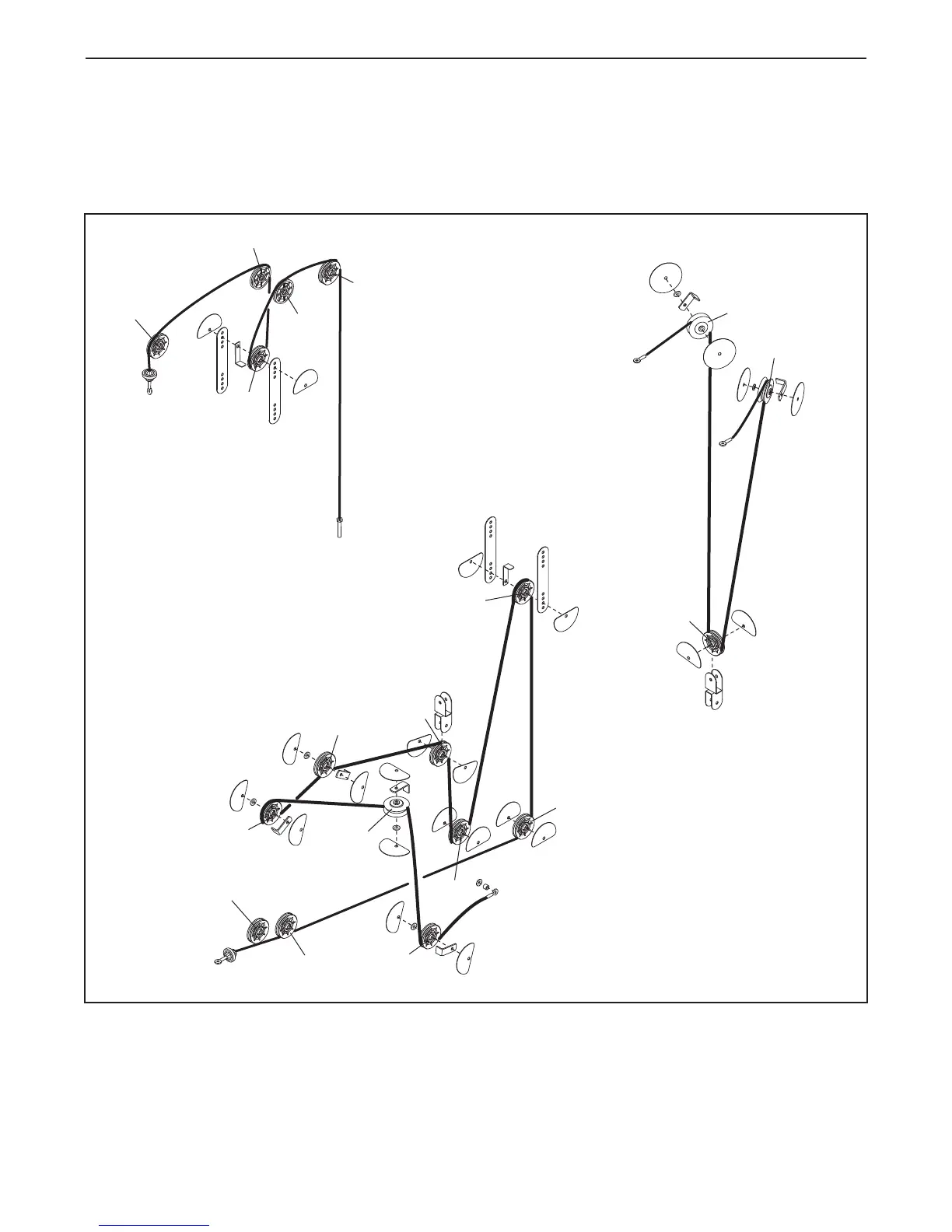

CABLE DIAGRAM
T
he cable diagram shows the proper routing of the cables. The numbers in each drawing show the proper rout-
ing for that cable. Use the diagram to make sure that the cables and the cable traps are assembled correctly. If
the cables and the cable traps are not assembled correctly, the weight system will not function properly and
damage may occur. Make sure that the cable traps do not touch or bind the cables.
10
6
5
7
8
9
1
2
3
4
Lat Cable (49)
Length 147 in. (373 cm)
Butterfly Cable (50)
Length 114 in. (289 cm)
Leg Lever Cable (51)
Length 231 in. (588 cm)
1
1
2
3
2
3
4
5
