2. Product Description
2.1 Overview of the printer

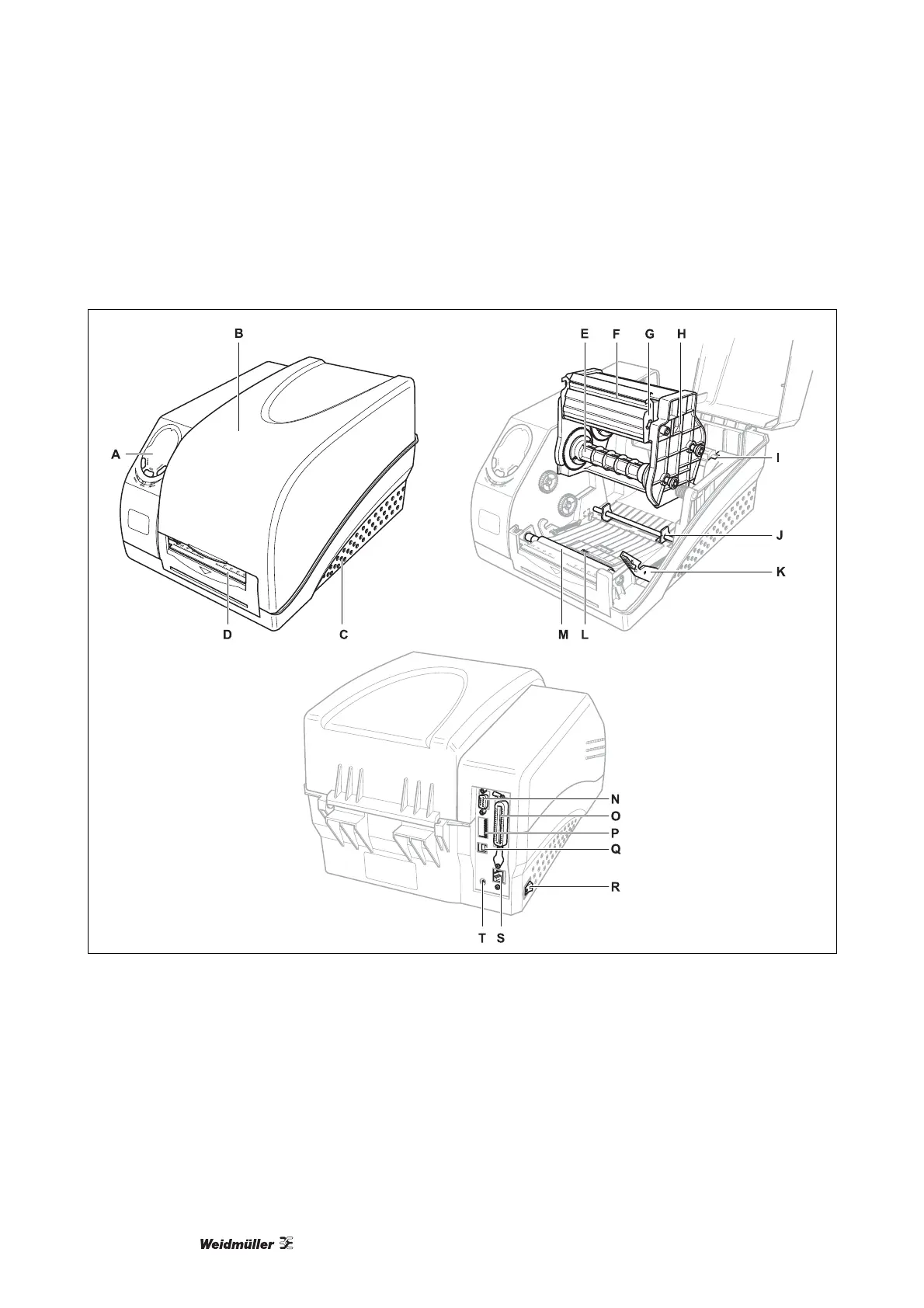

Figure 1 Printer overview
A Control panel B Cover C Printer base D Label outlet
E Ribbon unwinder F Print head G Holder for print head H Print module
I Label holder J Label guide
K Release latch for the
print module
L Label sensor
M Label feed roller N Serial interface O Parallel interface P DIP switch
Q USB interface R Main switch S Ethernet interface
T Mains power supply
socket
