Weifang 495 - Air Cleaner Diagram

/
~
..

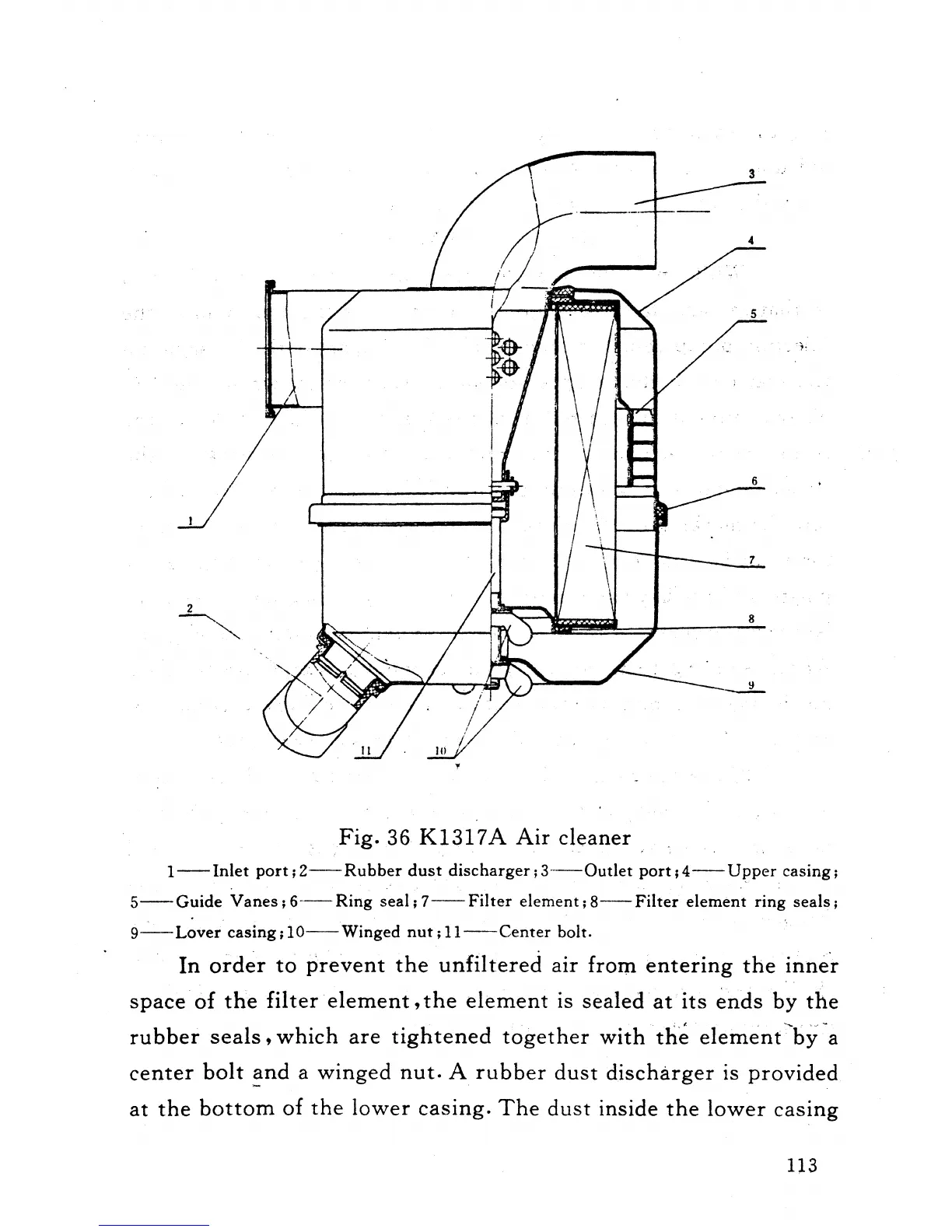

Fig. 36 K1317 A Air cleaner
I-Inlet port; 2-Rubber dust discharger; 3-0utlet port; 4-U~per casing;
S-Guide Vanes;6--Ring seal;7-Filter element;8-Filter element ring seals;
9-Lover casing;10-Winged nut;11-Center bolt.
In order to prevent the unfil tered air from entering the inne'r
space' of the filter' element ,the element is sealed at its ends by the
rubber seals, which are tightened together withth~ element "'-by'~a
center bolt ~nd a winged nut. A. rubber dust discharger is provided
at the bottom of the lower casing. The dust inside the lower casing
113
