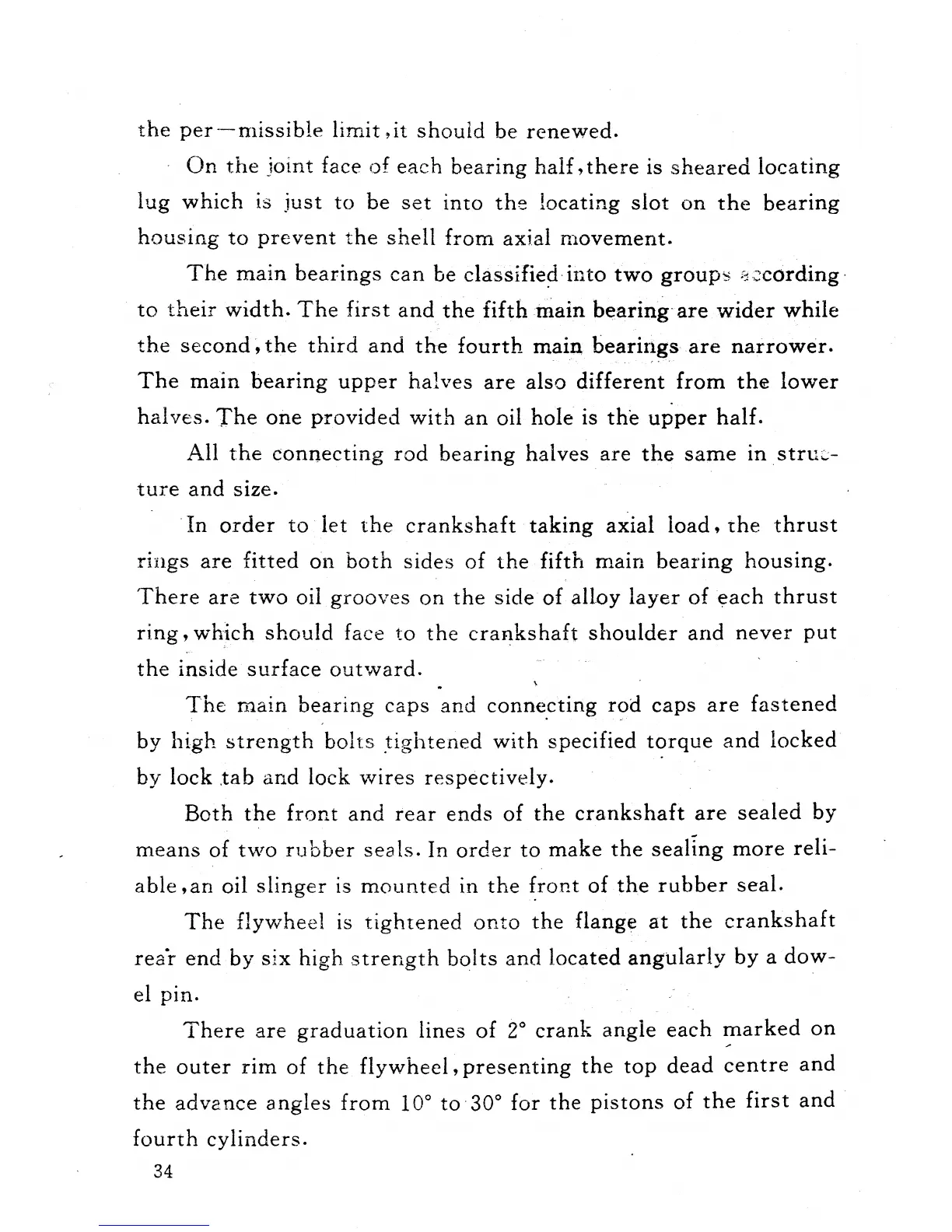

the
per
-nlissible
limit,
it
should
be
renewed.
.
On
tile
joint
face
~Jf
each
bearing
half,
there
is
sheared
locating
lug
which
is
just
to
be
set
into
the
locating
slot
on
the
bearing
housing
to
prevent
the
shell
from
axial
nlovement.
The
main
bearings
can
be
classifie~·
il1tO
two
groups
i1,::cording'
to
tlleir
width.
The
first
and
the
fifth :tIiain
bearing-are
wider
while
the
second,
the
third
and
th'e
fourth
main
bearirlgs·are
narrower.
The
main
bearing
upper
halv'es
are
also
different
from
the
lower
halves.
The
one
provided
with
an
oil
hole' is
the
upper
half.
All
the
connecting
rod
bearing
halves
are
the
same
in
struc-
ture
and
size
.
.In
order
to
let
the
crankshaft
taking
axial
load.
the
thrust
riIlgs
are
fitted
011
both
sides
of
the
fifth
main
bearing
housing.
'There
are
two
oil
grOO\TeS
on
the
side'
of
alloy
layer
of~ach
thrust
ring,
wh";ich
shc)uld face
to
the
cra~kshaft
slloulder
arid
never
put
the
inside
surface
out~t'vard.
.
The
main
bearing
caps
and
conne.cting
rod
caps
are
fastened
by 11igh
strength
bolts
.tig11tened
with
specified
torque
and
locked'
by
lock
.tab find
lock
\vires
respectively.
Both
the
front
and
rear
ends
of
the
crankshaft
are
sealed
by
means
of
two
rubber
seals.
In
order
to
make
the
sealing
more
reli-
able
,an
oil
slinger
is
mOllnted
ill
the
~ront
of
the
rubber
seal.
The
flywheel
is
tightened
onto
the
flang~
at
the
crankshaft
rea-r
end
b~f
six
high
strength
b~lts
and
located
angularly
by a
dow-
el
pin.
There
are
graduation
lines
of
crank
angle
each
r;narked
on
the
outer
rim
of
the
flywheel,
presenting
the
top
dead
centre
and
the
advance
angles
from
10°
to'
30°
for
the
pistons
of
the
first
and
fourth
cylinders.
34
