CWH companion water heater — Product Manual
Boiler/CWH piping — 70 or 110 / Right-side mixing valve
(cont.)

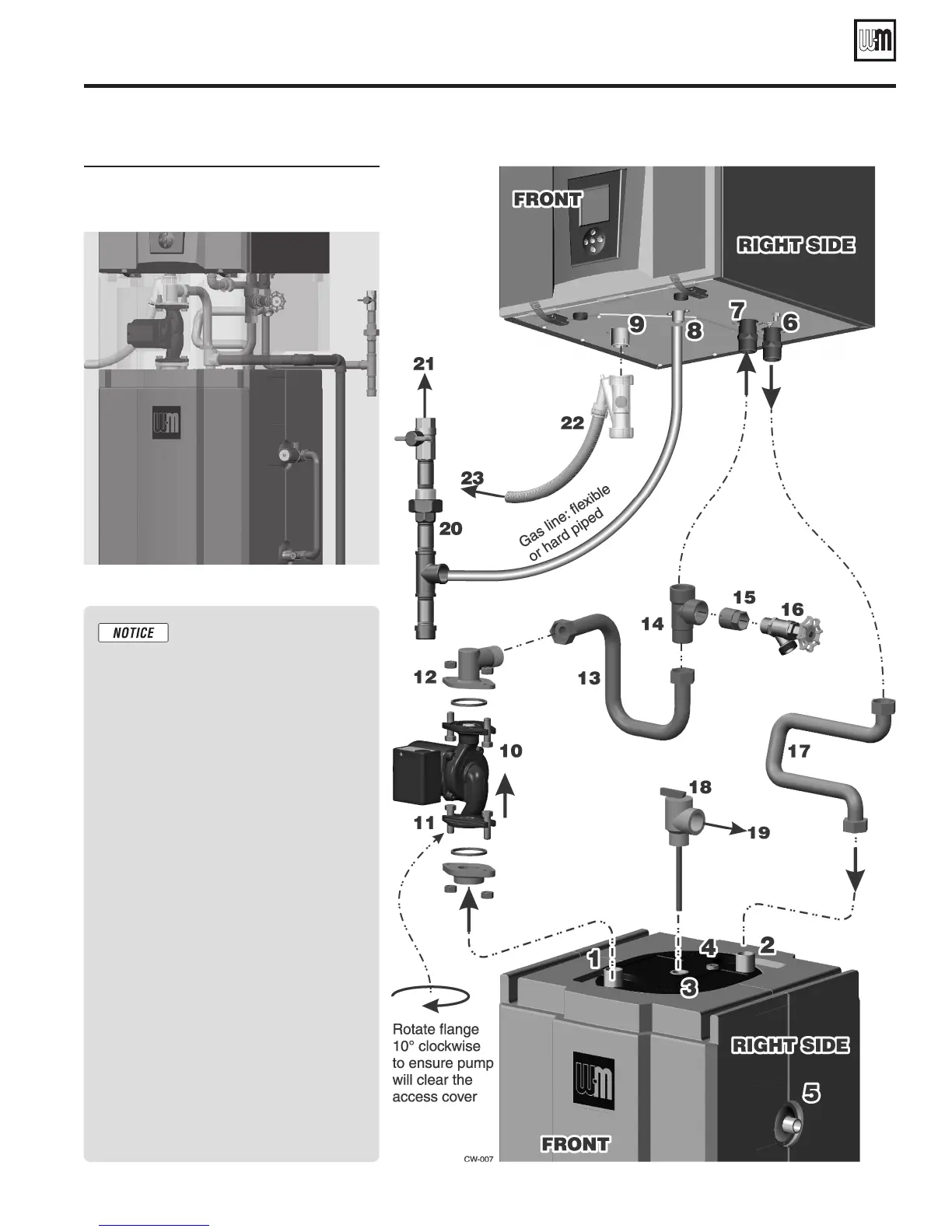

Figure 10 Typical piping for WM97+70 or
110 — CWH installed with right-
side mixing valve
All piping must comply
with the instructions in the
WM97+ Boiler manual.
Piping can be routed out ei-
ther side or both sides of the
CWH piping access cover.
The example shown here is
just one possibility.
CWH circulator mounting
• The circulator MUST be mounted in
the position shown — pumping out
of the water heater toward the boiler
DHW return.
This is required to flow
boiler water through the water heater in
the correct direction.
• Rotate the lower circulator flange adapt-
er 10° clockwise (looking down on the
flange). This is necessary to ensure the
circulator electrical housing will clear the
inside of the piping access cover.
Boiler water connections
• The CWH boiler water supply and
return lines MUST be routed to the
boiler connections as shown to en-
sure proper flow.
Part number 635-500-156/0113
13
