CWH companion water heater — Product Manual

WM97+ Control settings — Advanced

(continued)

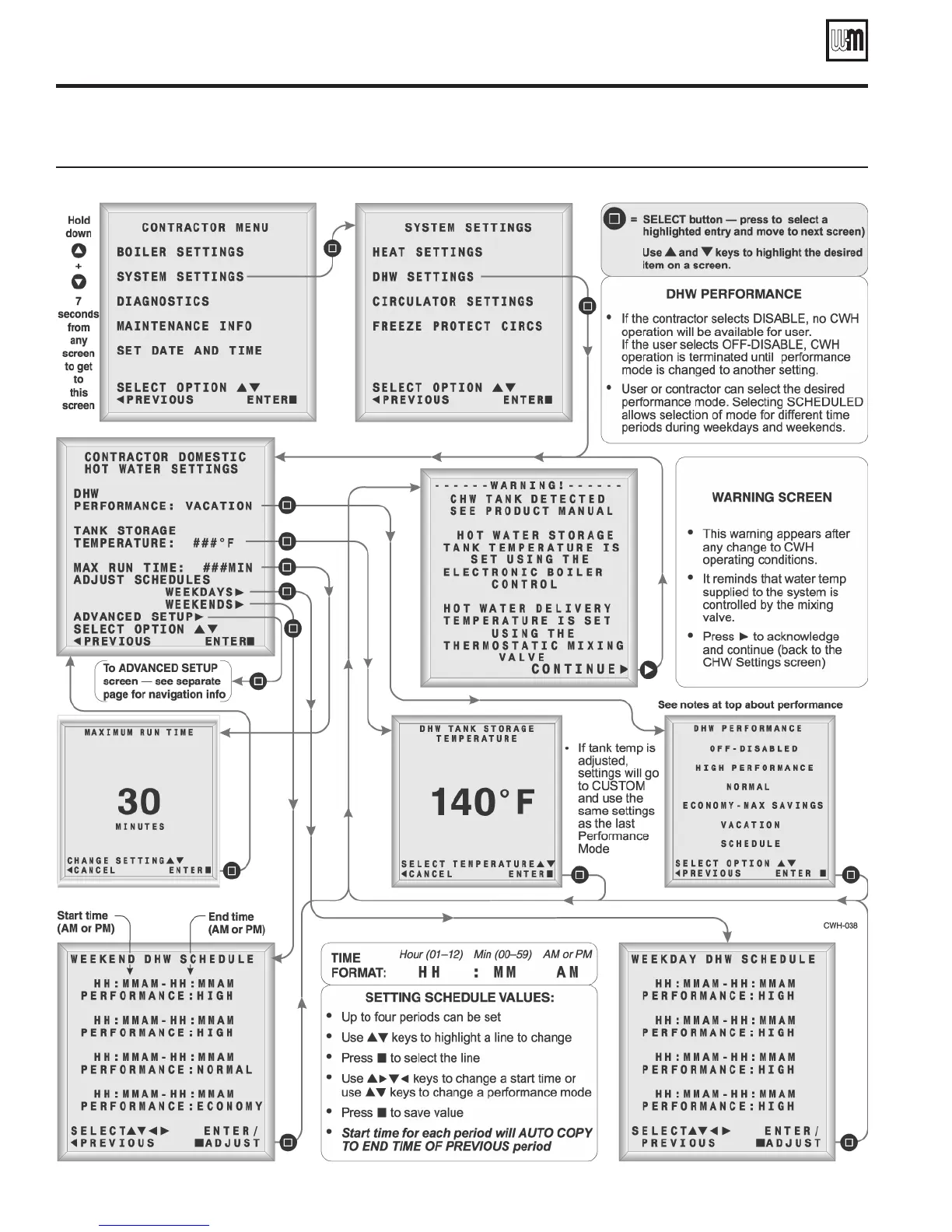

Figure 20 Contractor DHW SETTINGS menus (see Figure 21, page 27 for setting values and descriptions)

Part number 635-500-156/0113

26
