3 Product description
3 Product description

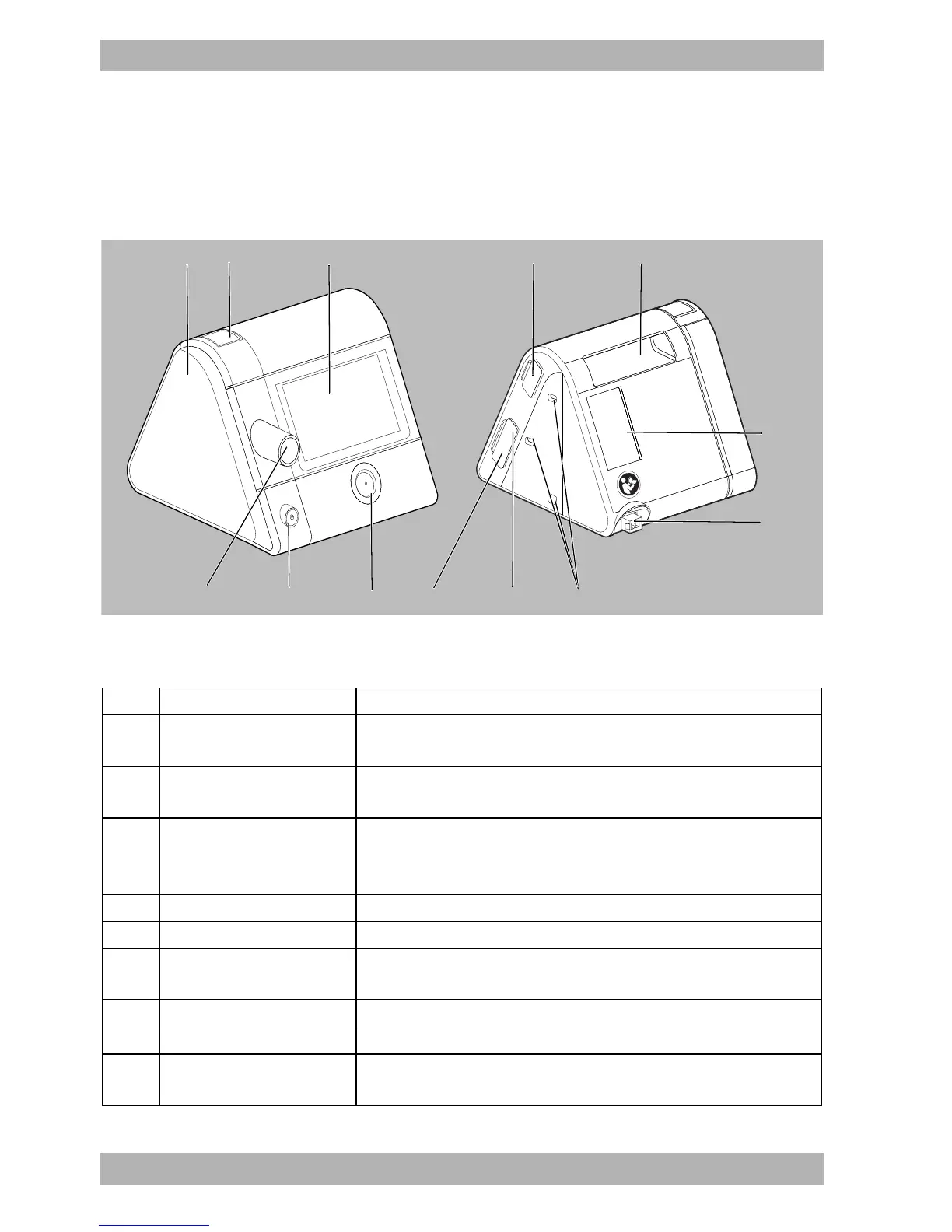

3.1 Therapy device overview
3-1 Therapy device
1
2
3
4
5
6
7
8
9
10
12
13
11
No. Designation Description
1 Cover
Covers the humidifier connection when no respiratory air humidifier
is connected.
2
Unlocking button therapy
device
Makes it possible to remove the cover in order to connect the humid-
ifier prismaAQUA.
3 Display
Allows operation of the therapy device and the respiratory air humid-
ifier.
Displays settings and current values.
4 System interface Connects the therapy device with modules.
5 Handle Allows lifting and transporting of the therapy device.
6
Filter compartment in suc-
tion area
Houses the air filter and, where applicable, the pollen filter. The re-
spiratory air is sucked in here and the dust particles filtered out.
7 Voltage input Connects the therapy device to the power supply unit.
8 Mounting holes Accept a module and secure it to the therapy device.
9 SD card slot
For inserting an SD card. The symbol in the display indicates the com-
munication between the SD card and the therapy device.
