WM 67841c 03/2015
WM 100 TD EN 21

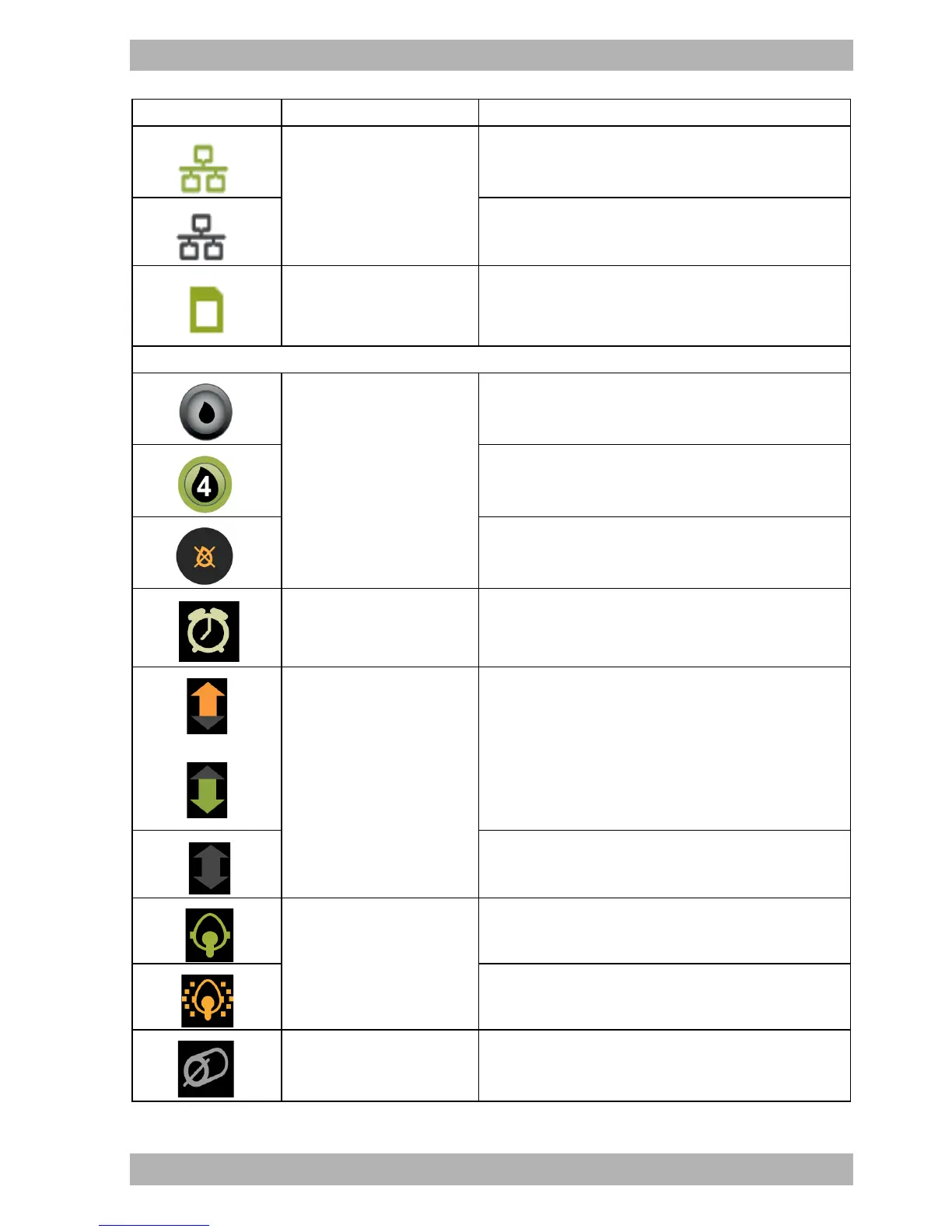

3 Product description
(Green symbol)
Network symbol
(Gray symbol)
Network connection available.
No network connection available.
SD card symbol
SD card in SD card slot.
Symbol flashes: Data is being saved to the SD card or
read off the SD card.
Symbols on the rest of the display
Respiratory air humidifier
symbol
Respiratory air humidifier is connected and switched
off.
Respiratory air humidifier is connected and switched
on.
The set humidifier level is displayed.
Respiratory air humidifier is connected and empty of
water.
Alarm symbol
Alarm is set.
If no alarm symbol is shown: the alarm is switched off.
Respiration status symbol
Displays the respiration status:
• Arrow pointing upward: inhalation
• Arrow pointing downward: exhalation
• Green arrow, spontaneous respiration
• Orange arrow, assisted breathing
Apnea
Mask status symbol with
leak indicator symbol
Mask position is good, no leaks.
Mask is not well positioned, considerable leaks, the
efficacy of the therapy is not guaranteed.
Hose diameter symbol Specifies the diameter of the hose in mm.
Symbol Designation Description
