weinor BiConnect BiRec On/Off User Manual

BiConnect BiRec On/ Off
Version 1
2016-01-01
Assembly and installation instructions/ Notice de montage et d’installation
Item number/
We reserve the right to make technical changes/ Sous reserve de modifications techniques
Numéro d’article
119759-0000
Page 5/20
3 Description of device
3.1 Summary of device components

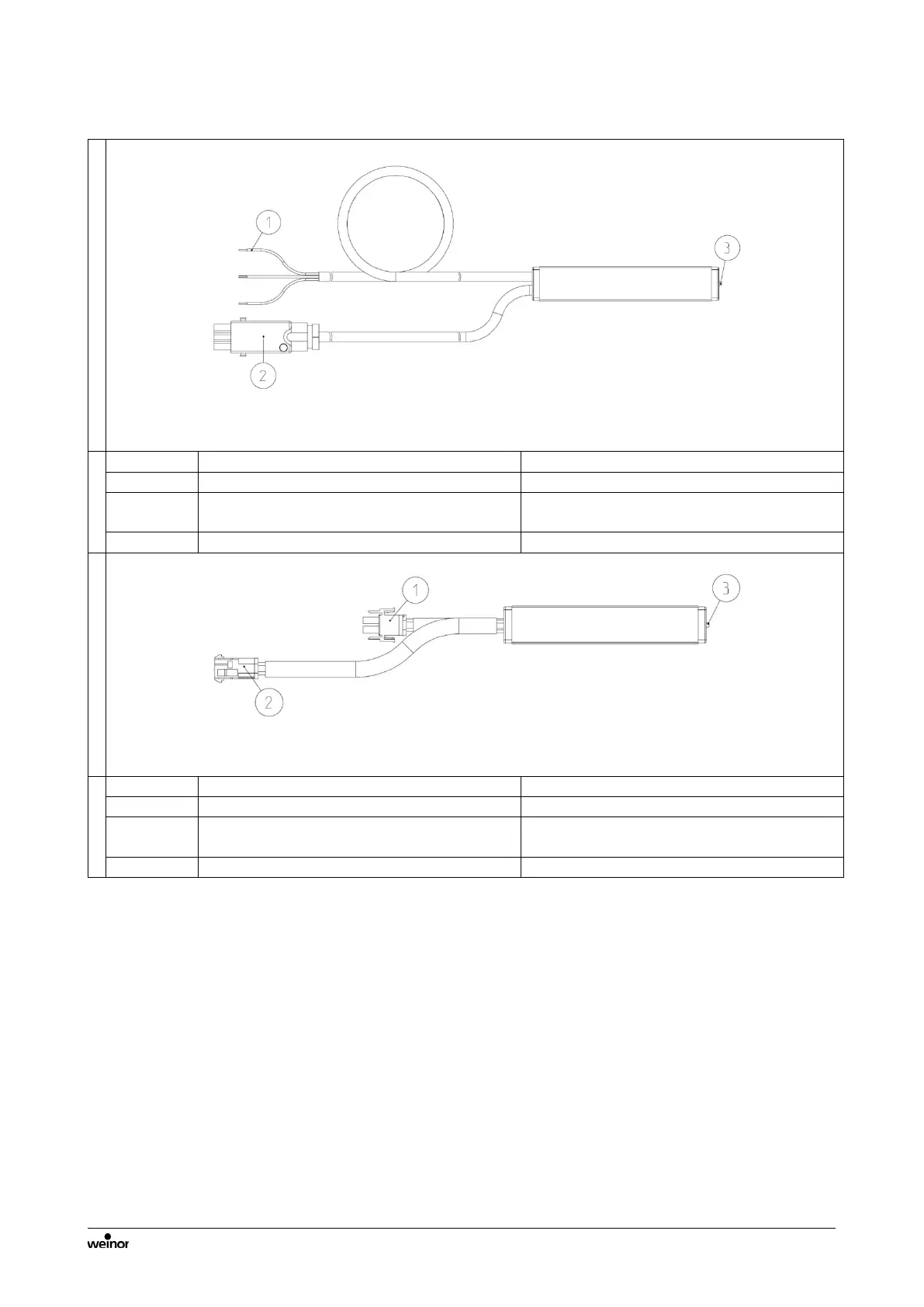

Figure 1: BiRec On/Off remote-receiver
Item
Designation
Function
1
Connection lead 3m black
Input 230V/50Hz
2
Device connection with Hirschmann
STAK3
Output, switched
3
Control lamp (LED)
2-colour green and orange
Figure 2: BiRec On/Off remote-receiver
Item
Designation
Function
1
Device connection with AMP bush
Input 230V/50Hz
2
Device connection with AMP plug
connector
Output, switched
3
Control lamp (LED)
2-colour green and orange
3.2 Function
General 3.2.1
With the BiRec On/Off, you have acquired an easy-to-handle remote-receiver equipped with
numerous possibilities of use, which allows the convenient wireless switching of electrical mains
powered devices over long distances. The BiRec On/Off possesses (bidirectional) routing
functioning.
Scope of delivery 3.2.2
If delivered separately, the BiRec On/Off remote-receiver is supplied as follows:
• Remote receiver
• Operating instructions
