SECTION III: Maintenance and Repair
WARNING: DISASSEMBLY UNDER PRESSURE CAN CAUSE SERIOUS INJURY OR DEATH!
Always Remember:
1. Always wear PPE (personal protective equipment).
2. Only qualified technicians should perform maintenance on SPM
®
products.
3. Always use Weir Oil & Gas supplied new parts kit for reassembly.
4. Clean all components thoroughly prior to reassembly.
5. Check sealing surface area of valve gate and nozzle for pitting, erosion or other flaws. Failure in sealing
can result if these areas are not smooth.
6. Use only SPM
®
Relief Valve parts on SPM
®
Relief Valves.
7. This device is intended to discharge atmospherically when it relieves.

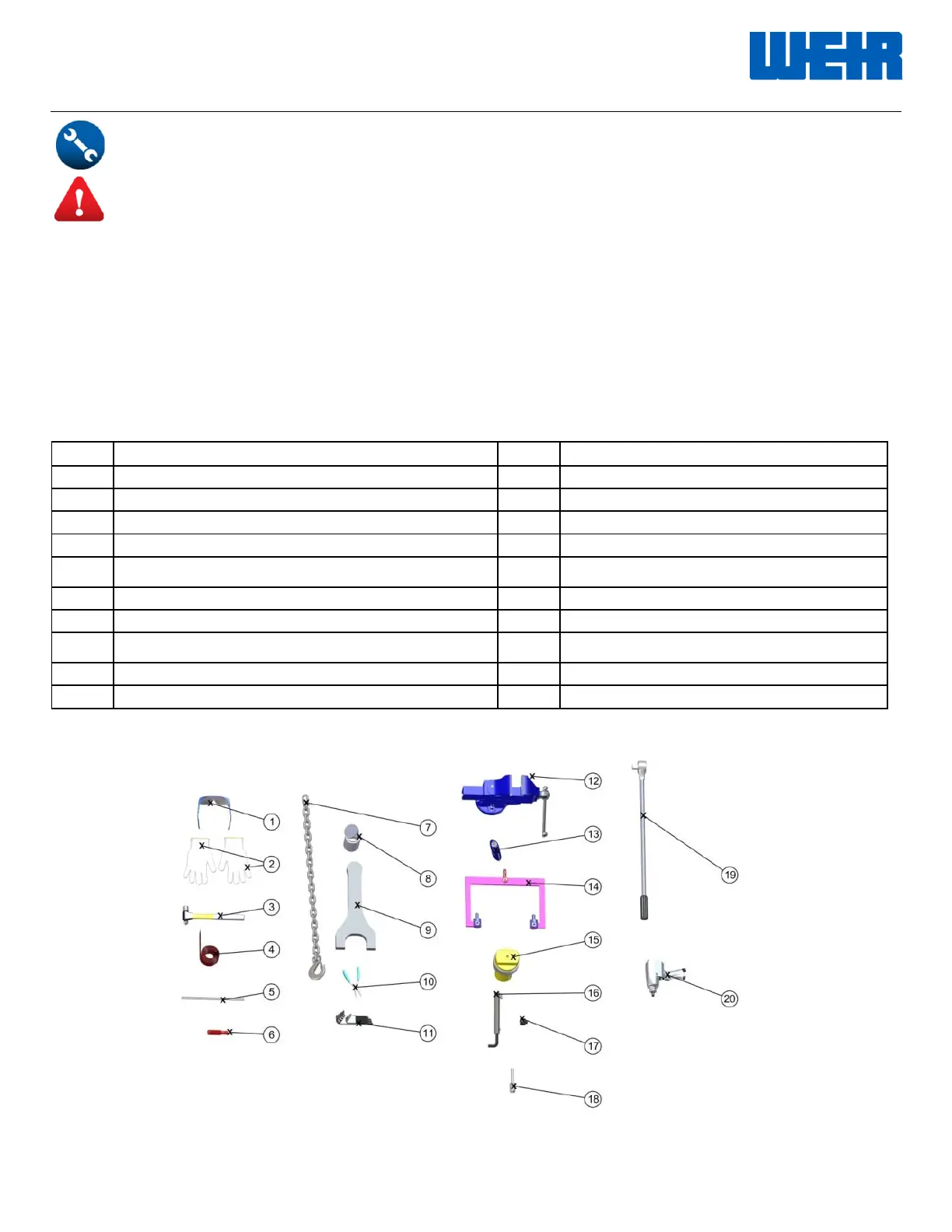

ID REQUIRED TOOLS ID REQUIRED TOOLS
1
SAFETY GLASSES 11 STANDARD ALLEN WRENCH SET
2
PROTECTIVE GLOVES 12 VISE WITH ALUMINUM JAWS
3
2 LB HAMMER 13 BLUE LOCTITE 242 OR EQUIVALENT
4
600 GRIT SAND PAPER 14 FLANGE LIFTING TOOL, 2A41047
5
1/2" ALUMINUM BAR 15
DUMMY SEAT FOR TESTING RELIEF VALVE BODY,
2P41038
6
SCREWDRIVER (FLAT TIP) 16 WRENCH EXTENSION, 2P24505
7
HOIST AND CHAIN - 500 LBS. RATING MIN 17 15/16” SOCKET 1/2" DRIVE
8
LPS LAB #02910 COPPER BASED ANTI-SEIZE OR
EQUIVALENT
18 1/2” IMPACT ALLEN SOCKET
9
ASSEMBLY TORQUE TOOL, 2P39525 19 1/2” TORQUE WRENCH (10 – 100 FT LBS), P24509
10
NEEDLE NOSE PLIERS 20 IMPACT WRENCH
