Part Number: 2A33687
Release Date: 8/27/2015
Revision: B
38
Assembly:
WARNING: THIS MAINTENANCE SECTION IS TO BE ONLY PERFORMED BY A QUALIFIED Weir Oil
& Gas SERVICE TECHNICIAN!

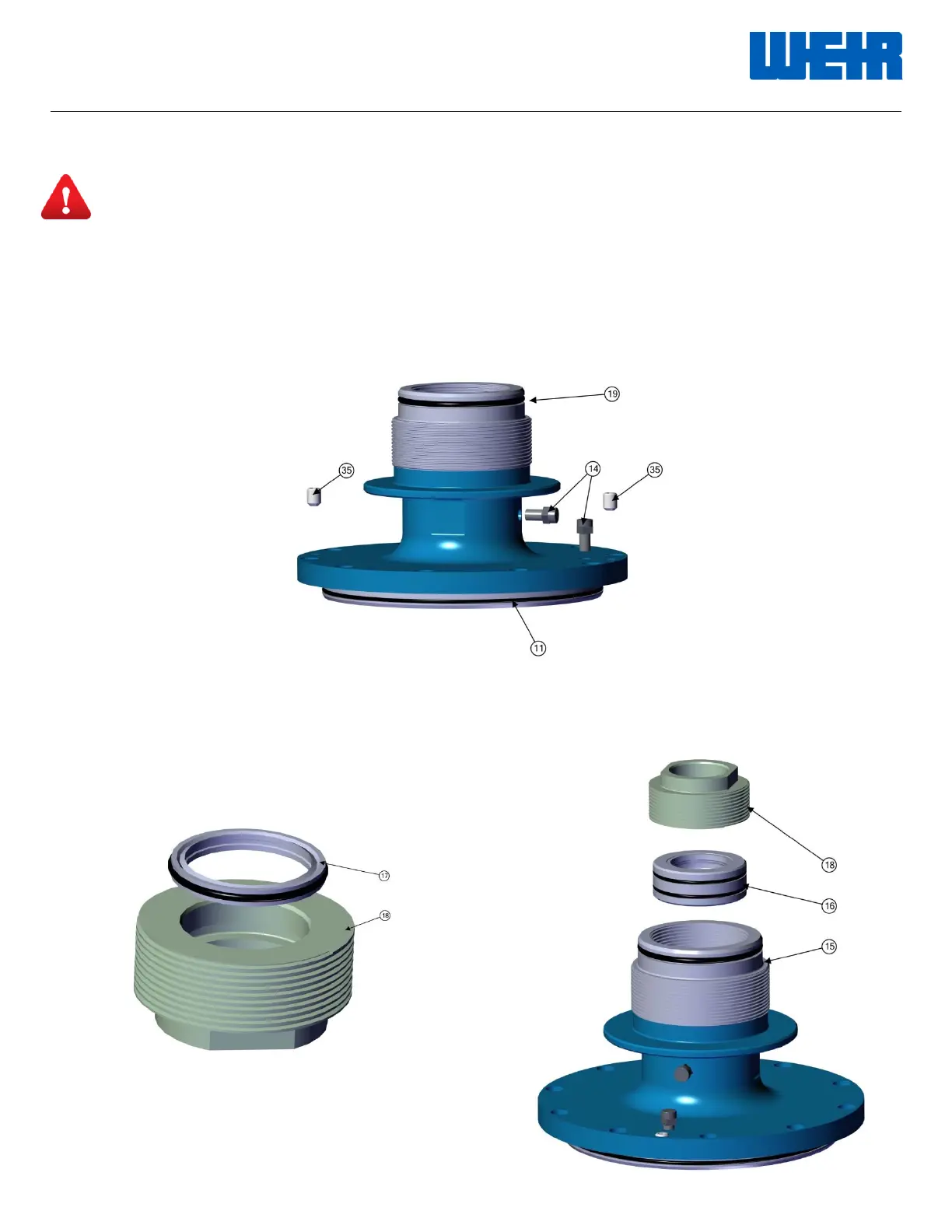

STEP 1:
Install Set Screws (35) into Flange with a small amount of anti-seize. Ensure that Set Screws do not protrude
opposite side of Flange (20). Install Flange O-Ring (19) on Flange O-Ring Sealing pocket with small amount of
oil. Install Flange packing (17) into the Flange pocket inside the Flange Bore. A small amount of oil as lubricant
will assist the install. Wrap Teflon tape over threads of Breather Vents (14) and install into the Flange. Install
Flange O-Ring (11).
Install Rod Wiper (17) into Packing Nut (18) as shown. Insert Packing Assembly (16) into Flange (15). Tighten
Packing Nut (Coat Packing Nut, Packing and Flange Bore with Oil to assist in the installation.)
To Next Page
