Part Number: 2A33687
Release Date: 8/27/2015
Revision: B
32
Preventative Maintenance: Replacement and Assembly of Metal Sealing
Components
See “ALWAYS REMEMBER” Section on page 17 before assembly.
The reassembly of the valve is in approximate reverse order to the disassembly process.
Lightly lubricate all surfaces prior to assembly.
OBSERVE ALL INSTRUCTIONS, CAUTIONS, AND WARNINGS AS NOTED IN THIS MANUAL.
FAILURE TO DO SO CAN LEAD TO EQUIPMENT DAMAGE AND PERSONAL INJURY OR DEATH!
STEP 1

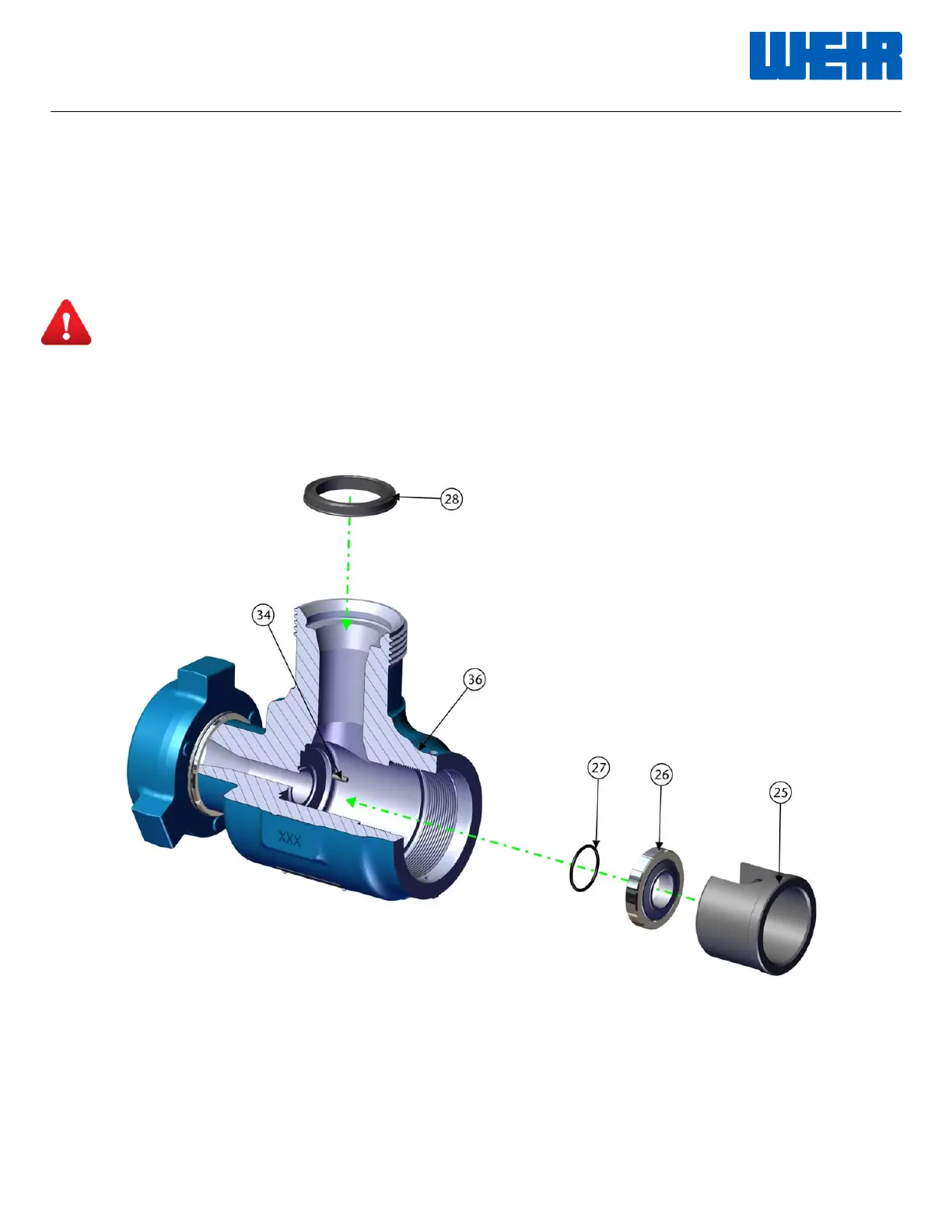

Install new O-ring (27) into O-ring groove feature in valve body (36). Slip new or polished nozzle assembly (26)
into the valve body. Install spider (25) into the valve body aligning with dowel pins (34) ensuring it is flush to the
nozzle assembly (26) and aligned with the discharge on the valve body (36). Install new union seal (28) in body
(36).
