Part Number: 2A33687
Release Date: 8/27/2015
Revision: B
33
Preventative Maintenance: Replacement and Assembly Metal Sealing
Components (Cont.)
STEP 2

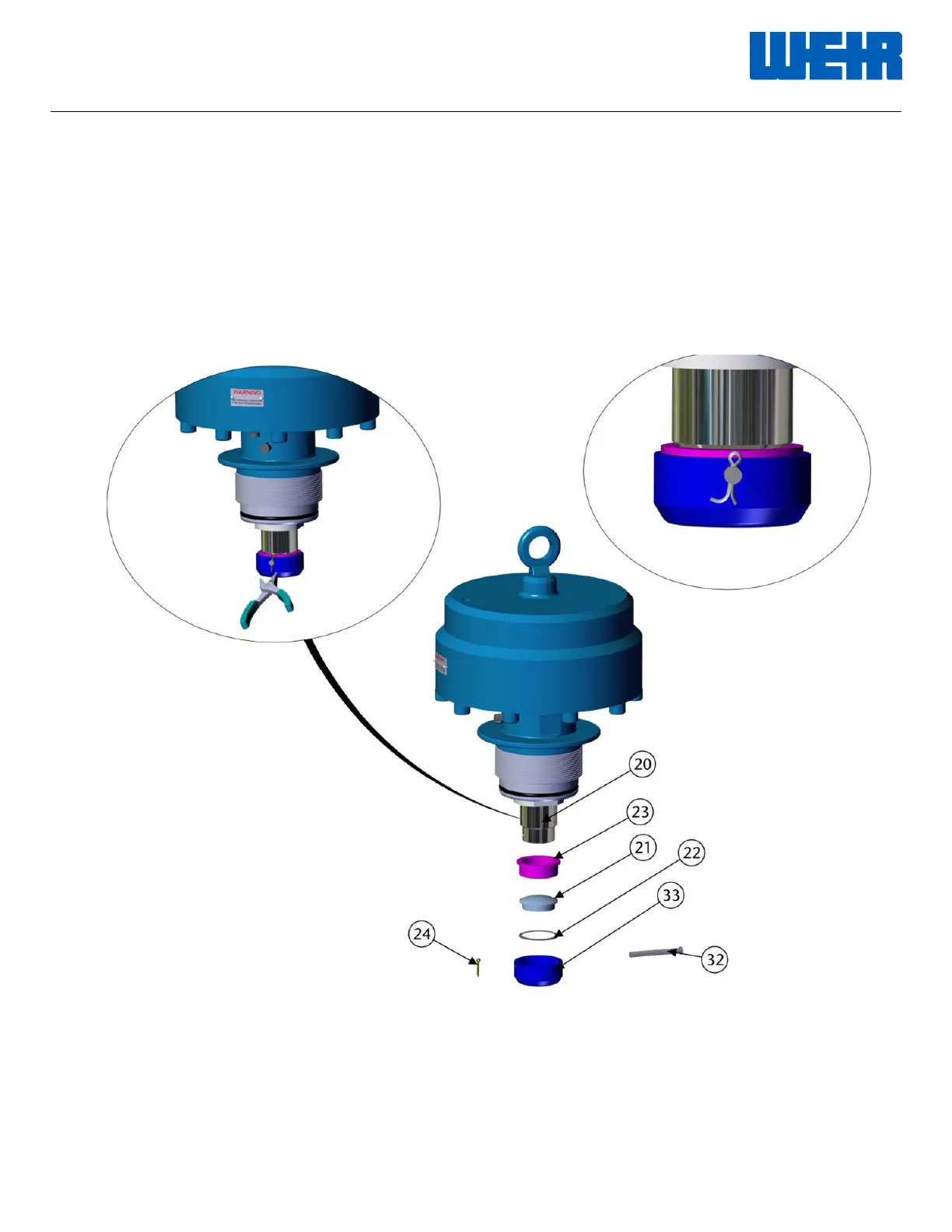

Insert new or polished valve gate (21) into spring retainer (33) and fit over the wave spring (22). Install
the bushing (23) into the spring retainer (33). Install assembly (23), (21), (22), and (33) onto cylinder
rod (20). Then install clevis pin (32) into assembly, then install cotter pin (24). Bend cotter pin (24) with
pliers once installed to prevent pin from falling out.
