Part Number: 2A33687
Release Date: 8/27/2015
Revision: B
34
Preventative Maintenance: Replacement and Assembly Metal Sealing
Components (Cont.)
STEP 3

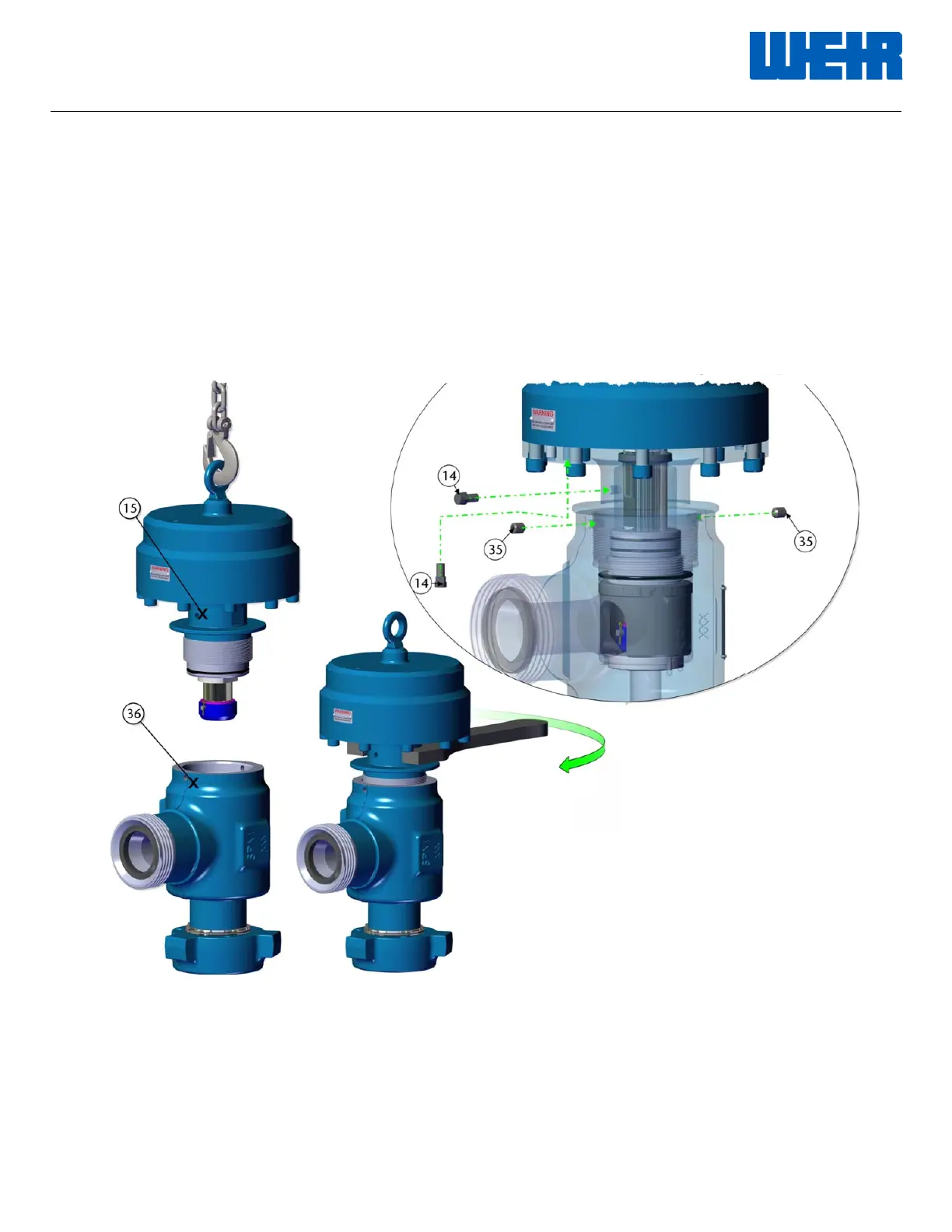

Install cylinder/ flange assembly (15) into valve body (36) by gently lowering hoist and threading clockwise. Use
assembly torque tool (SPM
®
2P39525) to tighten threads until they bottom out. Use a hammer to strike the tool
two times to ensure it is bottomed out.
Insert two set screws (35) into valve body to hold flange in place. Install both breather vents into the side of
flange (14).
To Next Page
