STEP 4:

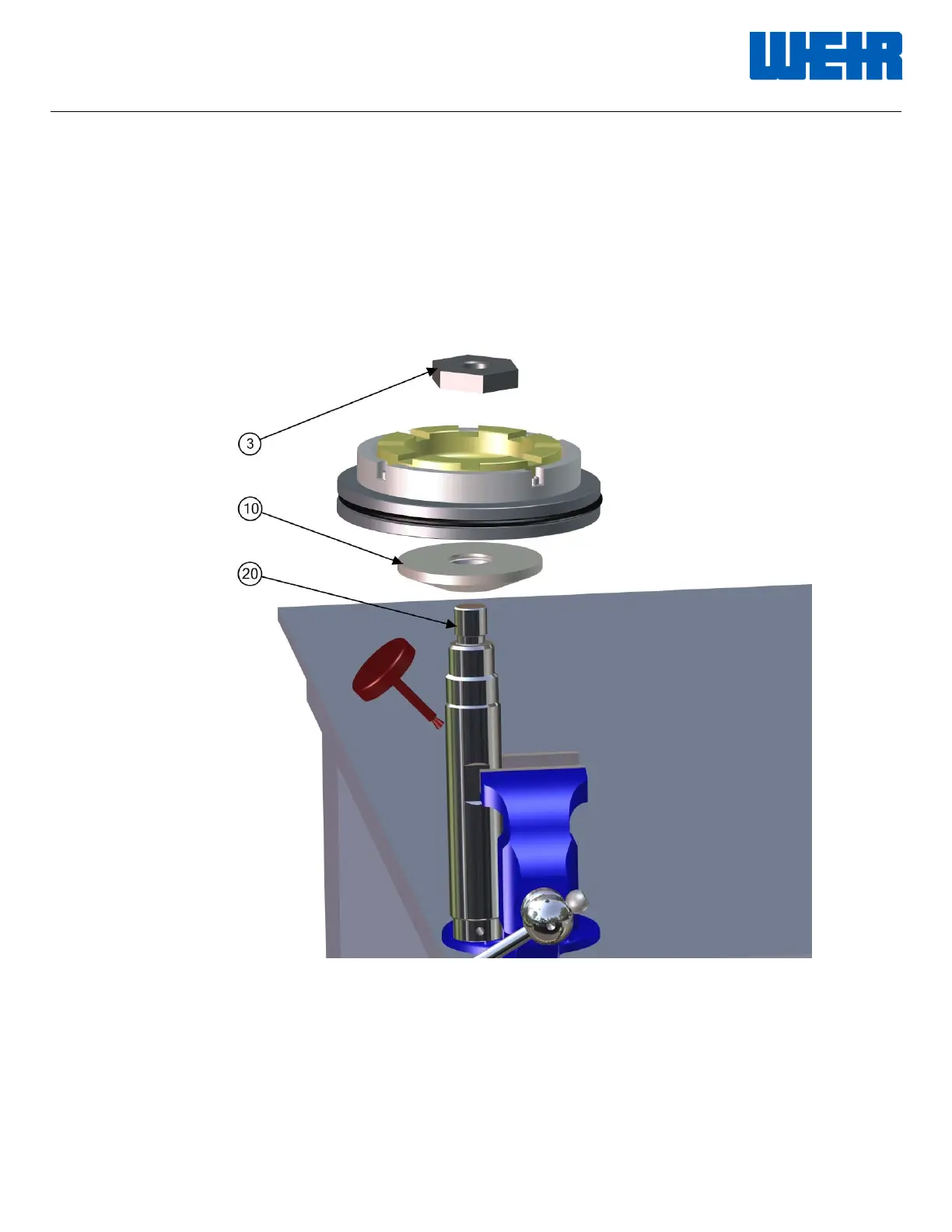

Secure the cylinder rod (20) vertical in a vise using flats at its length. Install the spacer (10) on the rod

(20). Install Top Assembly as assembled in Step 2. Secure the piston (7) and bumper (4) assembly by

the hex nut (3) with blue Loctite 242 or equivalent. Lubricate cylinder rod (20) before inserting any

components. Tighten Bumper Nut (3) with Socket (P39545). Once assembled remove from Vise and

proceed to Step 4.
