Weir SPM EXL User Manual

Part Number: 2A33687
Release Date: 8/27/2015
Revision: B
43

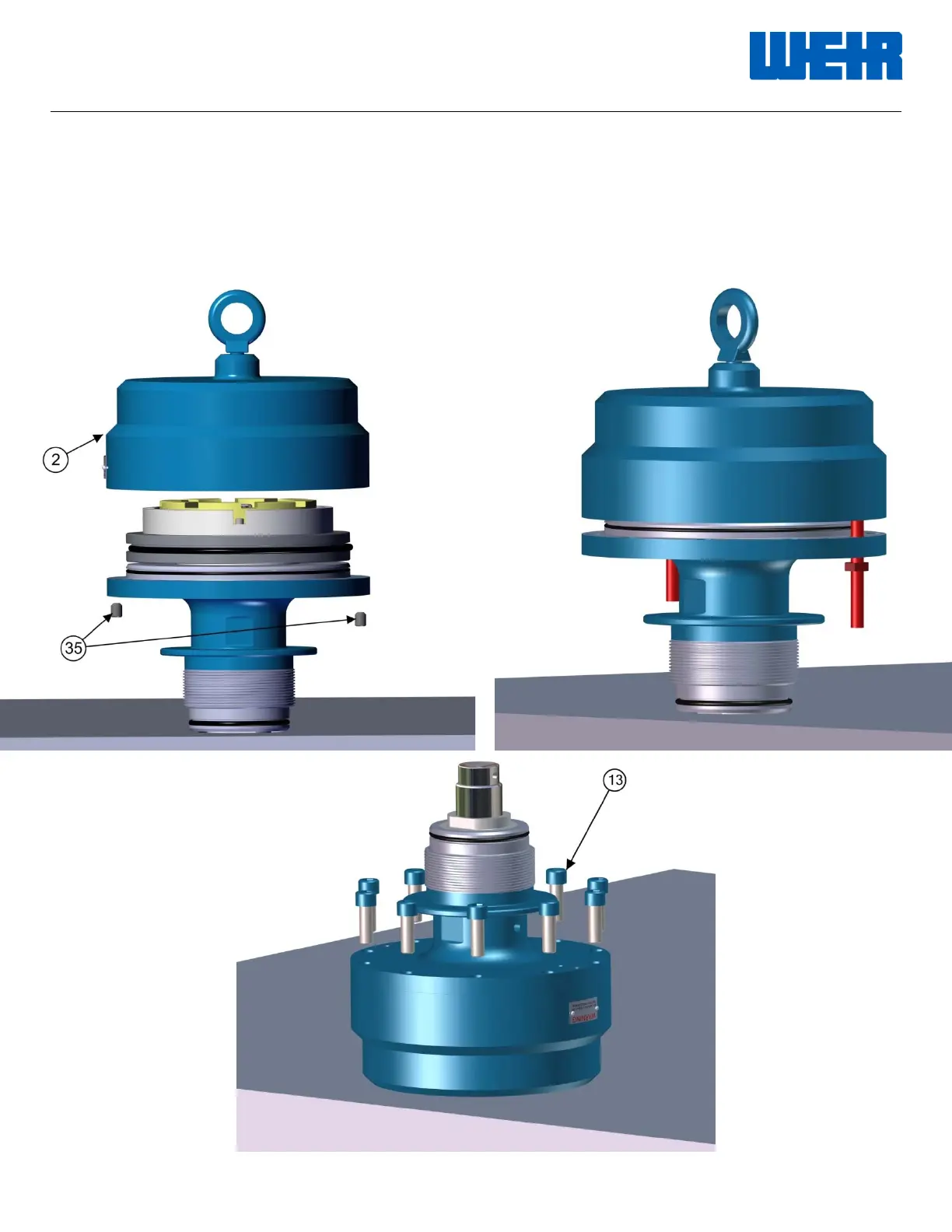

STEP 6:
Remove Flange Hex bolts (35) and position place the Cylinder (2) onto the Flange Assembly as
shown. Utilizing a Screw Nuts (5/8-11 UNC) to assist in bringing the Cylinder flush with the Flange
Body. Once completed re-install Flange Hex bolts into Flange and flip Assembly over to install the
Fasteners (13). Apply Anti-Seize to threads. Use Impact to tighten all screws
