Weishaupt WG20-/1-C LN Series User Manual

Installation and operating instruction
Gas burner WG20…/1-C LN
7 Commissioning
83240802 1/2020-01 La
40-96

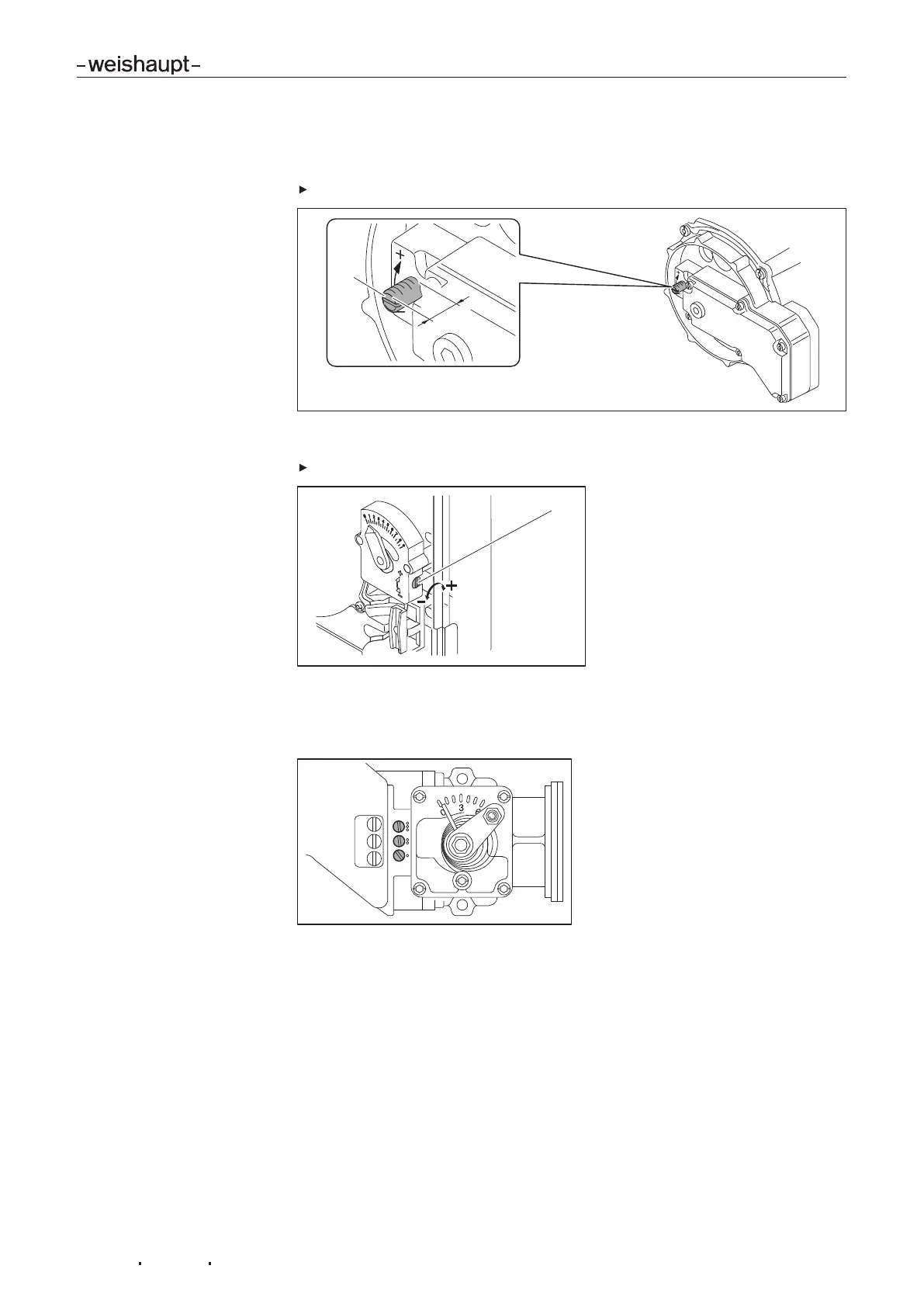

Set diffuser
With dimension X = 0mm the indicating bolt is flush with nozzle assembly cover.
Turn screw 1, until dimension X equals the value determined.
1
X
Set air damper
Turn setting screw 1 until the scale shows the value determined.
1
Gas butterfly valve setting screw
The factory setting of gas butterfly valve screws 1 ... 3 must not be altered.
Factory setting: 3 rotations OPEN.
3
2
1
