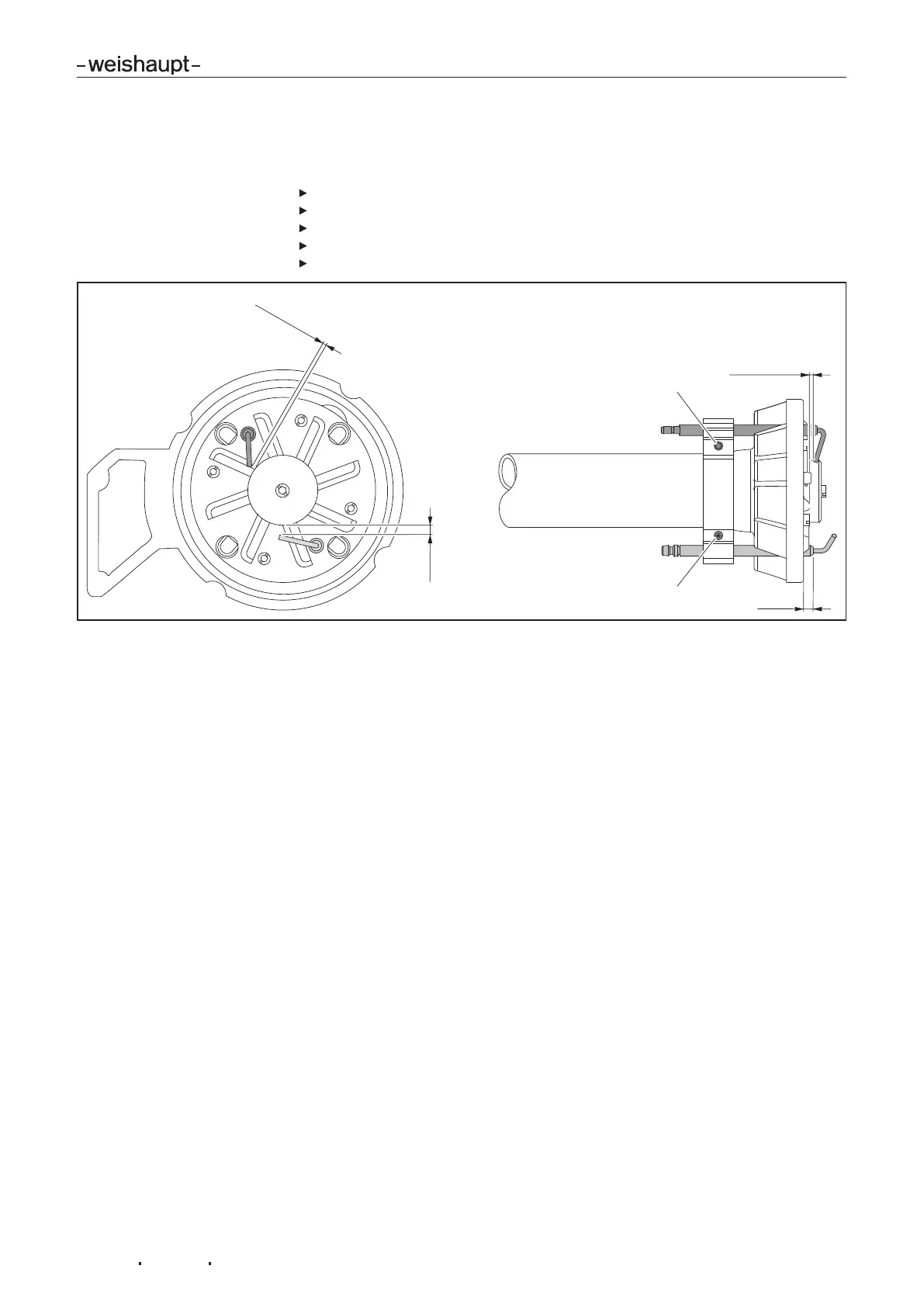

9.5 Set ionisation and ignition electrodes
Observe notes on servicing [ch.9.1].
Remove mixing head [ch.9.3].
Undo screw 1.
Set ignition electrode and re-tighten screw.
Undo screw 2.
Set ionisation electrode and re-tighten screw.
5 mm
5 mm
1.5 ... 2 mm
1.5 ... 2 mm
1
2
