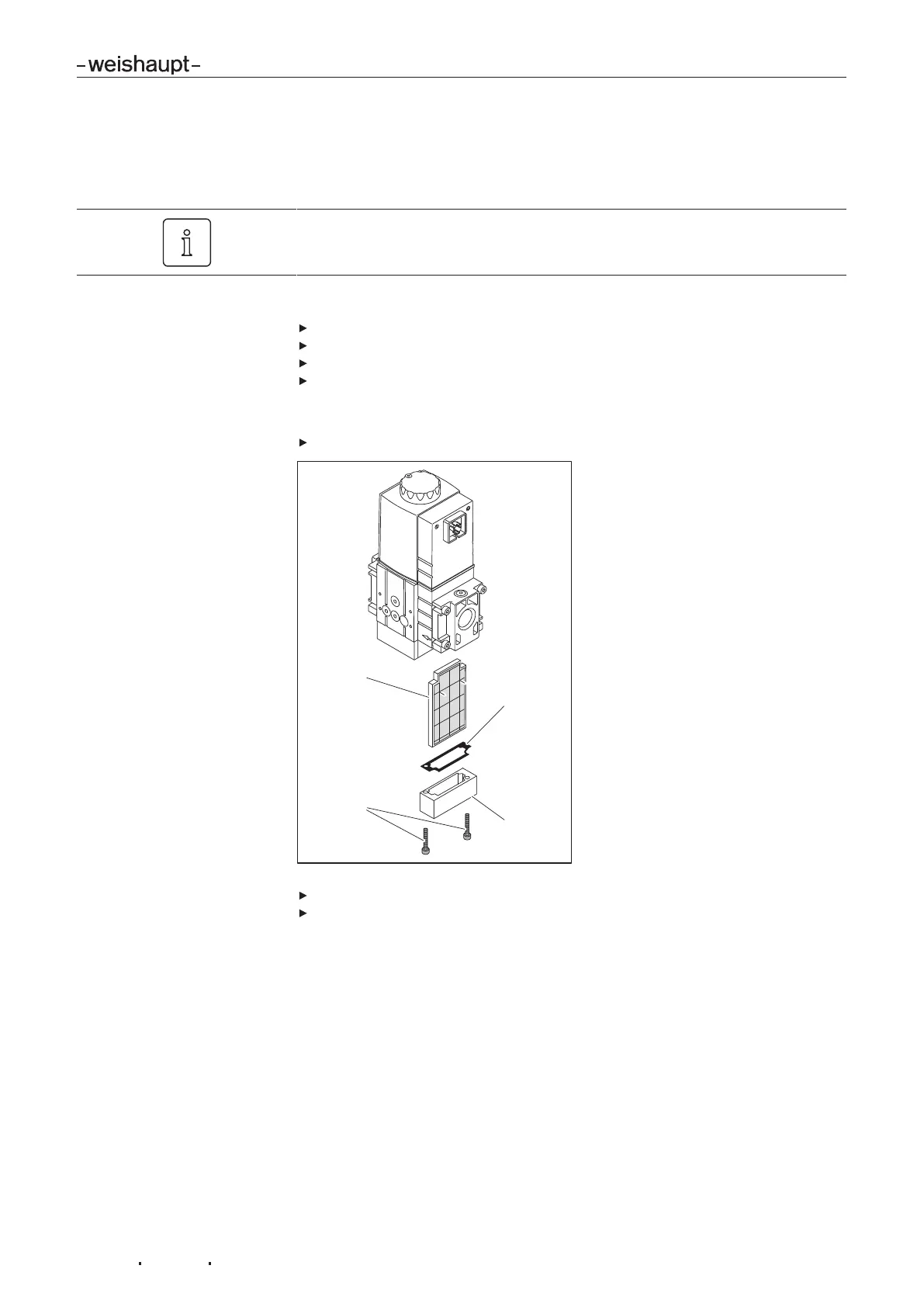

9.15 Removing and refitting filter insert of multifunction
assembly
Observe notes on servicing [ch.9.1].
Ensure no dirt enters the multifunction assembly when removing and replacing the
filter insert.
Removing
Remove screws4.
Remove cover3.
Remove filter insert1.
If necessary replace filter insert1 and seal2.
Refitting
Refit in reverse order ensuring correct alignment of filter1 and seal 2.
1
4
2
3
Carry out soundness test [ch.7.1.3].
Vent gas valve train [ch.7.1.4].
