Weishaupt WGL30/1-C ZM User Manual

Installation and operating instruction
Dual fuel burner WGL30/1-C ZM
6 Operation
83260202 1/2019-02 La
44-144

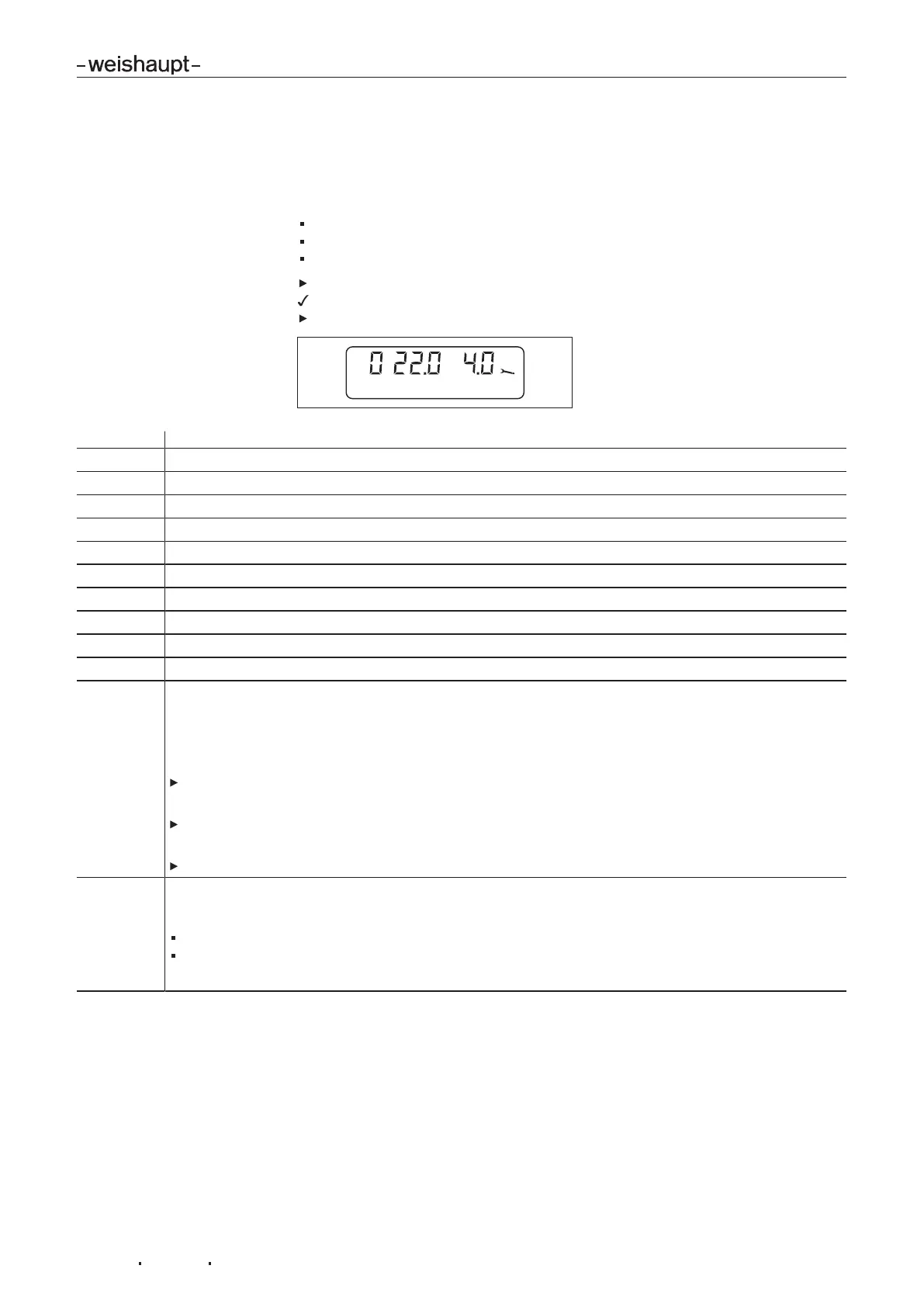

6.2.2 Service level
Gas operation
The service level gives information about:
Actuator position of the individual operating points,
the most recent fault,
flame signal during burner operation.
Press [Enter] for approx. 2 seconds.
The service level is activated.
Press [Enter] to reach the next information.
No. Information
0 Actuator position in operating point P0
1 Actuator position in operating point P1
2 Actuator position in operating point P2
3 Actuator position in operating point P3
4 Actuator position in operating point P4
5 Actuator position in operating point P5
6 Actuator position in operating point P6
7 Actuator position in operating point P7
8 Actuator position in operating point P8
9 Actuator position in operating point P9
10 … 18 Fault memory
most recent fault … ninth last occurred fault
Display additional information:
1. Detailed error codes / operating status:
Press[+] key.
2. Detailed error codes:
Press [–] and [+] keys simultaneously.
Repetition counter:
Press key [G].
19 Flame Signal
Range: 00 … 58
< 50: poor quality
50 … 58: high quality
recommended value: > 50
After information19 or a waiting time of approx. 20 seconds the combustion man-
ager changes over to the operating level.

Weishaupt WGL30/1-C ZM Specifications

General

Burner type	Gas burner
Fuel type	Natural gas
Electrical connection	230 V, 50 Hz
Control Type	Electronic
Ignition Type	Electronic ignition
Protection Class	IP 40
Gas pressure	20 mbar
Thermal Output	150-300 kW
Flame Supervision	Ionisation
