Weishaupt WGL30/1-C ZM User Manual

Installation and operating instruction
Dual fuel burner WGL30/1-C ZM
7 Commissioning
83260202 1/2019-02 La
51-144

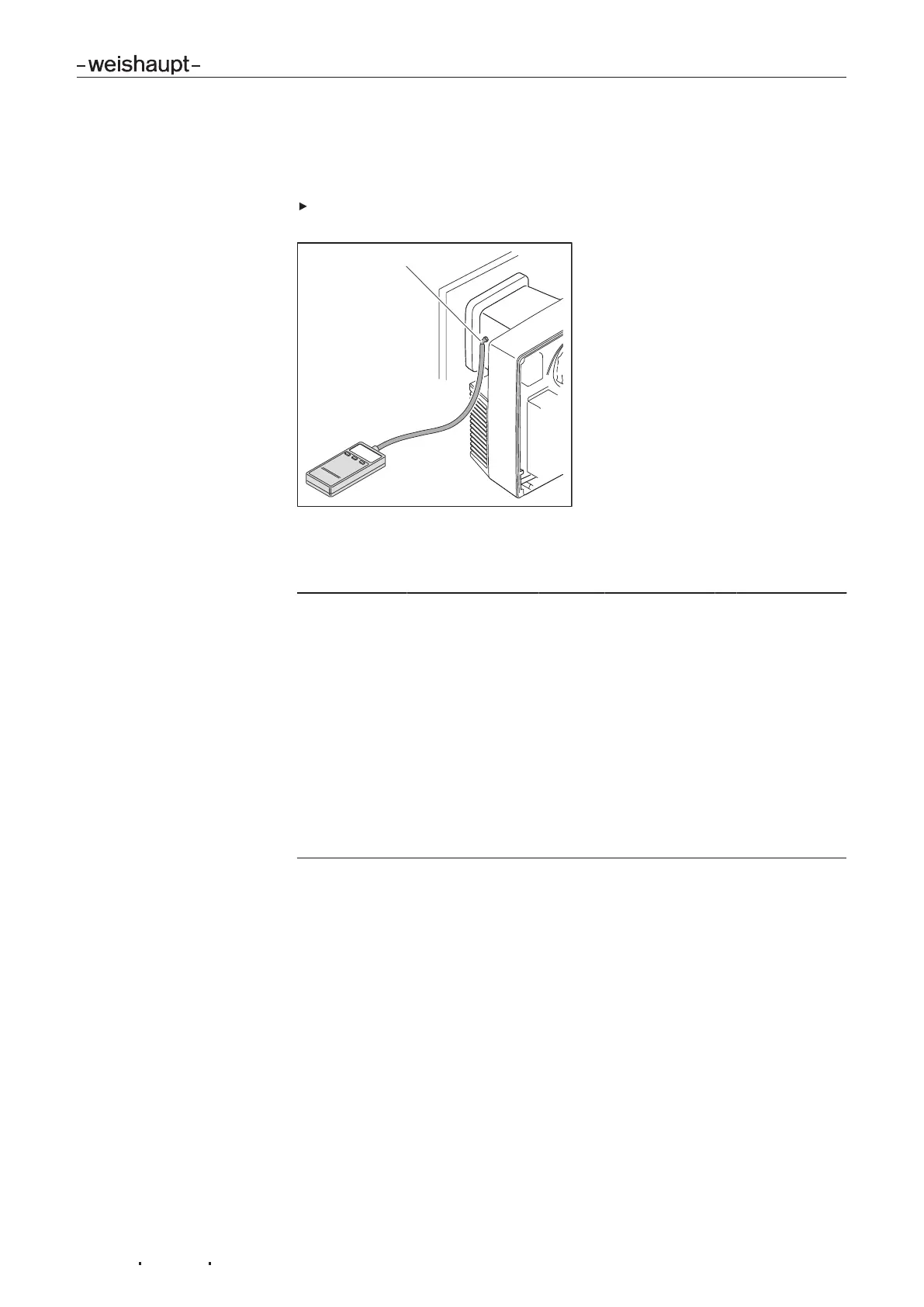

7.1.1 Connect measuring devices
Pressure measuring device for mixing pressure
Open pressure test point for mixing pressure1 and connect pressure measur-
ing device.
1
Guide values for mixing pressure
Partial load Mixing pres-
sure
(1
Full load Mixing pres-
sure
(1
70 … 170 kW 1 … 4 mbar 125 kW 3 … 4 mbar
140 kW 4 … 5 mbar
160 kW 6 … 7 mbar
180 kW 7 … 9 mbar
200 kW 8 … 10 mbar
220 kW 9 … 11 mbar
240 kW 9 … 11 mbar
260 kW 8 … 10 mbar
280 kW 8 … 9 mbar
300 kW 8 … 9 mbar
320 kW 8 … 9 mbar
340 kW 8 … 9 mbar
(1
Guide values, which could deviate depending on combustion chamber resist-
ance.

Weishaupt WGL30/1-C ZM Specifications

General

Burner type	Gas burner
Fuel type	Natural gas
Electrical connection	230 V, 50 Hz
Control Type	Electronic
Ignition Type	Electronic ignition
Protection Class	IP 40
Gas pressure	20 mbar
Thermal Output	150-300 kW
Flame Supervision	Ionisation
